Design and function
56 © Festo Didactic Conveyor
5.5 Assembly
5.5.1 Assembly of an CP application module
NOTICE
The procedure of attaching the CP application module to a basic module is the same as
with all basic modules. The following description for the attachment to a basic module
CP Lab Conveyor is an example for all basic modules and all application modules.
Positioning slot nuts in the cross profiles of the basic module CP Lab Conveyor
Mounting the CP application module is very easy:
 Two M5-slot nuts (2) have to be put into the inner front slot of the cross profile (4) of the basic module
CP Lab Conveyor.
 Then put two additional M5-slot nuts (2) into the inner back slot of the cross profile (3) of the basic
module CP Lab conveyor.
 Then you have to position the slot nuts (2) approximately to the distance of the vertical cross profiles of
the CP application module.

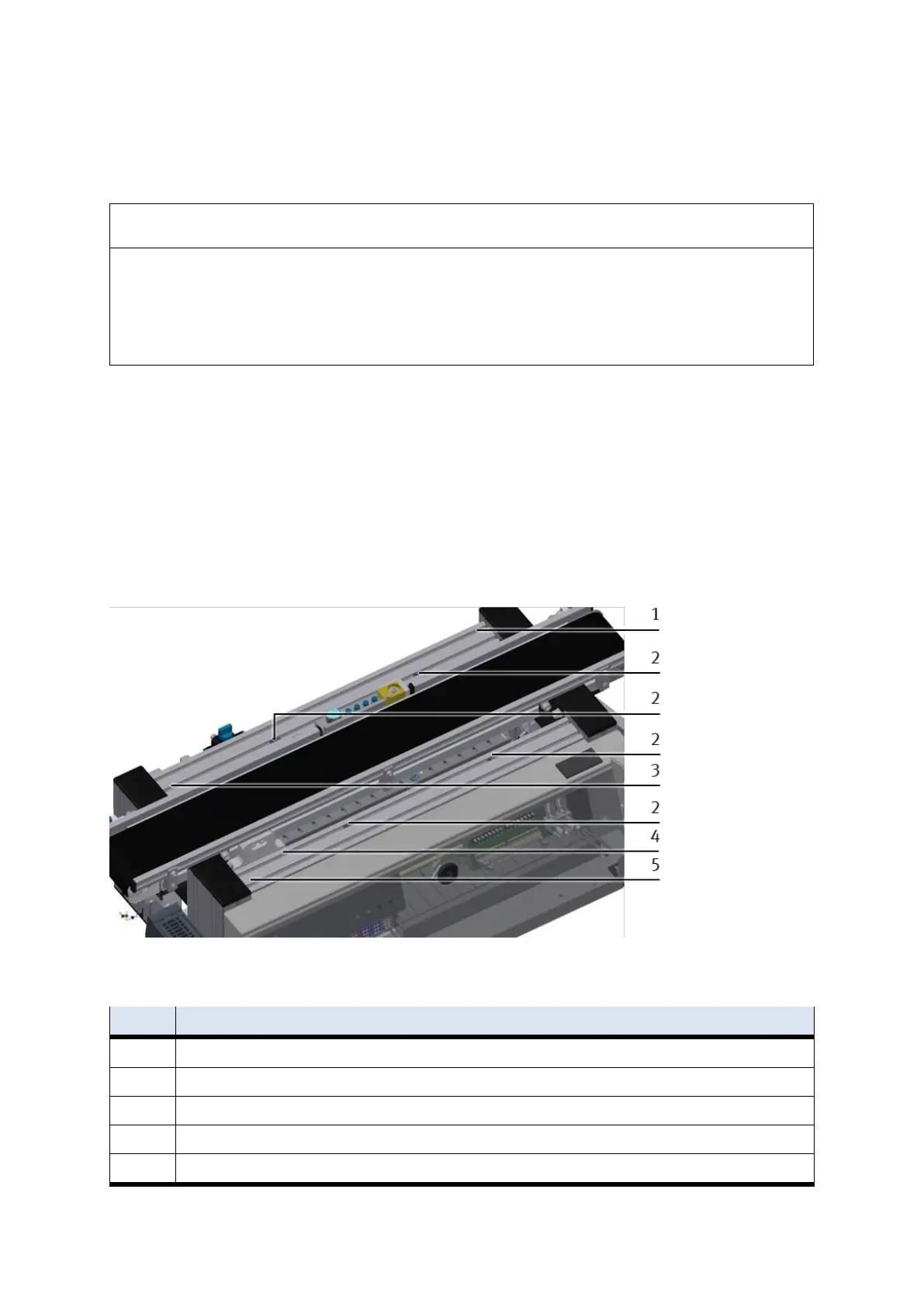

Positioning slot nuts
Position
Description
1
back cross profile
2
slot nut
3
Inner slot (back cross profile)
4
Inner slot (front cross profile)
5
front cross profile
