Festo CP Lab - Control Systems

Components
98 © Festo Didactic Conveyor
7.2.1 Control systems
The control unit regulates all processes as well as the communication in the CP Lab conveyor. Different
control systems can be used.
It is possible that a I/O Terminal is installed instead of an controller.

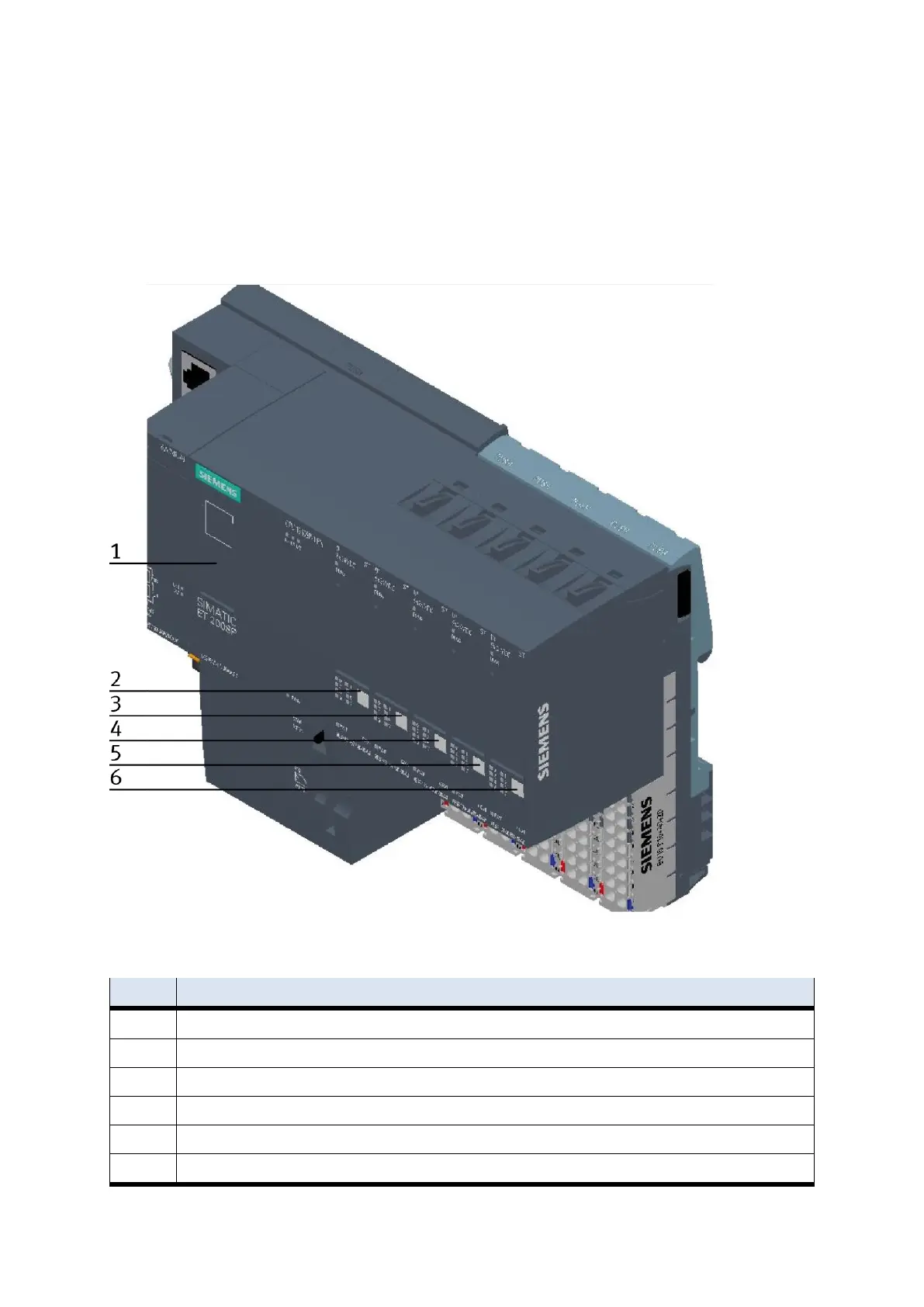

ET200SP with CPU1512
ET200 SP
Position
Description
1
ET200SP / CPU1512SP F-1PN / K1-KF1 / 6ES7512-1SK00-0AB0
2
DI / 8x 24VDC / K1-KF2 / 6ES7131-6BF00-0CA0
3
DI / 8x 24VDC / K1-KF3 / 6ES7131-6BF00-0CA0
4
DO / 8x 24VDC 0,5A / K1-KF4 / 6ES7132-6BF00-0CA0
5
DO / 8x 24VDC 0,5A / K1-KF5 / 6ES7132-6BF00-0CA0
6
CM / 4x IO-Link ST / K1-KF6 / 6ES7137-6BD00-0BA0
