5.6.1 Electrical Commissioning
Now the CP Lab conveyor has to be supplied with electric power (24V). The external power supply has to be
connected as follows:
0V to XZ2 clamp 1
24V to XZ2 clamp 2
PE to XZ2 clamp 4
The appliances are connected to the other corresponding clamps.

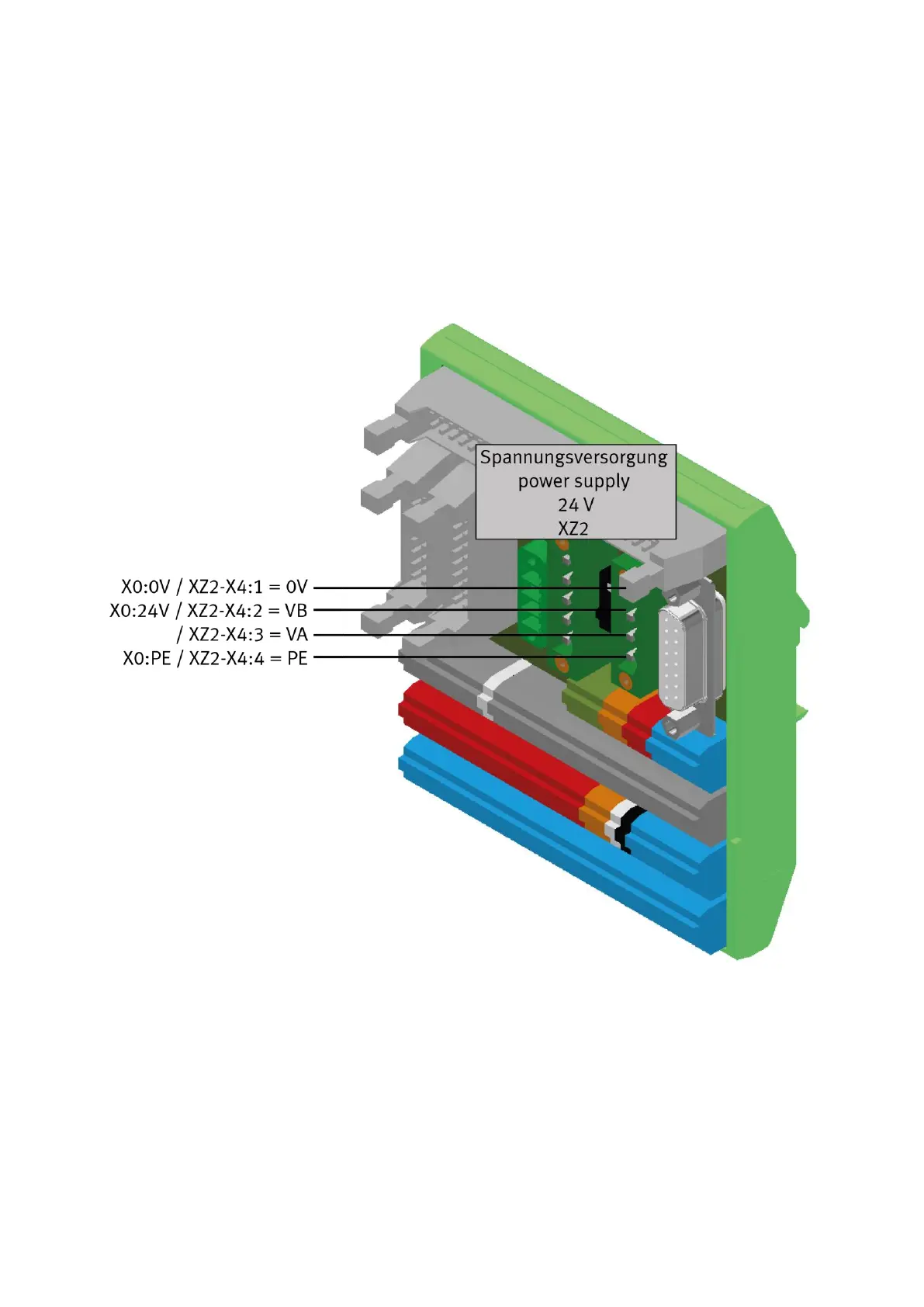

Wiring the CP Lab conveyor
