Design and function
64 © Festo Didactic Conveyor
5.6.2 Modus switch
Independent if the Festo Didactic IO-Link-DA-Interface is used as IO-Link-Device or an field bus node, the

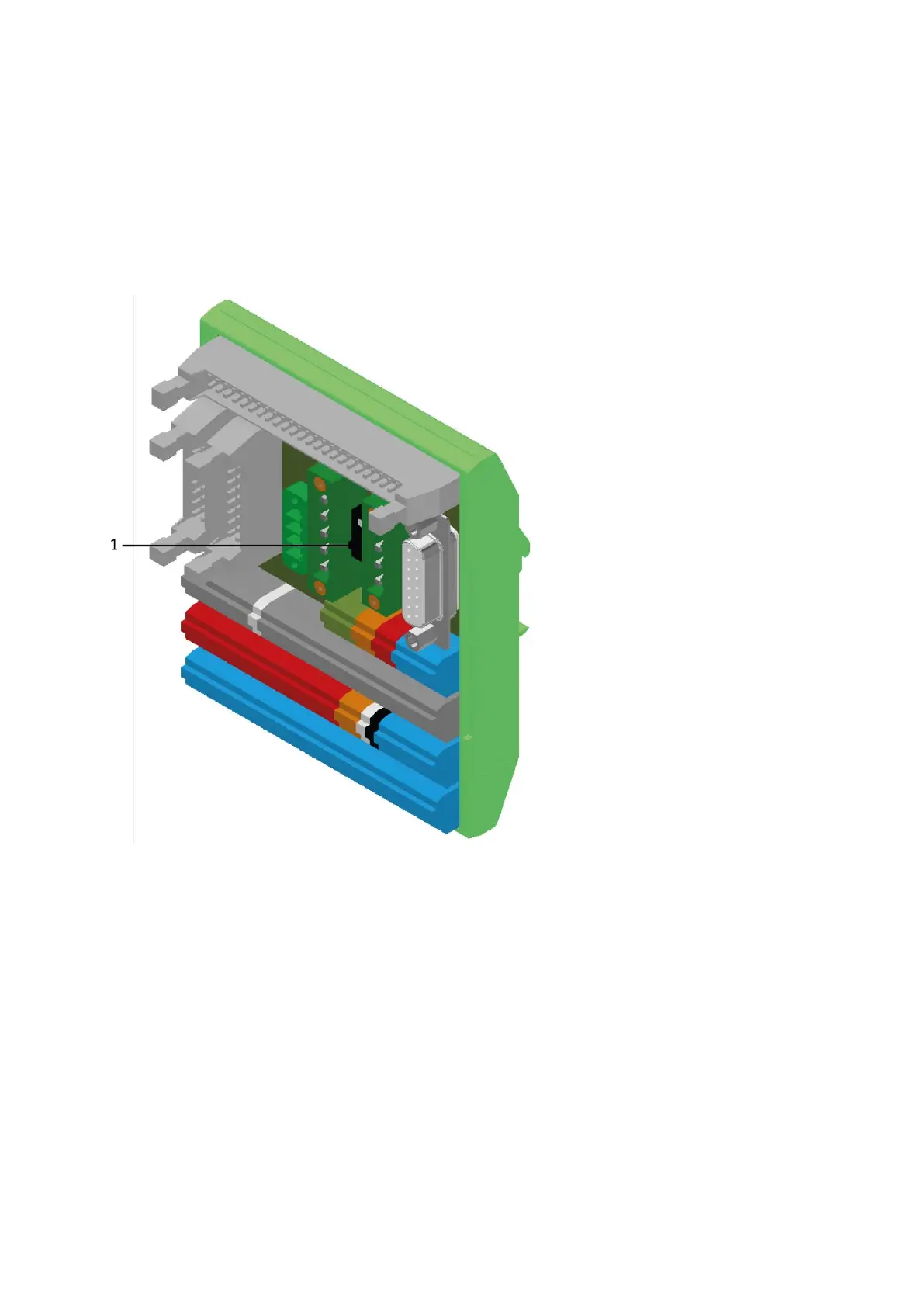

wiring of the I-Port-interface hast to be changed. This is done by the circuit board:
Switch position:
Lower position 1=CTEU: A field bus node can be set on the Festo Didactic IO-Link-DA-Interface.
Upper position 2= IO-Link: The Festo Didactic IO-Link-DA-Interface is used as an IO-Link-device.
