Components
102 © Festo Didactic Conveyor
7.2.3 Solenoid valve

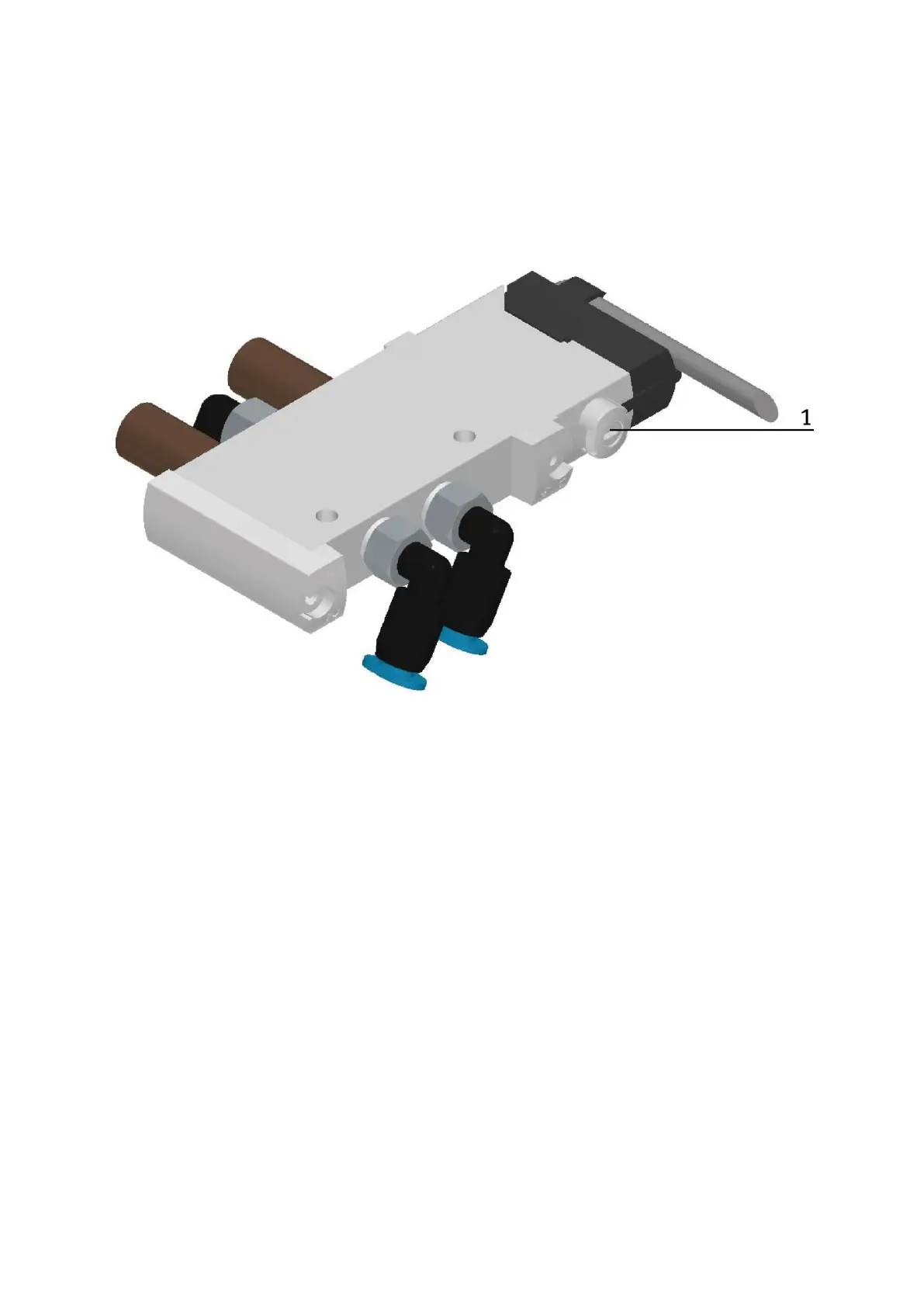

The solenoid valve controls the cylinder of the stopper unit. The solenoid valve has got a manual override
(see pos.1).
When you press it (non-locking), the cylinder drives the stopper unit down as long as you press it. When you
press the manual override and turn it (locking), the cylinder drives down with long-lasting effect.
Solenoid valve 574351 / VUVG-L10-M52-MT-M5-1P3
