Design and function
60 © Festo Didactic Conveyor
5.5.3 Connecting the CP application module electrically to basic module CP Lab Conveyor
SysLink-interface for digital signals
NOTICE
With special variants of the basic module CP Lab Conveyor, you absolutely have to observe
the corresponding operation instructions of the basic module CP Lab Conveyor!
The CP application module exchanges digital input and output signals with the basic module via the
SysLink interface:
 Connect the I/O terminal (2) of the CP application module with the control (3) of the basic module CP
Lab Conveyor. Therefore use the connecting cable with SysLink plugs (5) which has already been
attached to the control and is led out on the back side of the basic module CP Lab Conveyor.

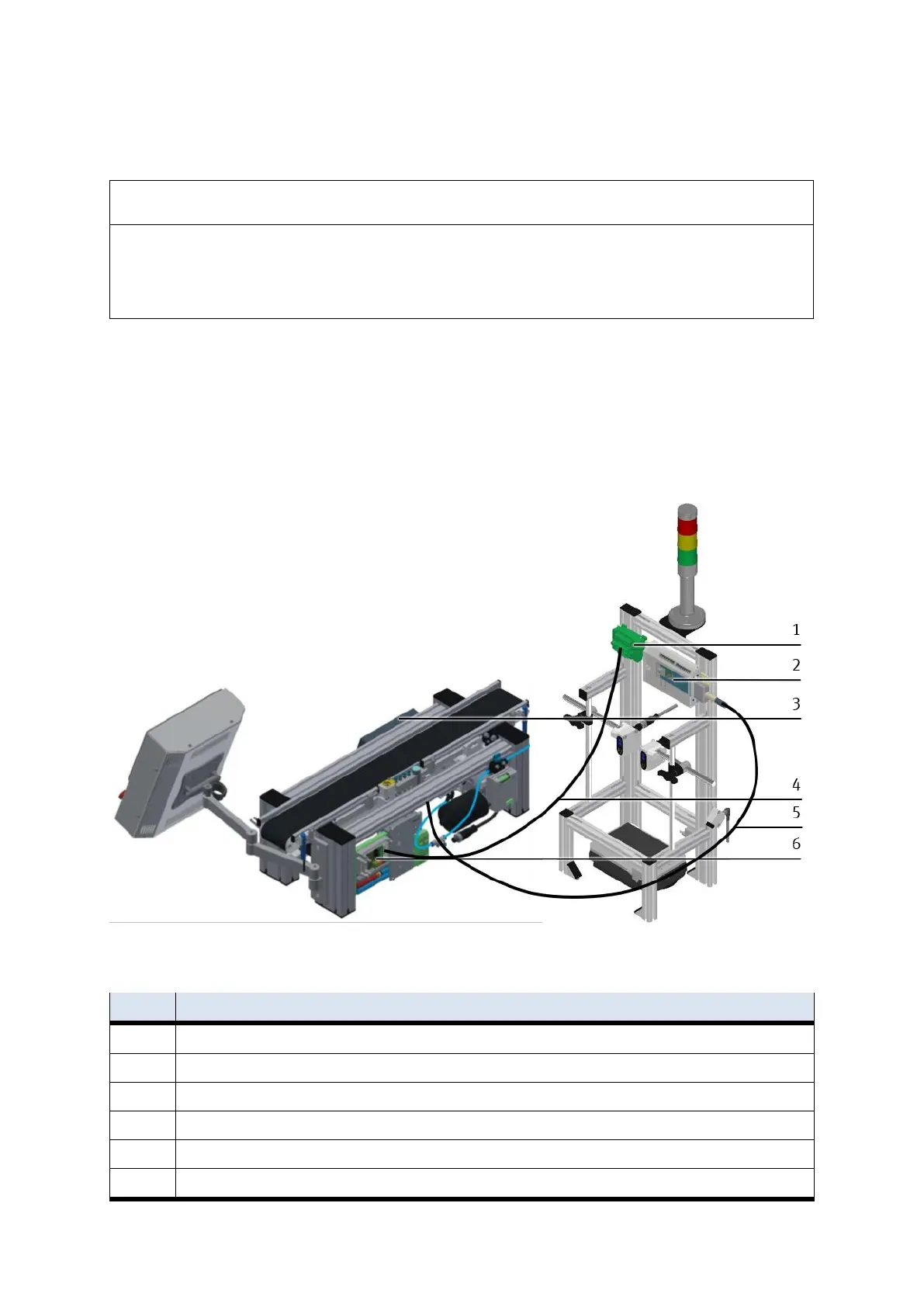

Electrical connections
Position
Description
1
CP application module: analogue terminal (+BG-XD2A)
2
CP application module: I/O terminal (+BG-XD1)
3
basic module CP Lab Conveyor: control or decentralized periphery
4
connecting cable with15-pin standard D-Sub-plugs
5
connecting cable with a SysLink-plug (SysLink-cable)
6
basic module CP Lab Conveyor: board at the back (+G1-XZ2)
