Design and function
© Festo Didactic Conveyor 61
D-Sub-interface for analogue signals
The CP application module produces two analogue output signals with the distance sensors. These are put
on the analogue terminal (1) and must be connected with the analogue inputs of the basic module:
 Connect the analogue terminal (1) of the CP application module with the D-Sub-interface for analogue
signals (6) on the rear board of the basic module CP Lab Conveyor. Therefore use the provided
connecting cable (4) with standard D-Sub plugs: 15-pin, two-rowed.

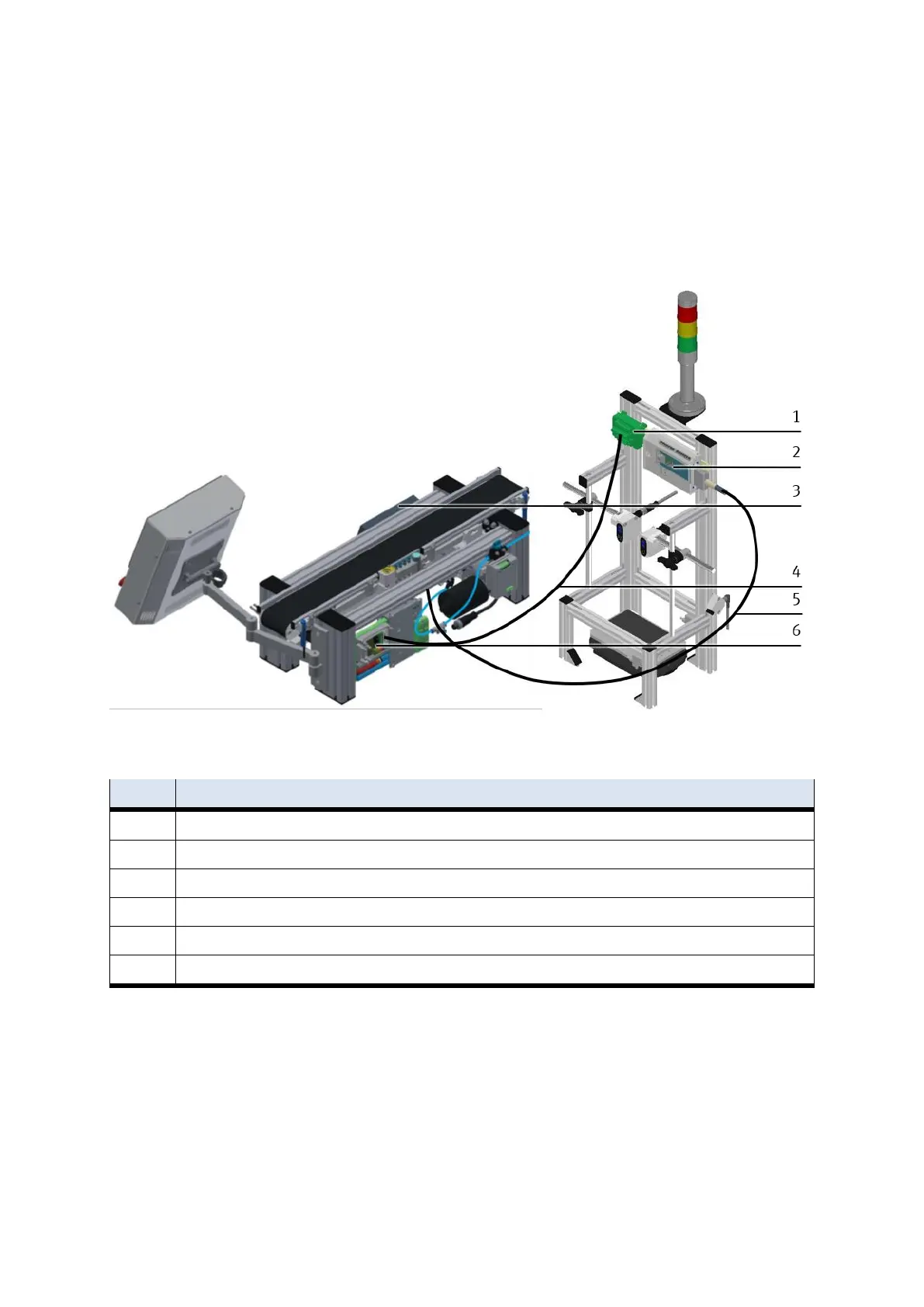

Electrical connections
Position
Description
1
CP application module: analogue-terminal (+BG-XD2A)
2
CP application module: I/O terminal (+BG-XD1)
3
basic module CP Lab Conveyor: control or decentralized periphery
4
connecting cable with 15-pin standard D-Sub-plugs
5
connecting cable with a SysLink-plug (SysLink-cable)
6
basic module CP Lab Conveyor: board at the back (+G1-XZ2)
