7.1.4 RFID Read/Write system
The RFID read-write head describes and/or reads the data from a RFID data storage medium which is located
on the bottom of the carrier. Any information concerning the workpiece can be read or transmitted.
The read-write head is directly connected to the I/O link of the ET200SP.

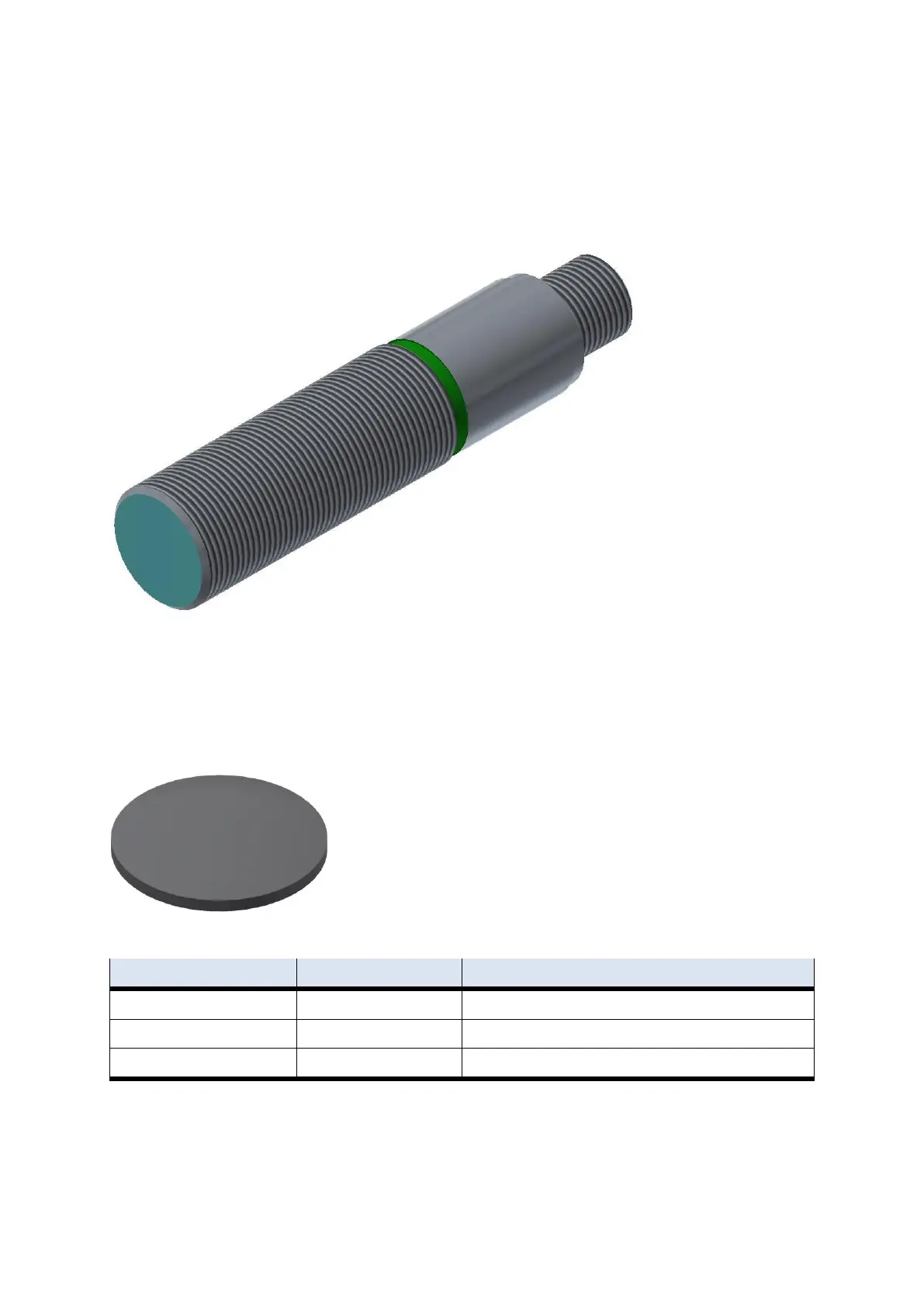

Read-write head RF210R IO-Link
There are 2 different read / write heads which are addressed differently in the software, this must be
considered.
Reader RF210R, order number 6GT2821-1AC32 with interface IO-Link V1.0
Reader RF210R, order number 6GT2821-1BC32 with interface IO-Link V1.1
TW-R16-B128 RFID data storage medium
Clamp read-write head
Cable
I/O Link
TF1:1 / 24 V
XTF1:1 / BN
XG1/X12:1 - L+
TF1:3 / 0V
XTF1:3 / BU
XG1/X12:3 - L-
TF1:4 / Data
XTF1:4 / BK
XG1/X12:2 - C/Q
