terminals. The order number is 8038559.

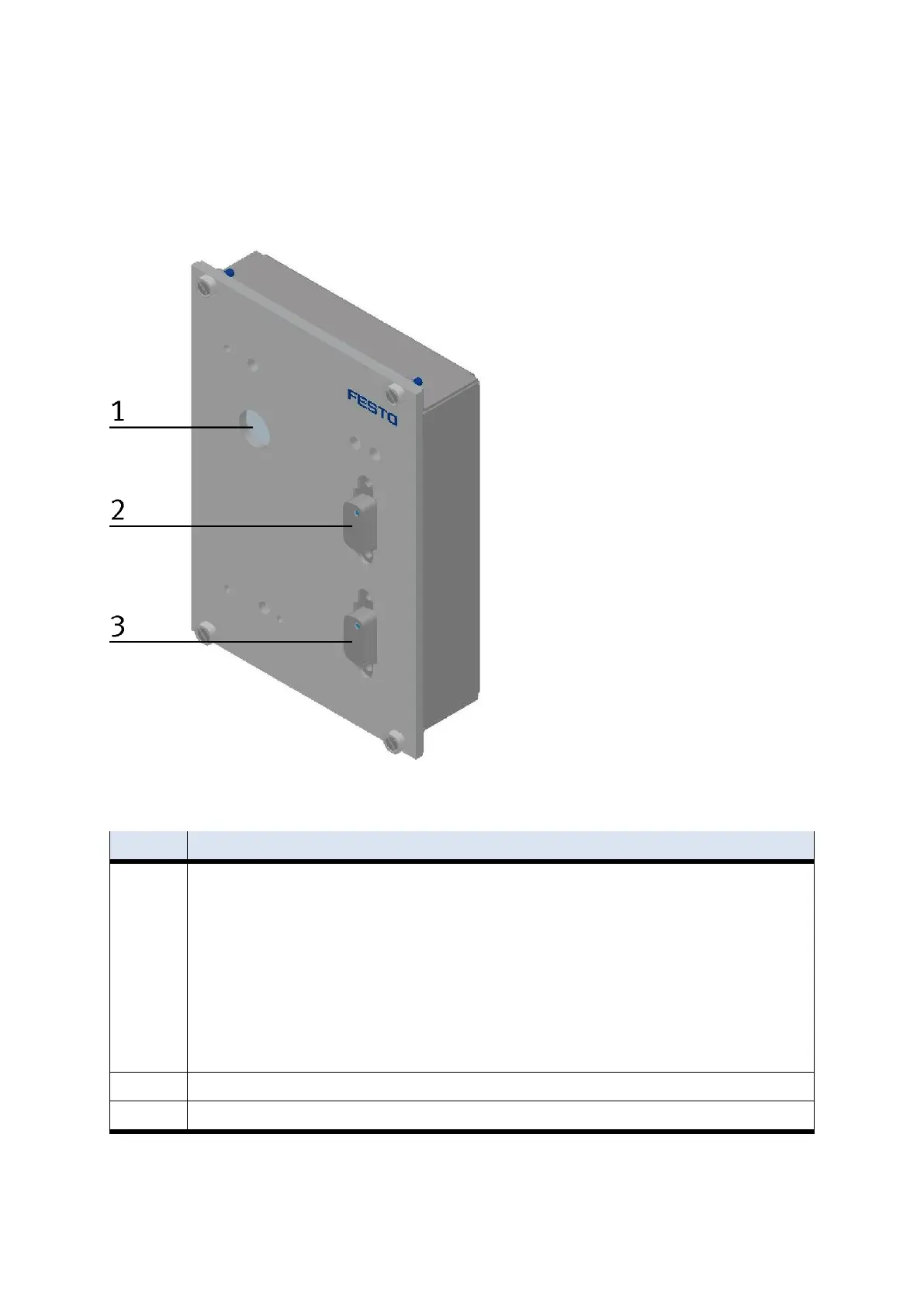

I-Port –here the data are transmitted to the I/O link of the ET200SP. It is possible to remove the 5 pole cable and to
replace it by an adapter plug. With the help of the CTEU bus knot it will be possible to adapt different bus systems to
the system.
The following bus systems are available presently: PN, PB, CC-Link, CAN, DeviceNet, Ether Cat
The allocation of the 5 pole cable is as follows:
Clamp 1 – 24 VB / cable has a brown stranded wire
Clamp 2 – 24 A / cable has a white stranded wire
Clamp 3 – OVB / cable has a blue stranded wire
Clamp 4 – Data / cable has a black stranded wire
Clamp 5 – OVA / cable has a grey stranded wire
