Festo CP Lab - Connectivity Interfaces: SYS Link, RFID, and IO-Link

Components
94 © Festo Didactic Conveyor

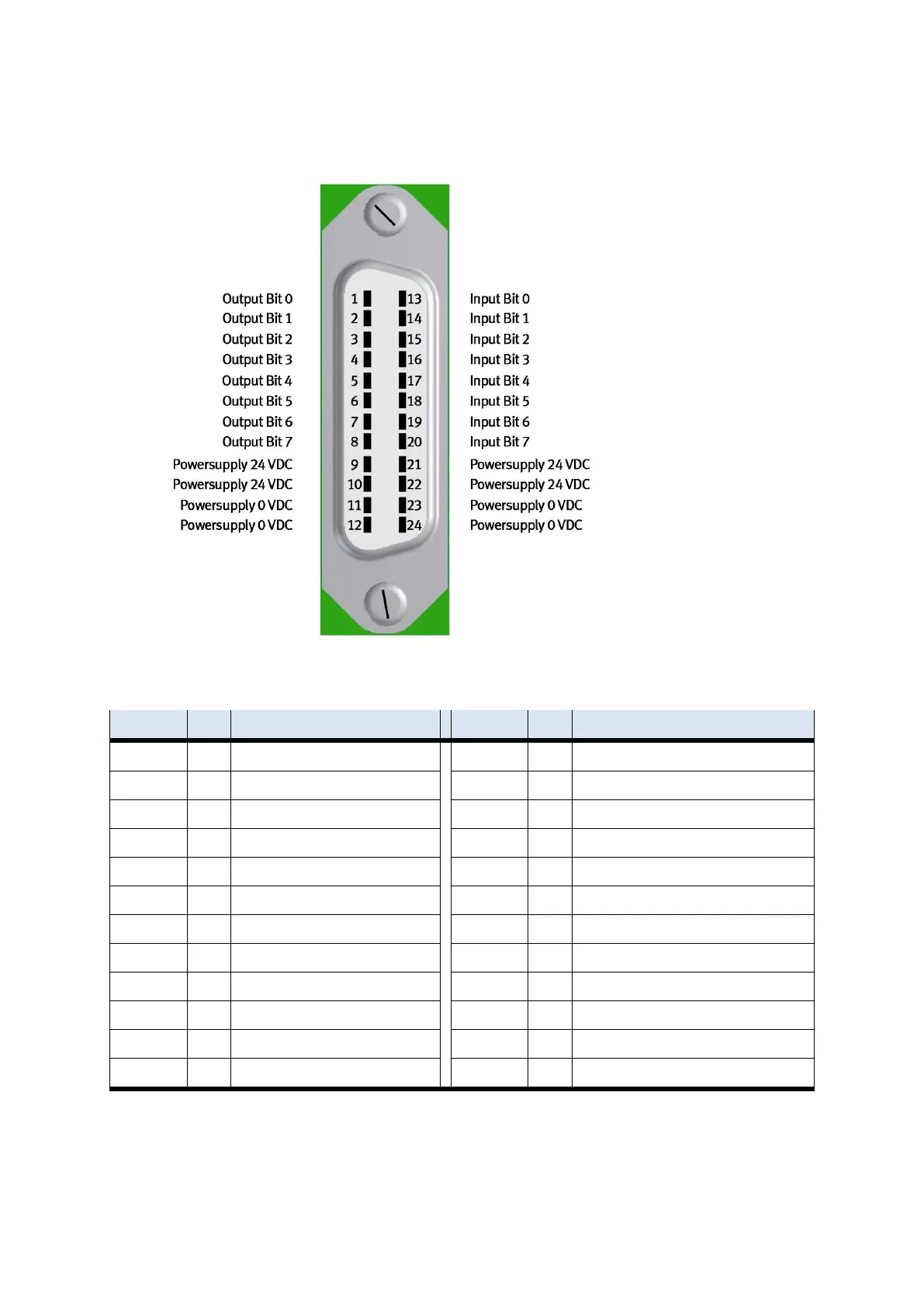

7.1.3 SYS link Cable - Interface
Syslink – allocation
SYSlink PIN
Bit
Name
Syslink PIN
Bit
Function
01
0
Output AX.0
13
0
Input EX.0
02
1
Output AX.1
14
1
Input EX.1
03
2
Output AX.2
15
2
Input EX.2
04
3
Output AX.3
16
3
Input EX.3
05
4
Output AX.4
17
4
Input EX.4
06
5
Output AX.5
18
5
Input EX.5
07
6
Output AX.6
19
6
Input EX.6
08
7
Output AX.7
20
7
Input EX.7
09
24V
Power supply
21
24V
Power supply
10
24V
Power supply
22
24V
Power supply
11
0V
Power supply
23
0V
Power supply
12
0V
Power supply
24
0V
Power supply
