7 Components

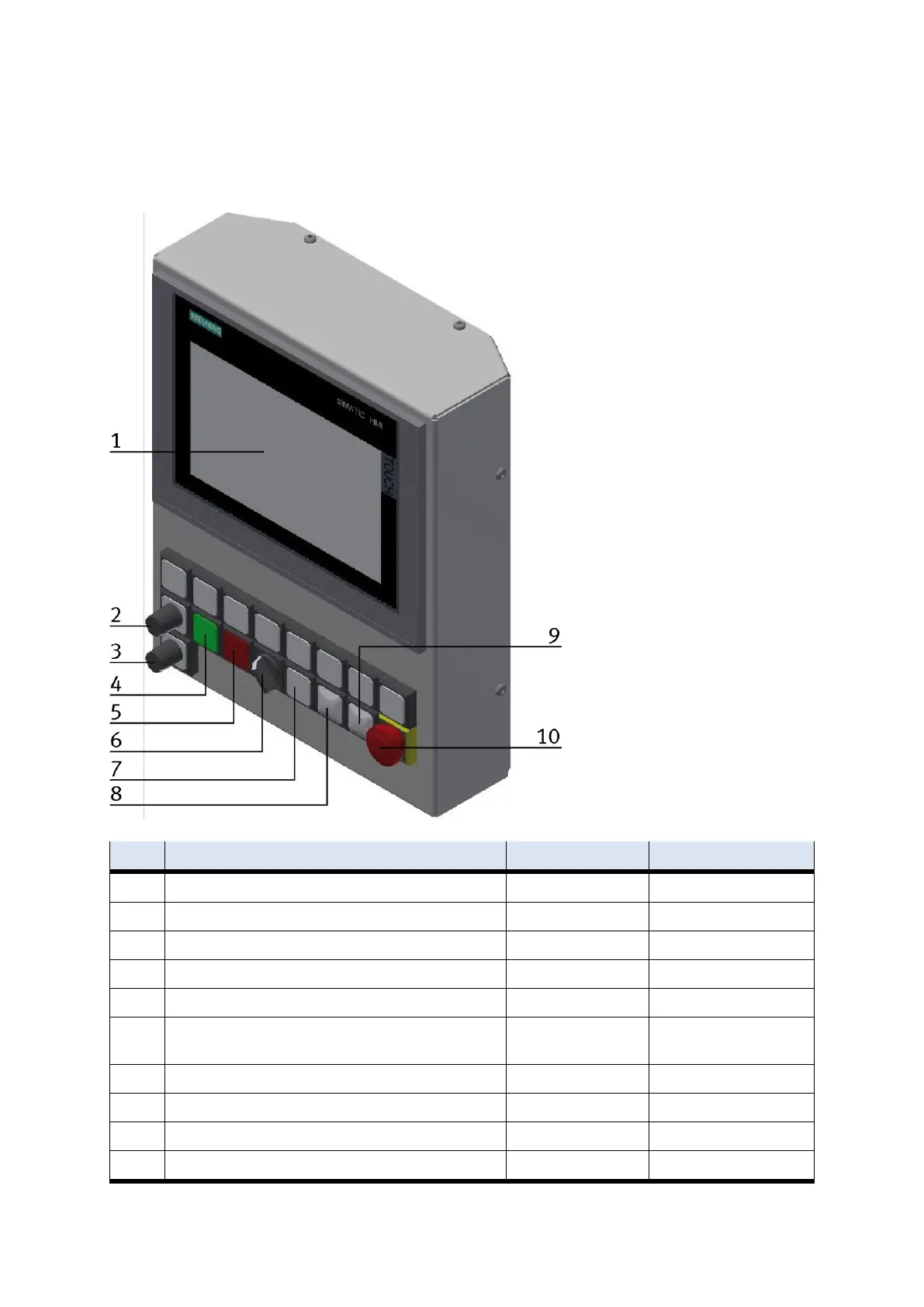

7.1 Touch panel
You control the system with the touch panel. The upper control row is optionally available.
Position
Description
X2 Sub D 15 pole/ input
X2 Sub D 15pole /output
1
Touch screen
2
Potentiometer RA1
3
Potentiometer RA2
4
START illuminated push-button green / button SF1/ light PF1
SF1 / X2: 1 / I0
PF1 / X2: 2 / Q0
5
STOP button red /button SF2
SF2 / X2: 3 / I1
6
Locking selector switch (no further allocation in the system
programme)
SF3 / x2: 5 / I2
7
RESET illuminated push-button white / button SF4 / light PF2
SF4 / X2: 7 / I3
PF2 / X2: 4 / Q1
8
Q1 indicator light white / light PF3
PF3 / X2: 6 / Q2
9
Q2 indicator light white / light PF4
PF4 / X2: 8 / Q3
10
Emergency Stop / button SF5 – at M12 panel plug
