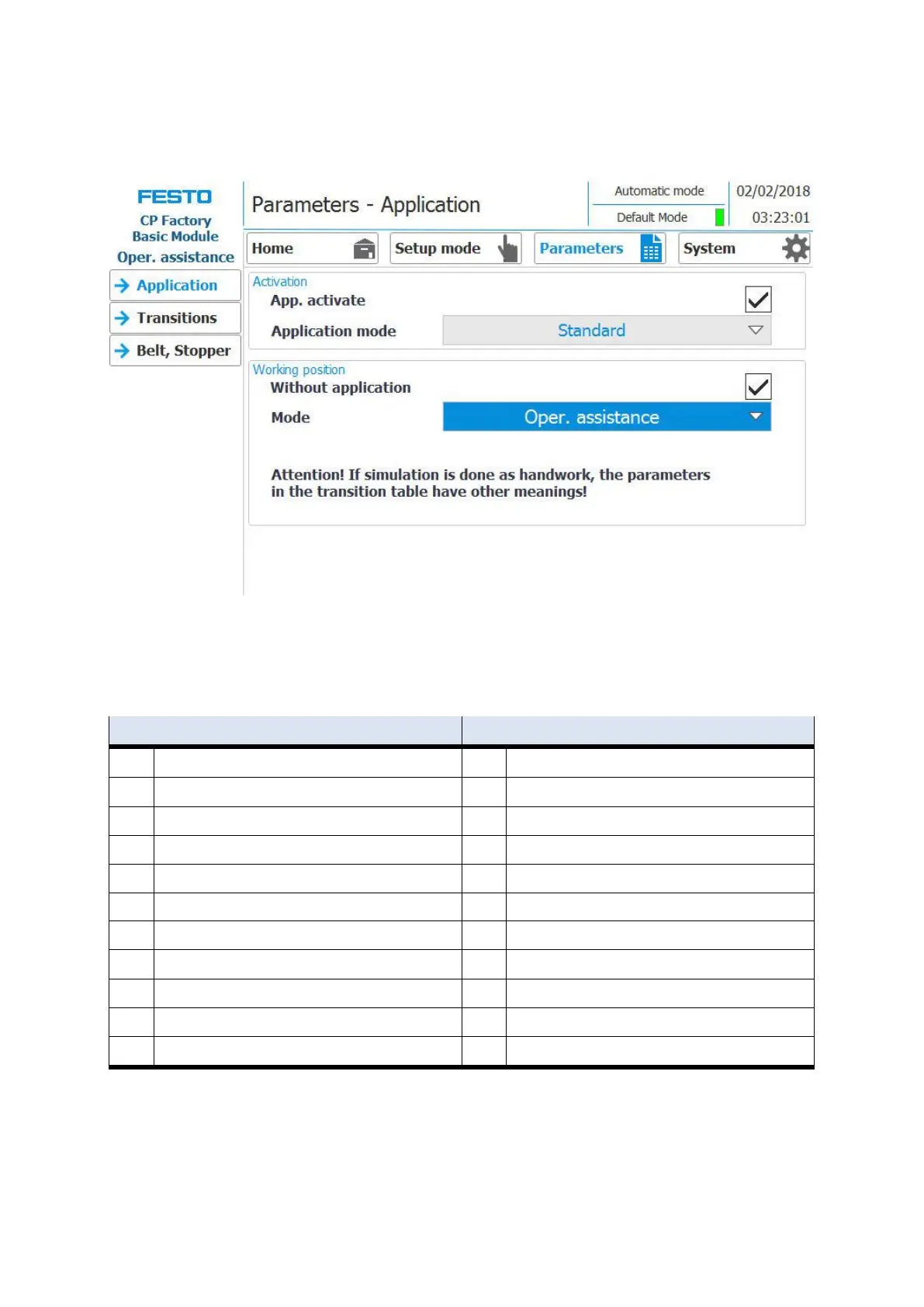

6.3.2 Operator assistance with display of pictures
1. If the mode is set to operator assistance (application mode must be set to Standard) and a carrier
moves into the application, it will be stopped.
2. The worker now has to complete the specified work task. This is specified in the transition table and
consists of the element (parameter 1) and the action (parameter 2).
Parameter 1 / Element
Parameter 2 / Aktion
0
No element
0
No action
1
Front cover
1
Check
2
Back cover
2
Extract
3
Printed circuit board
3
Assemble
4
Front fuse (in direction of transport)
4
Insert
5
Rear fuse (in direction of transport)
5
Apply
6
Both fuses
6
Rework
7
Workpiece
7
Reserve_7
8
Reserve_8
8
Reserve_8
9
Reserve_9
9
Reserve_9
10
Reserve_10
10
Reserve_10
