Operation
84 © Festo Didactic Conveyor

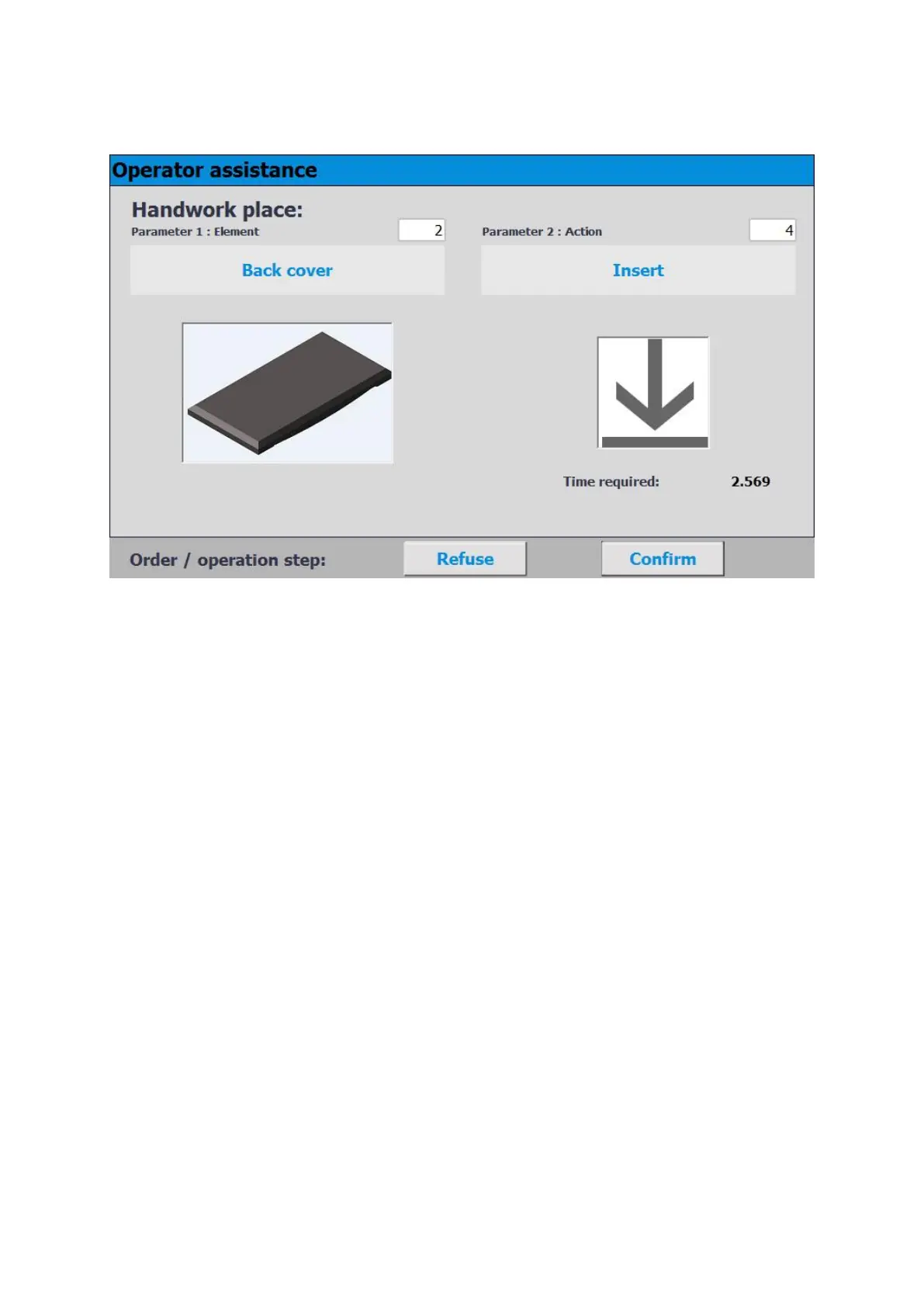

3. In this case, element 2 and action 4 are specified in the transitions. The worker must insert a backcover.
4. If the worker has completed the task, he must press the Confirm button to complete the task. The data
is transmitted to MES
5. The carrier is released from the application position.
