8 Extensions
8.1 Extension with an active corner
In order to make a circulation of several CP Lab conveyors, it is possible to assemble the CP Lab conveyors in
the rectangle and to connect the conveyors with active corners. A motor drives the corner and the carrier is
transported to the following CP Lab conveyor. The active corners are connected in parallel to the motor
used, the corner is mounted on the left side of the CP Lab conveyor. The coupling sensors of the conveyors
are simply forwarded to the following CP Lab conveyor using light guide bridges.

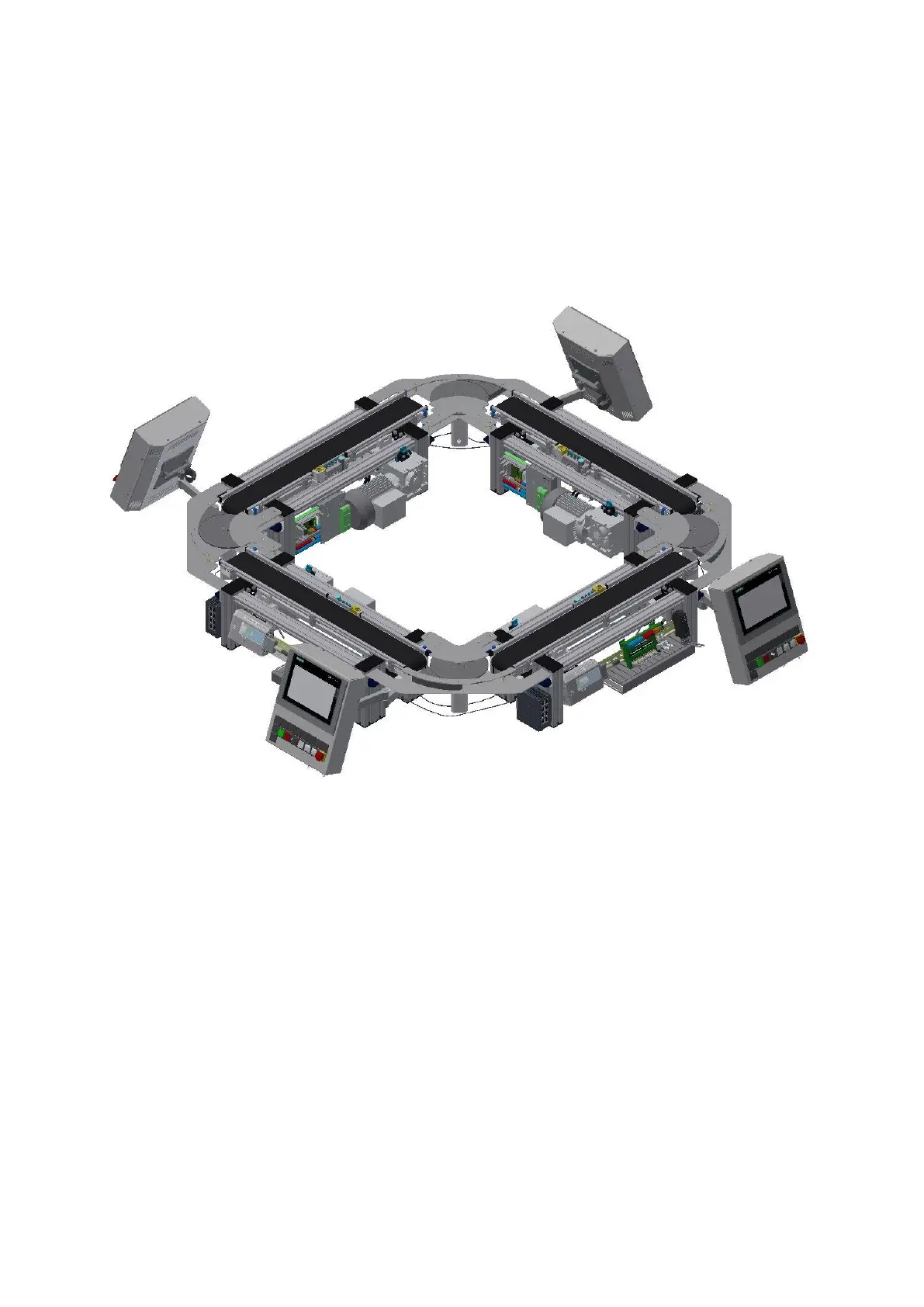

Example concatenation 4 CP Lab conveyors with active corners
