Components
92 © Festo Didactic Conveyor

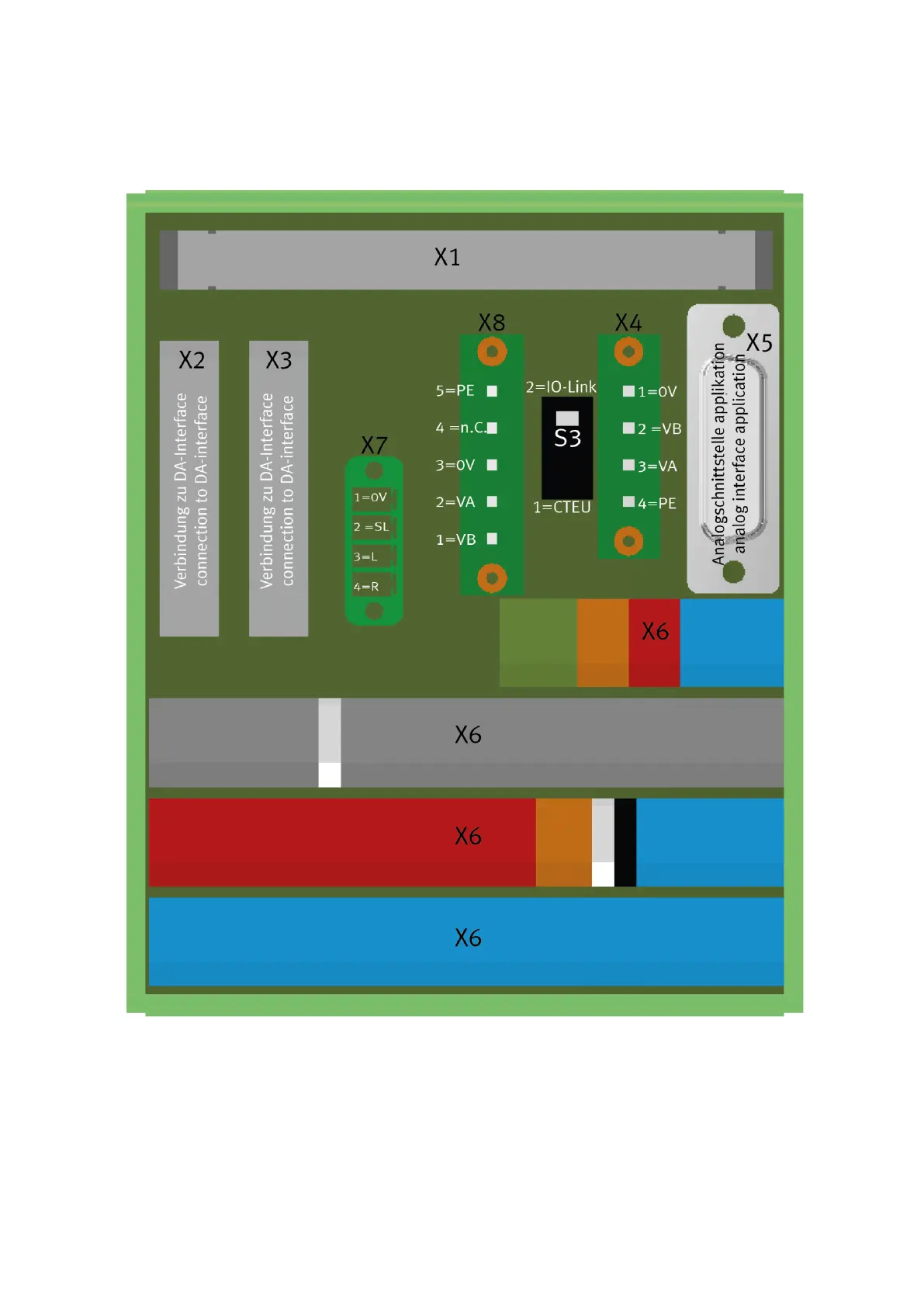

7.1.2 Back PCB XZ2
-XZ2-X4 = power supply
-XZ2-X2 = connection 1 to DA-Interface
-XZ2-X3 = connection 2 to DA-Interface
-XZ2-X5 = analog signals for application
-XZ2-X6 = terminals PCB rear side
-XZ2-X7 = connection to external Motorcontroller
-XZ2-X8 = 24V application modules
