Attaching the application module to the basic module CP Lab Conveyor
 Put the CP application module on the basic module CP Lab Conveyor.
 Position the slot nuts (2) underneath the mounting brackets (1) of the CP application module so that the
internal threads of the slot nuts are visible underneath the elongated holes of the mounting brackets.
NOTICE
Use Allen keys for lateral adjustment of the slot nuts.

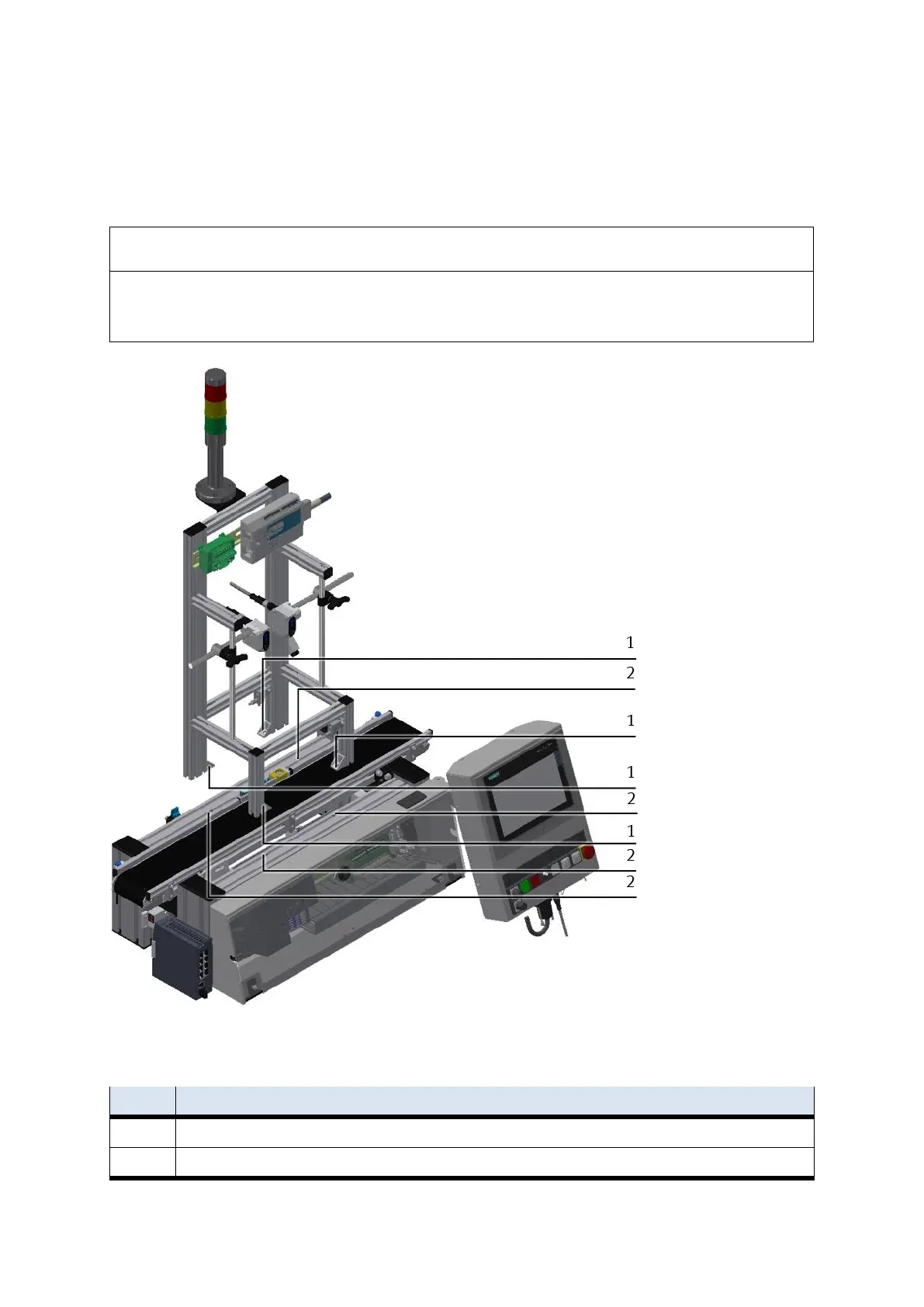

How to put on the CP application module
Position
Description
1
CP application module: mounting bracket
2
slot nut
