Drive system

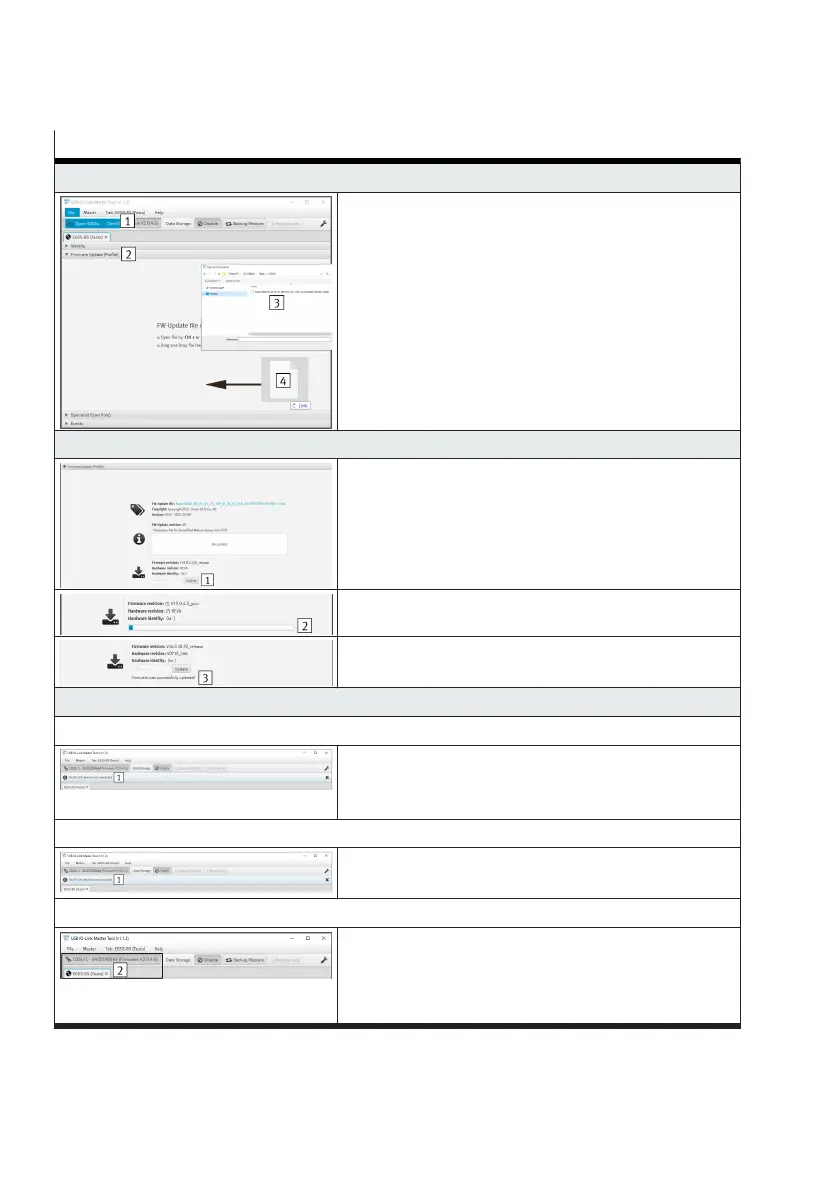

Steps for updating the parameter set
4. Open the parameter set file (e.g. Festo-EGSS_...-20210209-IOLFW1.0.iolfw)
–
Open the "Firmware Update (Profile) 1" tab
Variants for opening the file:
–
Open the "File" tab and execute the "Open IODDs"
submenu 2
–
Via the key combination "Ctrl + u 3"
–
By drag-&-drop 4
5. Load the parameter set file into the integrated drive
–
Press the "Update 1" button
–
The parameter set is transmitted 2
–
The transfer is successfully completed 3
6. Update the parameter set file in the integrated drive
up to Version V16.0.18.92
–
Perform a manual restart via a power OFF/ON of the
logic voltage L
+
[Logic, Pin 1]
–
The connection to the IO-Link master is interrupted 1
from version V19.0.4.107
–
An automatic restart is executed
–
The connection to the IO-Link master is interrupted 1
All versions
–
After successful loading of the parameter file, the con-
nection to the IO-Link master is automatically estab-
lished 2 or it must be established manually è step
"3. Establish a connection to the IO-Link master"
