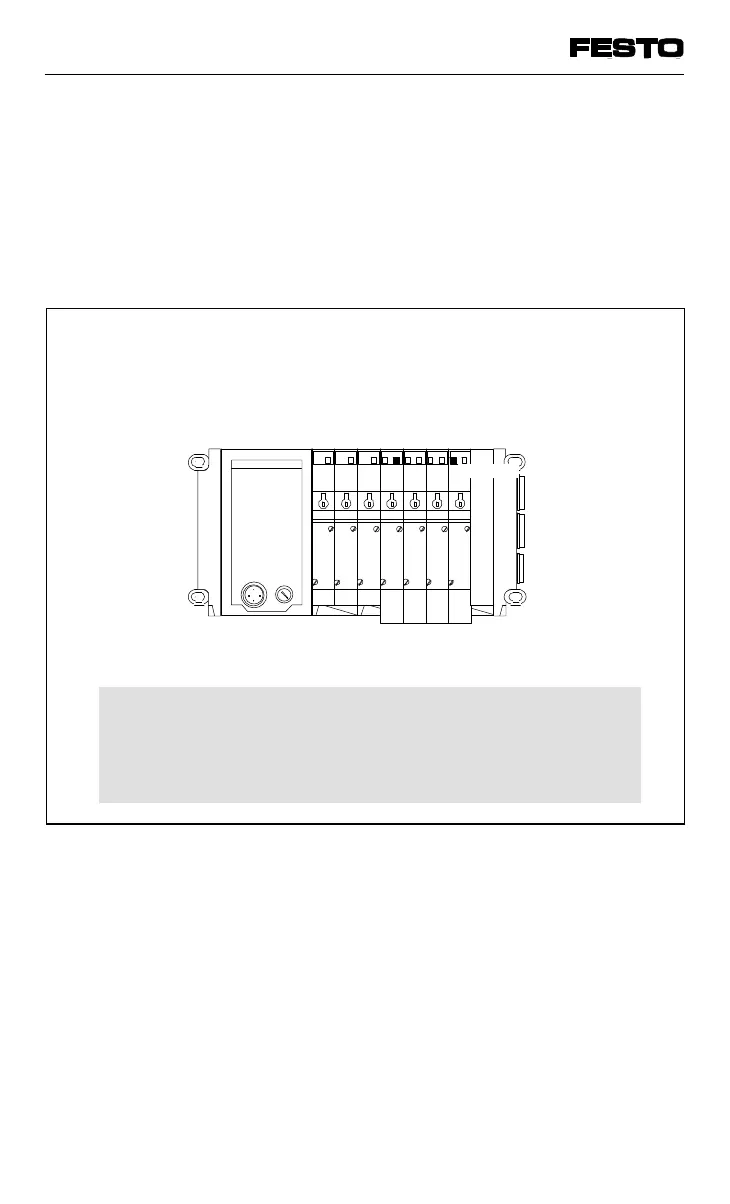

Example 1
Addressing a valve terminal with 3 single
solenoid valves and 4 double solenoid valves.
Configuration: 8DO Periphery address 34
8DO Periphery address 35
012
3
4
5
6
7
9
8
11 13
*
15
1421
01
Program
:
: = O34.4 "Output O0.04 (4th. valve right-hand coil)
: = O35.3 "Output O0.11 (7th. valve left-hand coil)
: =
O34.0
* unused
O34.1
O34.2 O34.3 O34.4 O34.5 O34.6 O34.7 O35.0 O35.1 O35.2 O35.3 O35.4 O35.5 O35.6 O35.7
Fig. 4/15: Addressing example 1
