The connections, display and operating elements
shown below are to be found on the MIDI
modules of type 03.
No. Meaning
1
2
3
4
5
6
7
8
9
Node with LEDs and field bus interface,
detailed description see chapter "Installation"
Yellow LEDs (status)
Manual override for valve coils
Valve location inscription field
Unused valve location with blanking plate
Common pneumatic tubing connections
Work connections (2 per valve, one above the other)
Operating voltage connection
Fuse for inputs/sensors
2
3 4
9
8 7
5
1

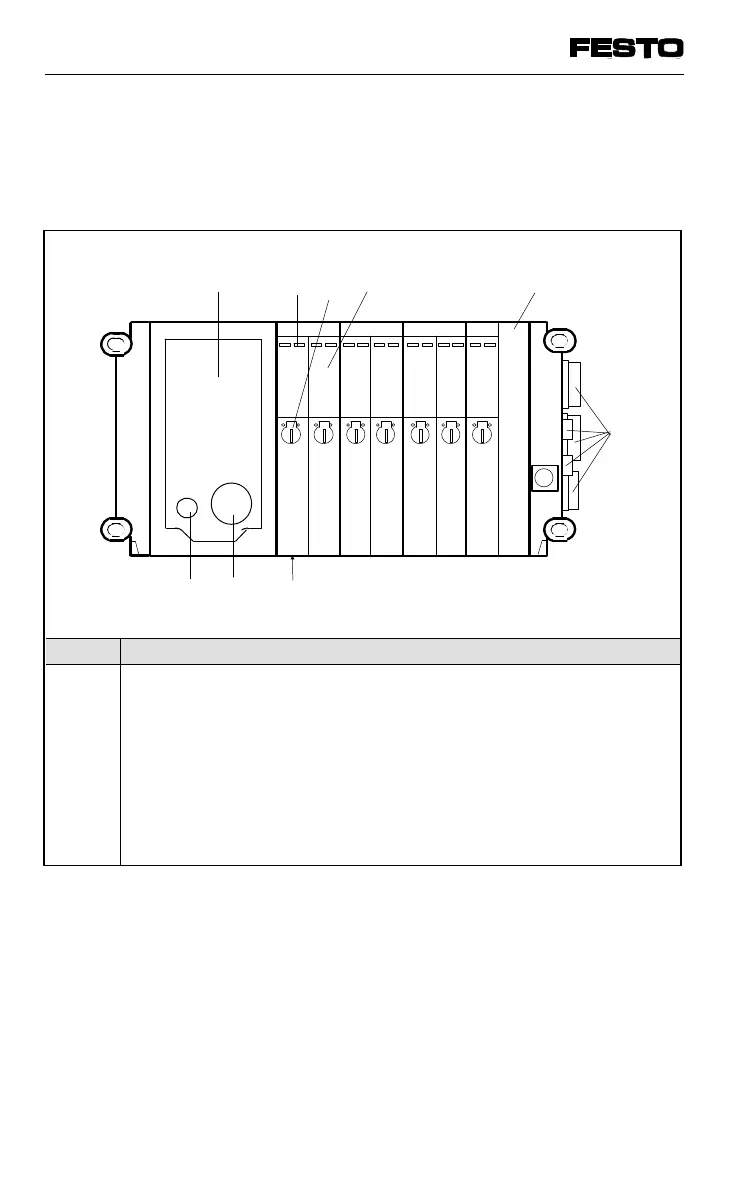

Fig. 1/4: Operating, display and connection elements of the
pneumatic modules
VIFB13 - 03/05 1. User instructions
9701 NH 1-7
