Summary of maximum number of I/Os
PLEASE NOTE
The maximum possible number of inputs/
outputs is influenced by the following:
•
max. 26 valve coils can be actuated
•
max. 12 electrical modules
(including AS-i master analogue I/Os
).

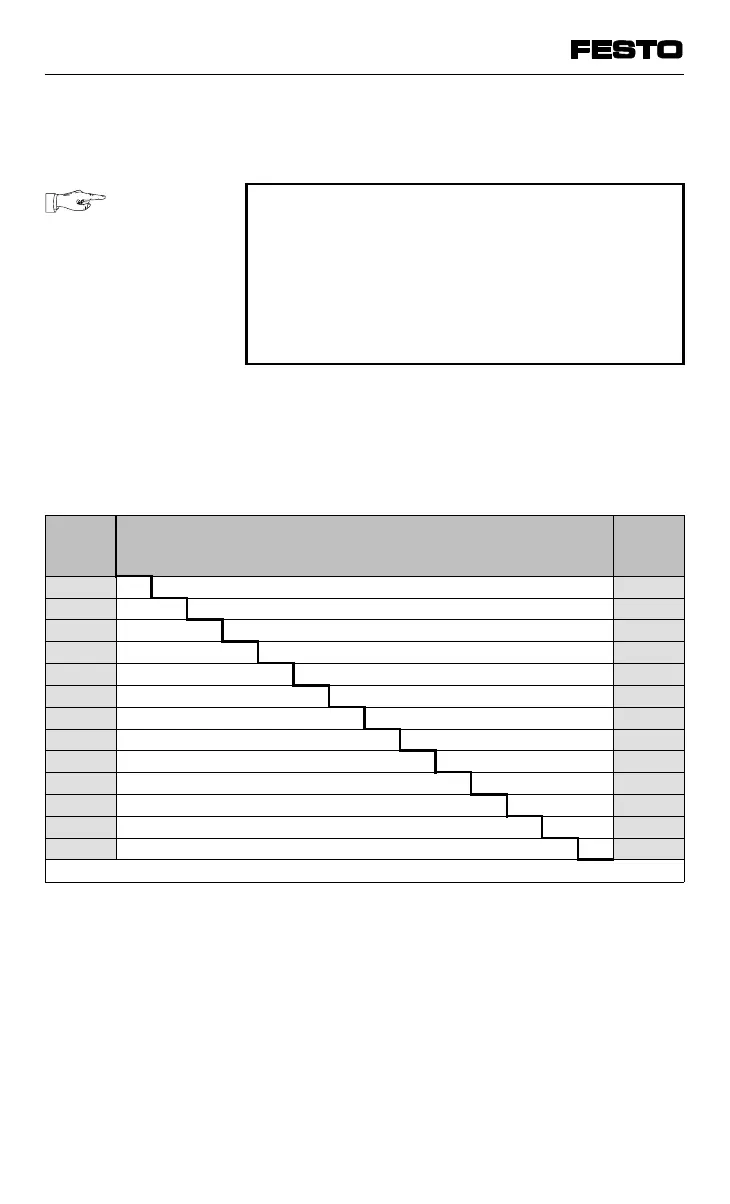

The following table shows the possible combina-
tions of digital I/Os. The maximum values with
AS-i I/Os and analogue I/Os must be considered
separately.
Input
modules
Number of inputs/outputs Output
modules
00 48 12
18 44 11
216 40 10
324 36 9
432 32 8
540 28 7
648 246
756 205
864 164
972 123
10 80 8 2
11 88 4 1
12 96 0 0
26 Valve coils
VIFB13 - 03/05 4. Commissioning
4-10
9701 NH
