3.4.2 REMOVING A TABLE (MOD. SF600)
Wear at least the PPE indicated in section 3.4. The bench must be in a horizontal position.
With reference to Figure 13, raise the guard ref. 6 completely (section 3.5.2) on the side on which the table is to
be removed (photo A) and remove the scraper ref. 7 (section 4.5 and section 4.5.2.3). The operators must
position themselves at the side of the table and hold it at points far enough apart so that it can be easily
supported once it has been released.
Lift the table slightly so that it is not resting on its support.
Whilst operator X supports his side of the table ref. 1, operator Y (experienced mechanic), whilst also supporting
the table, must push it in the direction of the arrow F1 in order to compress the spring (not visible in the figure)
that pushes the cylinder ref. 2 outwards. Immediately afterwards (almost at the same time) he must move the
bench in the direction indicated by arrow F2 in order to disengage the other end of the roller ref. 4.
The bench ref. 1 can now be removed. Place it in a stable position and take appropriate measures to prevent it
from tipping over and falling and protect it from shock, impact, damage, etc.

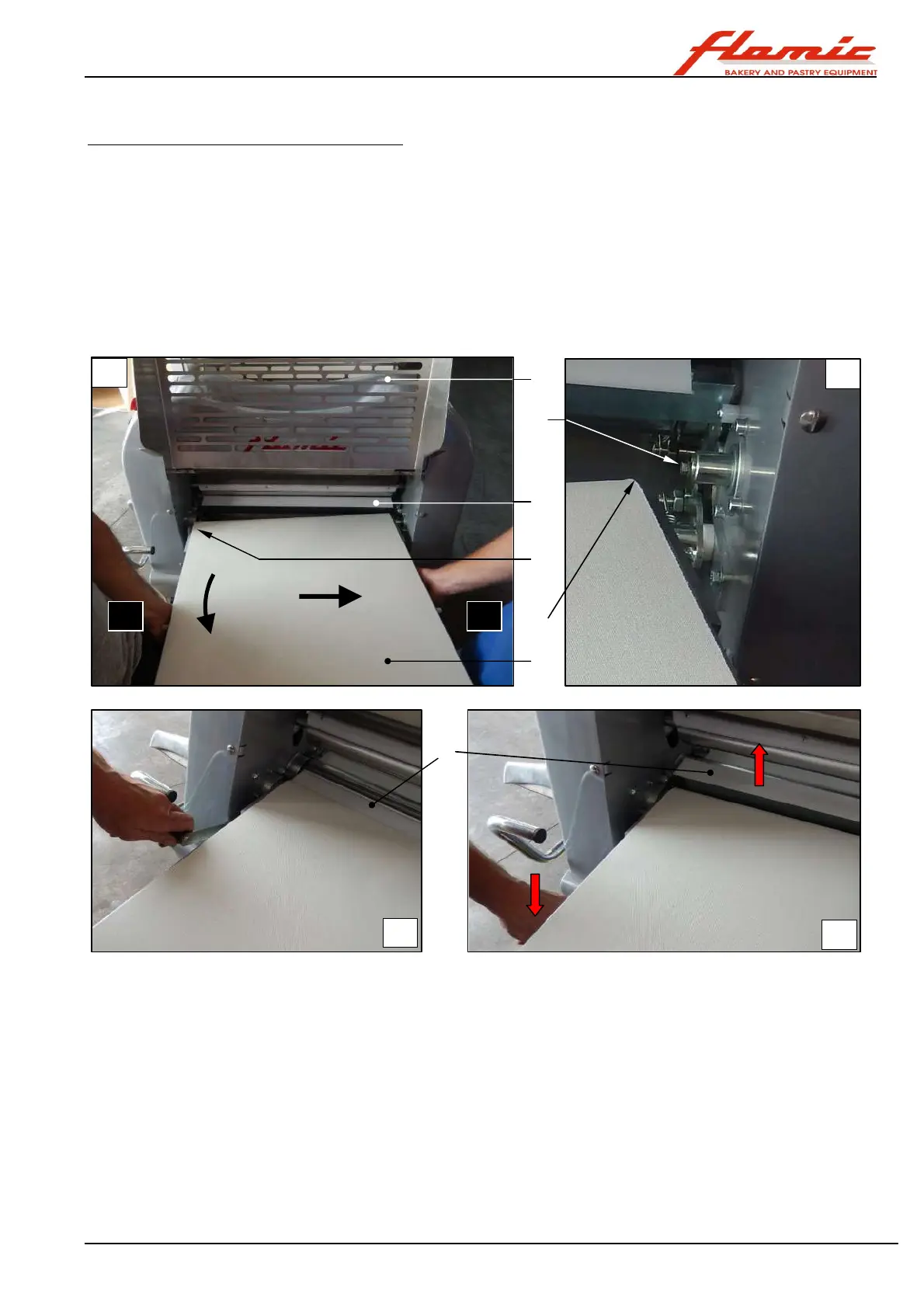

Figure 13 - Removing the benches (SF600 only)
3
1
4
6
7
7
