FLAMIC S.R.L. 5 Via dell’Artigianato, 36035 Marano Vicentino (Vicenza) - Italy
31
Dough sheeter SF450 - SF500 - SF600 Operation and maintenance manual (translation of original instructions) – Ed. 10/2016
Rev.02 10/2017
All rights reserved. Reproduction in whole or in part of this manual is prohibited.
3.10.5 REMOVING THE CUTTING UNIT
This must be carried out with the machine switched off and the main power switch in the O - OFF position.
With reference to Figure 26, to remove the cutting unit, proceed as follows:
- wear safety footwear with reinforced toecaps and abrasion resistant gloves
- release the cutting unit and place it into the raised position as shown in photo A (see section 3.10.2)
- unscrew and completely remove the knobs with the threaded stud ref.1 (photo B)
- even if the weight to be handled is not particularly high (max. 23 kg), the following task must be carried out
by two people for the same reasons as indicated in section 3.10.1. Before starting, remove the cutting rollers
(see section 3.10.4) in order to reduce the weight to be handled as much as possible (to about 15 kg). This is
particularly important if it is not possible to be assisted by a second person.
- lift the unit, keeping it parallel to the surface of the bench until the plates ref. 2 (photo C) have been completely
removed.
- place the unit in a safe place and take precautions to prevent it from tipping over, falling or being damaged.
- screw the threaded studs of the knobs ref. 1 into the relative threaded holes to avoid losing them.

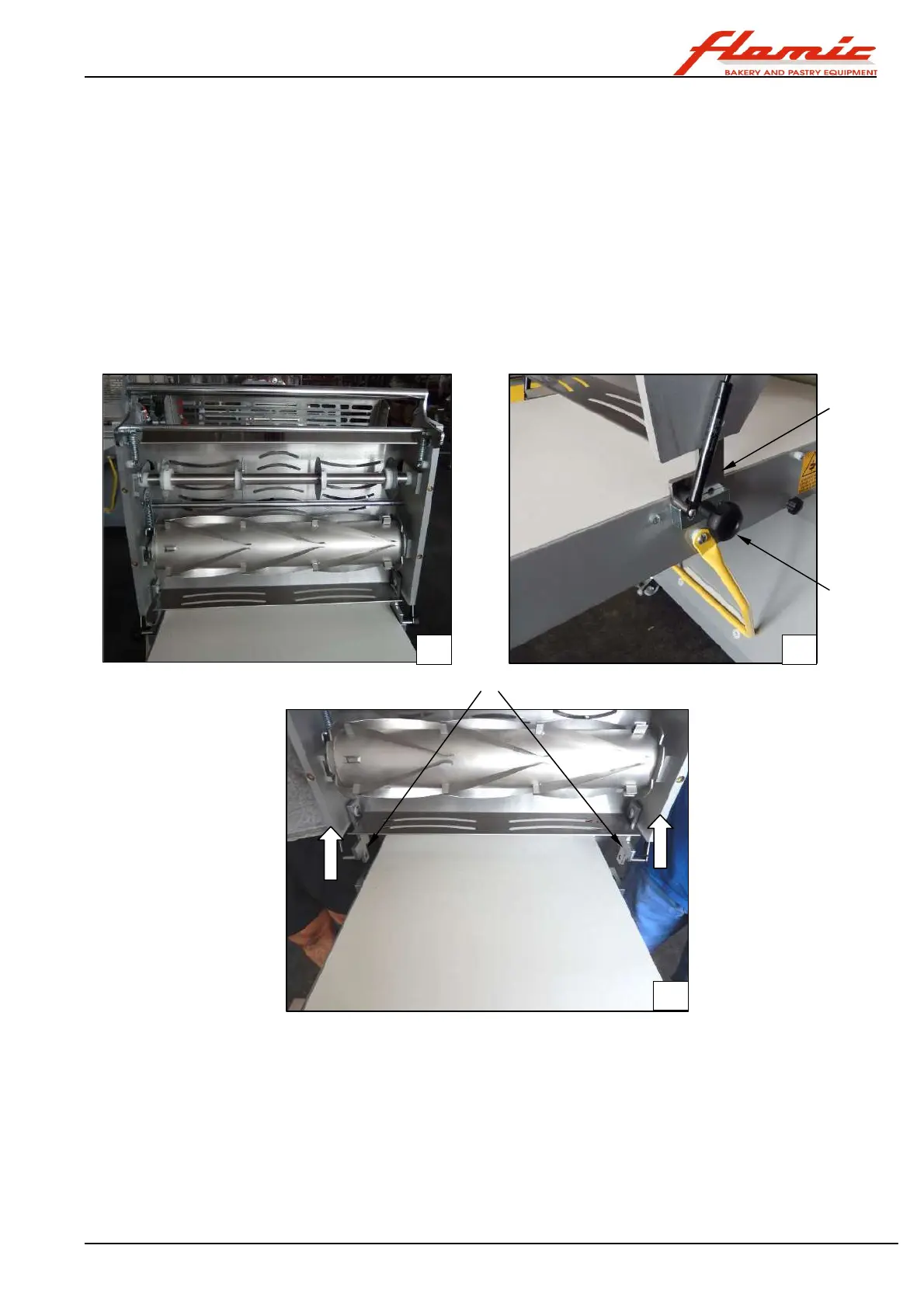

Figure 26 - Removing the cutting unit
2
1
2
