FLAMIC S.R.L. 5 Via dell’Artigianato, 36035 Marano Vicentino (Vicenza) - Italy
25
Dough sheeter SF450 - SF500 - SF600 Operation and maintenance manual (translation of original instructions) – Ed. 10/2016
Rev.02 10/2017
All rights reserved. Reproduction in whole or in part of this manual is prohibited.
3.6.3 MOD. SF600
With reference to Figure 18, to move a bench ref. 1 from the position shown in photo A to the position shown in photo E:
- remove any rolling pins there may be and lower the relative supports
- make sure that the residue collection tray is fitted and secured in place (see section 3.8) and that the catch
pan is retracted (section 3.9)
- raise the guard ref. 4 completely (see section 3.5.1)
- raise the table ref. 1 (photo B)
- for table lengths of ≤ 850 mm: whilst keeping the table raised with one hand, with the other
place the horizontal bar of the support ref. 5 onto the blocks ref. 3 (photos C - D - E)
- for table lengths of > 850 mm: whilst one operator keeps the table raised with both hands, the other operator
should place the horizontal bar of the support ref. 5 onto the blocks ref. 3
To move the bench ref. 1 from the position shown in photo E to the position shown in photo A, following the
instructions provided above regarding the length of the bench, push it slightly forwards and move the support
ref. 5 from the upper blocks ref. 3 and lower the table so that the bar ref. 5 rests on the lower blocks ref. 2.
In both cases, the bar ref. 5 of the table support must be properly and well seated on the blocks ref. 2 or
ref. 3 to avoid the risk of the table accidentally falling.
Remember that only tables up to 1400 mm long can only be folded as in photo E. Longer tables have to remain
in the work position as shown in photo A.

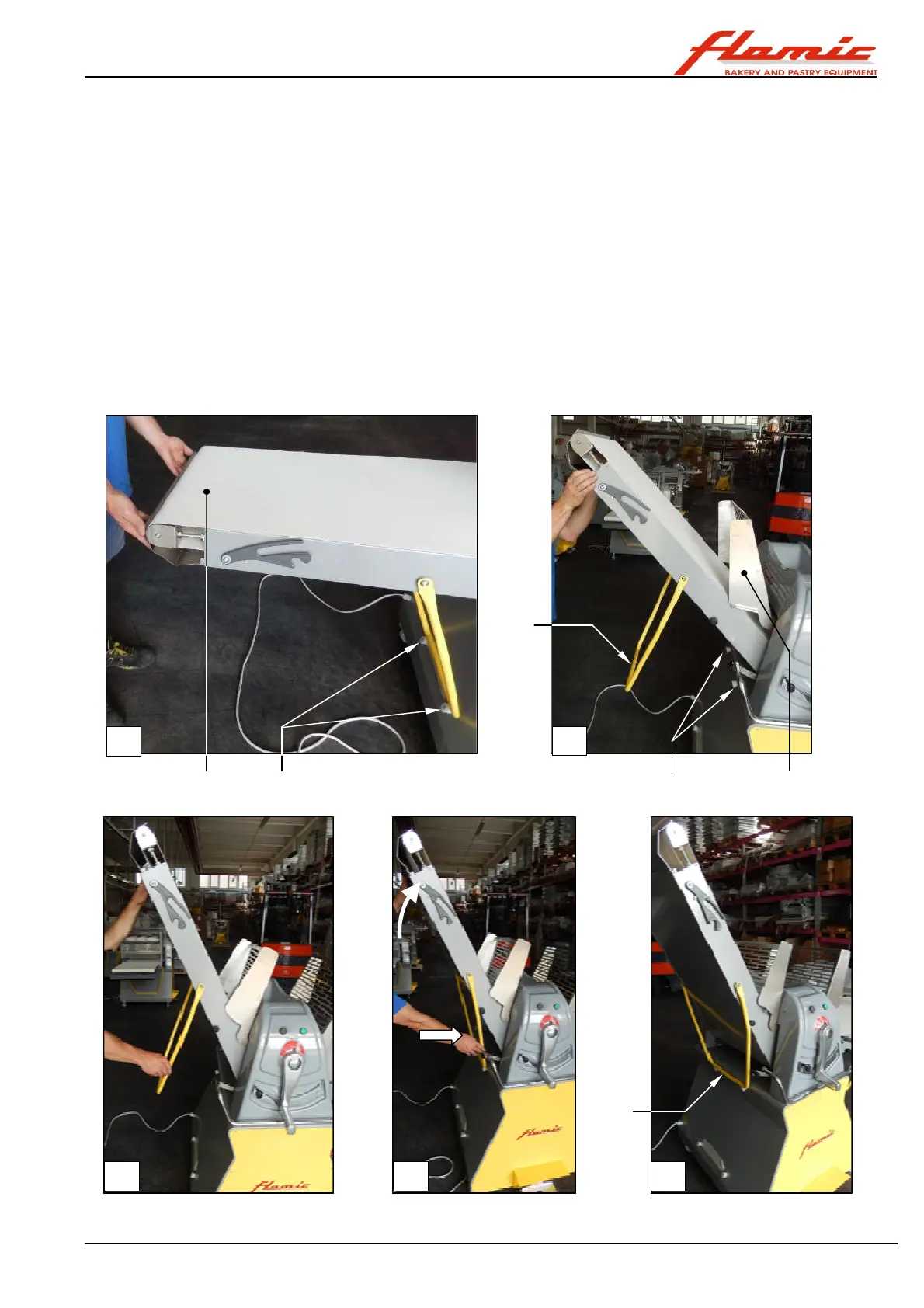

Figure 18 - Raising/lowering the benches (mod. SF600)
5
2
3
1
4
5
