4.3.3 SHEETER MOD. SF500 - SF600
Model SF500 uses a single belt, model SF600 uses a pair of V-belts.
With reference to Figure 31, to adjust the tension of the drive belt(s):
- remove the guard ref. 1 on the side opposite the controls. In order to do this, remove the fixing screws ref. 2 (three
per side). Place the guard in a safe place and in a stable position.
- loosen the four screws ref. 3 and then loosen the nut ref. 4
- turn the head ref. 6 of the screw ref. 7 until the tension of the belt(s) ref. 5 is correct. The following values for T
should be used (for the meaning of T refer to section 4.3.1):
for SF500 A = 4,8 mm T = 22,3 N (60 Hz) T= 22,4 N (50 Hz); for SF600 A = 3,72 mm T = from 14,7 to 32,3 N
- once it has been adjusted, tighten the nut ref. 4 and then tighten the four screws ref. 3 immediately afterwards.
- replace the guard ref. 1 on the upright and secure it using all the screws ref. 2
To replace the drive belt(s)
- turn the nut ref. 4 to slacken the belt(s) ref. 5 just enough so that it/they can be slipped off the pulleys P1 and P2. In
the case of model SF600 both belts must be replaced (not only the one that appears to be the most worn!) to
ensure that the machine gives the best performance.
- install the new belt(s) so that it is/they are properly seated on the pulleys P1 and P2
- adjust the tension of the belt(s) ref. 5 as described above, but in this case, because the belt(s) is/are new the following should
be used: for SF500 A = 4,8 mm T = 32,6 N (60 Hz) T= 32,7 N (50 Hz); for SF600 A = 3,72 mm T = from 14,7 to 32,3 N
When the adjustment is complete, reinstall the guard ref. 1 and secure it using the screws ref. 2 as described above.
Use only original belts supplied by Flamic:
SF500: flat belt Poly-V type, Flamic code: C114101640012
SF600: V-belt type XPZ, Flamic code: C111000001237

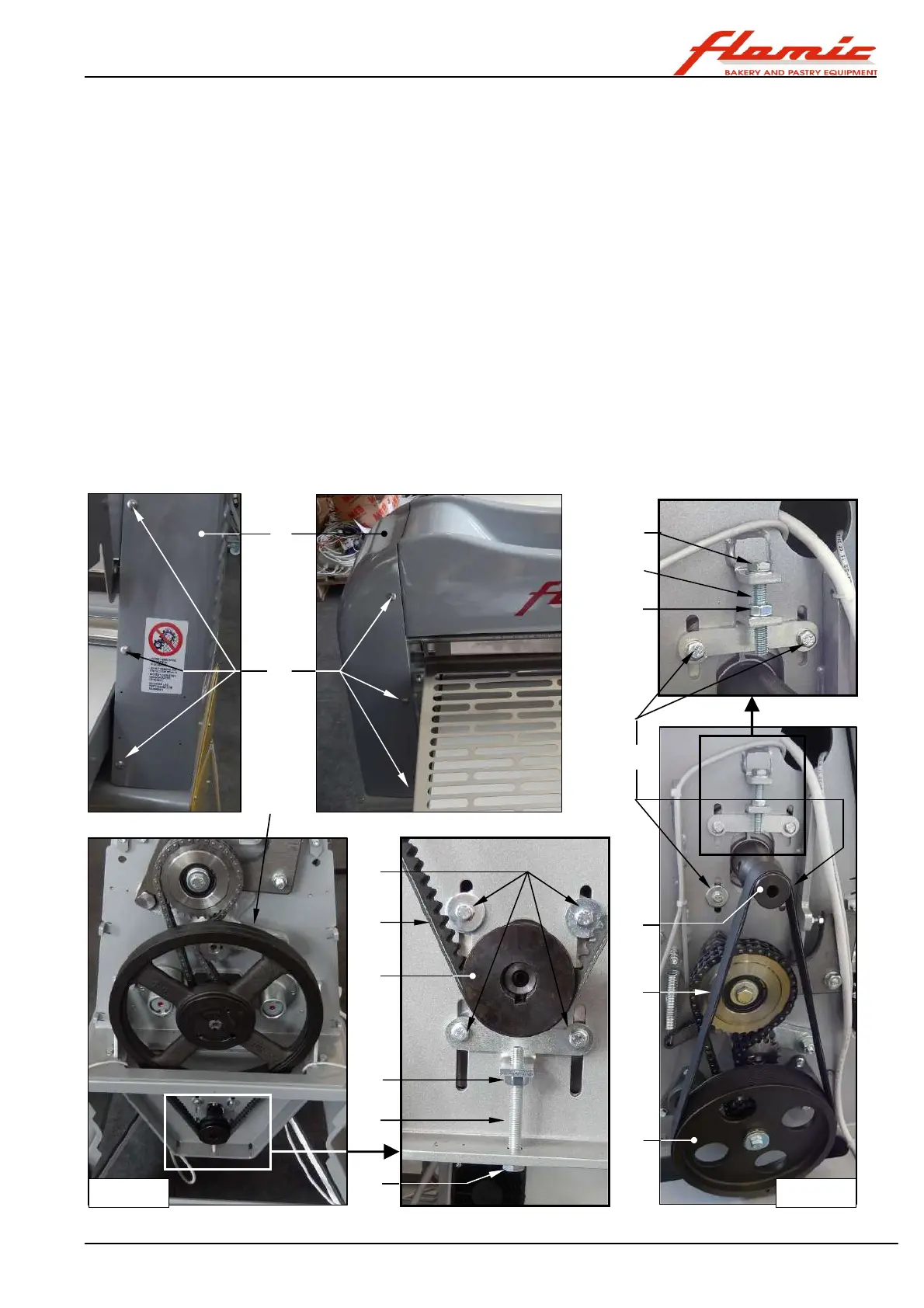

Figure 31 - Mod. SF500 and SF600: adjusting the tension of the drive belt(s)
