3.9 CATCH PANS FOR COLLECTING THE DOUGH SHEET THAT IS TOO LONG FOR THE CONVEYORS
There is a catch pan at the end of each table to collect the rolled dough, which because of its excessive length,
would otherwise fall onto the floor. It can be pulled out from under the table by simply pulling it and be retracted
by pushing it.
On model SF450 the residue collection tray and the catch pan are a single unit.

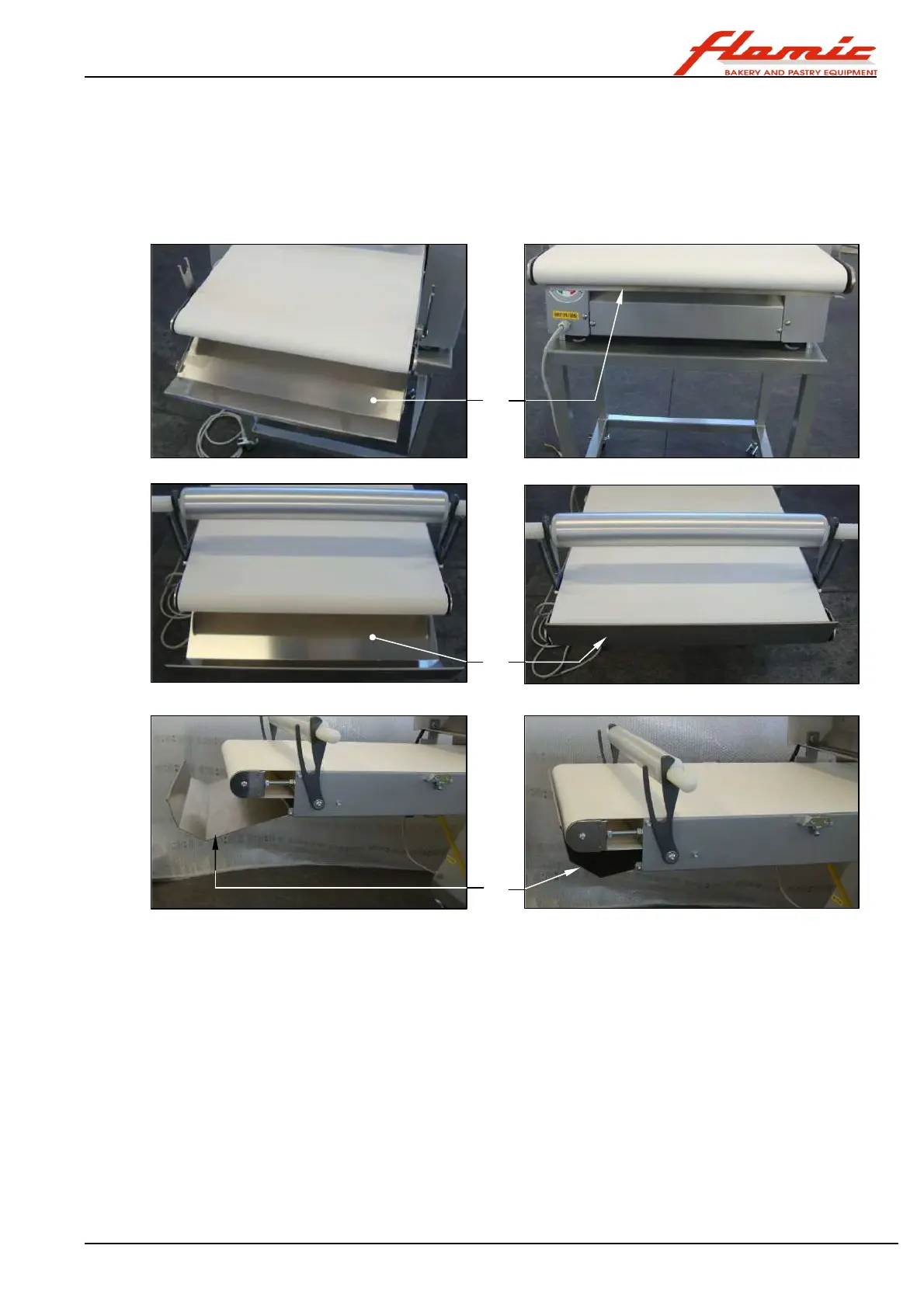

Figure 21 shows a fully extended and fully retracted catch pan ref. 1 for each model of dough sheeter.
SF450
SF500
SF600
Figure 21 - Catch pan
1
1
1
