FLAMIC S.R.L. 5 Via dell’Artigianato, 36035 Marano Vicentino (Vicenza) - Italy
30
Dough sheeter SF450 - SF500 - SF600 Operation and maintenance manual (translation of original instructions) – Ed. 10/2016
Rev.02 10/2017
All rights reserved. Reproduction in whole or in part of this manual is prohibited.
3.10.3 ADJUSTING THE FORCE EXERTED ON THE BENCH BY THE CUTTING ROLLERS

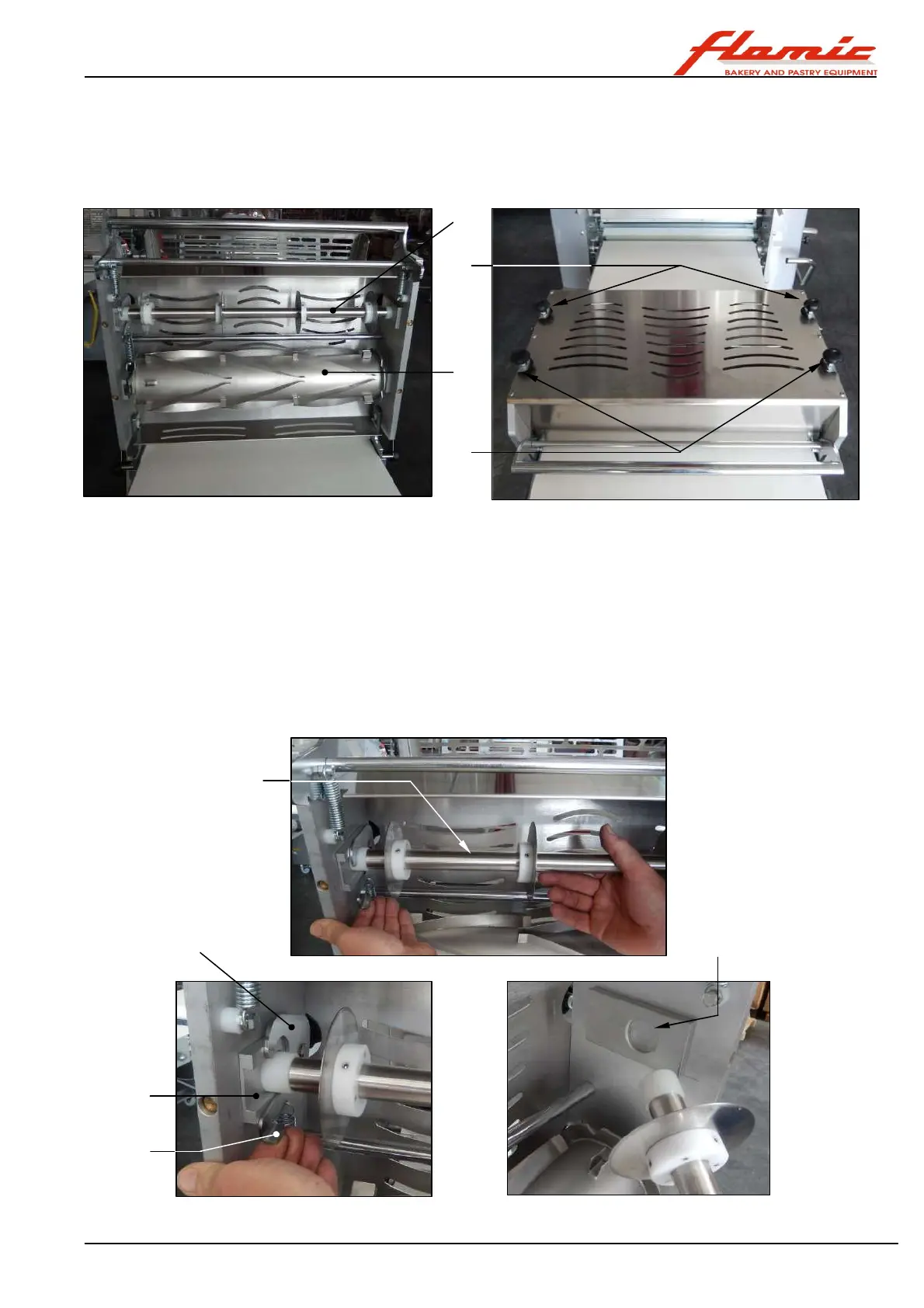

With reference to Figure 24, to adjust the force exerted on the table by the cutting rollers:
- turn the knobs ref. 1 to adjust the roller fitted with the longitudinal cutting discs ref. 4
- turn the knobs ref. 2 to adjust the cutting roller ref. 3
Turn the knobs clockwise (as viewed from above) to increase the force and anticlockwise to decrease it.
Figure 24 - Adjusting the force exerted on the bench by the cutting rollers
3.10.4 REMOVING / INSTALLING THE CUTTING ROLLERS
This must be carried out with the machine switched off and with the main power switch in the O - OFF position.
Wear safety footwear with reinforced toecaps and abrasion resistant gloves.
With reference to Figure 25, place the unit in the raised position, as explained in section 3.10.2, then
- to remove a cutting roller ref. 1, using one hand, support it roughly in the centre and with the other hand
move the lever ref. 2 to raise and open the seat ref. 3. Remove the roller from the guide ref. 4 and the seat ref.
5 on the opposite side.
- to install a cutting roller ref. 1, first insert the end into the seat ref. 5, then open the seat ref. 3 by moving the
lever ref. 2. Insert the other end of the roller in to the guide ref. 4 and push it in as far as it will go and then
release the lever ref. 2.
Figure 25 - Removing/installing the cutting rollers
3
4
2
1
1
2
3 5
4
