FLAMIC S.R.L. 5 Via dell’Artigianato, 36035 Marano Vicentino (Vicenza) - Italy
36
Dough sheeter SF450 - SF500 - SF600 Operation and maintenance manual (translation of original instructions) – Ed. 10/2016
Rev.02 10/2017
All rights reserved. Reproduction in whole or in part of this manual is prohibited.
4.3.2 SHEETER MOD. SF450
With reference to Figure 30, to adjust the tension of the drive belt ref. 5:
- remove the guard ref. 1 on the side opposite the controls. To do this you must remove the five screws ref. 2
and loosen the two screws ref. 3 just enough to remove the guard. Place the guard in safe place and in a
stable position.
- using an open end spanner, turn the screw ref. 4 until the tension of the belt ref. 5 is correct. In this case
consider: A = 2,1 mm T = 26,4 N (60 Hz) T=26,5 (50 Hz) (for T see section 4.3.1)
- when finished, replace the guard ref. 1 making sure that its upper edge is placed under the heads of the
screws ref. 3 and then insert and tighten the screws ref. 2. Lastly, tighten the screws ref. 3 so that their heads
compress the edge of the guard ref. 1.
Replacing the drive belt:
- turn the nut ref. 4 to slacken the belt ref. 5 just enough so that it can be slipped off from the pulleys P1 and P2
- install a new belt. The ridges of its inner profile must fit into the grooves on the pulley wheels P1 and P2
- adjust the tension of the drive belts(s) ref. 5 as described above. However, in this case, because the belt is
new, you should consider: A = 2,1 mm T = 39 N (60 Hz) T=39,2 (50 Hz)
When done, replace the guard ref. 1 and fasten it using the screws ref. 2 and ref. 3 as described above.
Use only original Flamic belts: flat belt Poly-V type, Flamic code: C114072328512

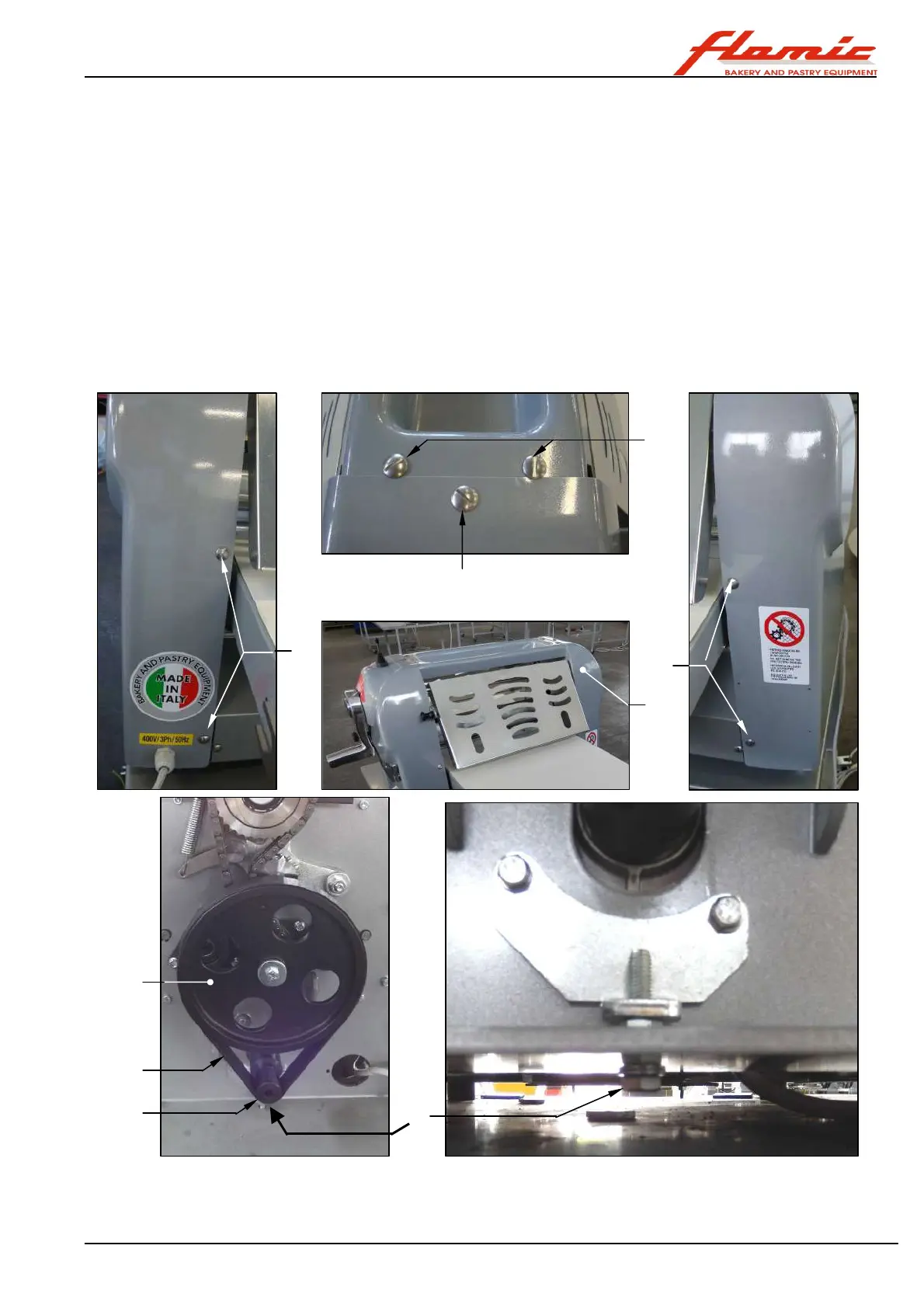

Figure 30 - Mod. SF450: adjusting the tension of the drive belt
1
2
2
2
3
4
5
P2
P1
