Dough sheeter SF450 - SF500 - SF600 Operation and maintenance manual (translation of original instructions) – Ed. 10/2016
Rev.02 10/2017
All rights reserved. Reproduction in whole or in part of this manual is prohibited.
3.5 LIFTING AND LOWERING THE INTERLOCKED GUARDS
The guards need to be opened in order to:
- clean the rollers and the innermost part of the conveyor belts (section. 4.10)
- remove and install the scrapers (section 4.5)
- place the benches in the raised position (section 3.6)
- carry out specific maintenance work, for example changing the conveyor belts (section 4.6)
When a guard is raised, the safety system stops all moving parts, or prevents any part of the machine from
starting and disconnects power to the actuators (e.g. motor).
The methods for lifting and securing the guard in the raised position and to release and lower it afterwards, are
different for models SF450 (section 3.5.1) and models SF 500 and SF600 (section 3.5.2).
3.5.1 MOD. SF450
With reference to Figure 14, the guards, when lowered, appear as in photo A. To lock them in the upright
position:
- lift the guard approximately half way and then push it towards the controls side of the machine (photo B)
- while keeping it pushed sideways, lift the guard completely (photo C)
- while keeping it raised, stop pushing it sideways: it will remain in the raised position (photo D).
To lower a guard that is raised and locked in position, simply push it sideways towards the controls side: then
keep pressing it sideways and lower it until it reaches the position shown in photo A.

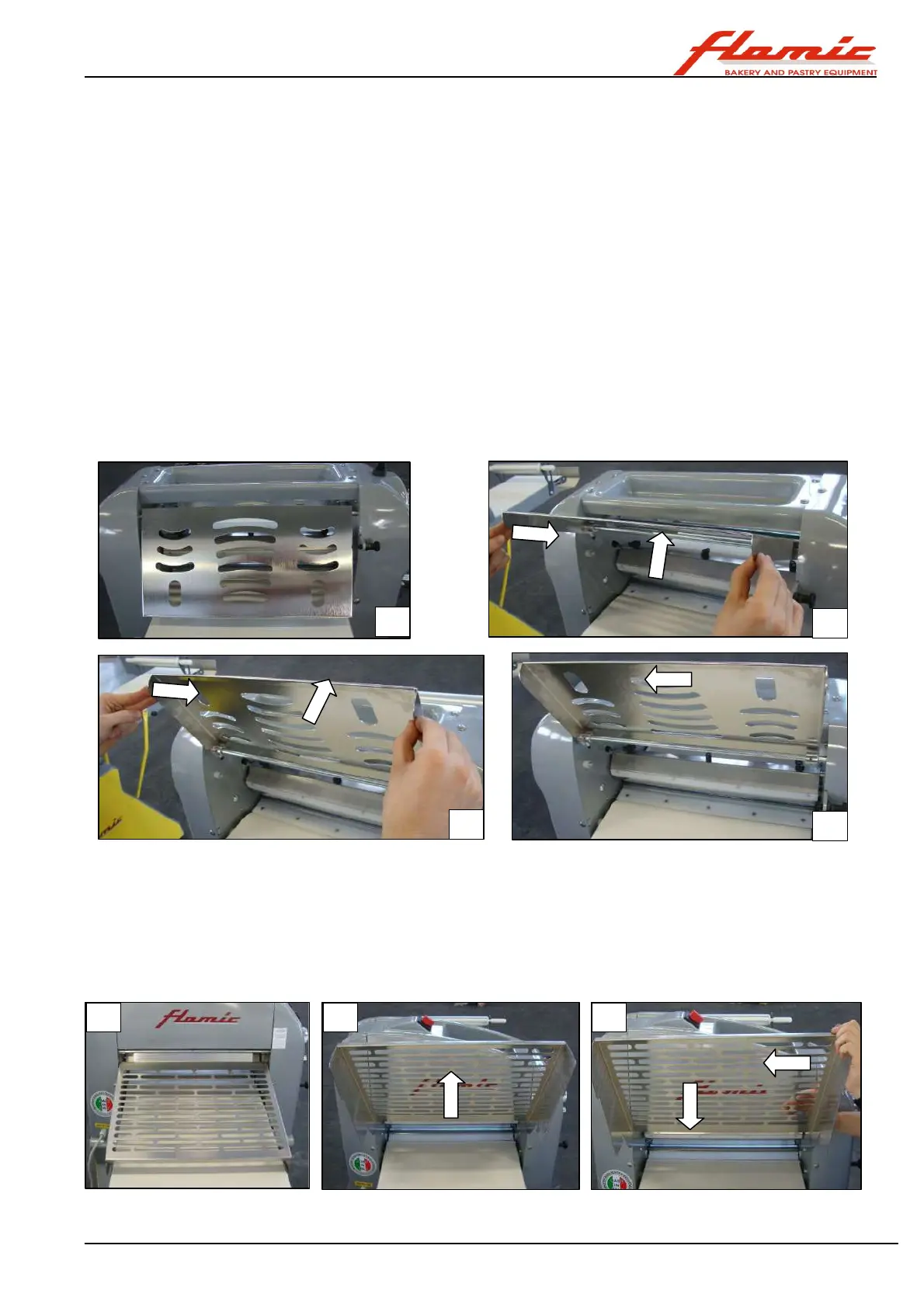

Figure 14 - Raising/lowering the interlocked guards (mod. SF450)
3.5.2 MOD. SF500 AND SF600
With reference to Figure 15, the guards, when lowered, appear as in photo A.
When raised completely, they remain locked in the raised position (photo B).
To lower them, simply push them sideways towards the side opposite the controls side and lower them (photo
C) until they reach the position shown in photo A.
Figure 15 - Raising/lowering the interlocked guards (mod. SF500 - SF600)
