4.5.2 LOWER ROLLER SCRAPERS
The two lower roller scrapers are independent and flush with the relative belts.
4.5.2.1 MOD. SF450
IMPORTANT! In order to remove the scraper to the left of the roller (looking at it from the controls side),
the upper roller scraper unit has to be removed (see section 4.5.1).
With reference to Figure 34, to remove a scraper ref. 1 with the relative support and springs:
- unhook both springs ref. 2 from the pins ref. 3 (photos A - B)
- using one hand, push the scraper upwards from under the table (photo C) and with the other, remove it from
above (photos D - E)
To install a scraper ref. 1:
- lower the scraper unit ref. 4 into the space ref. 5 between the conveyor belt ref. 6 and the roller ref. 7. The
notch ref. 8 must be facing the side opposite the roller ref. 7 (photo F). The plates ref. 9, to which the springs
are hooked ref. 2, must descend easily and smoothly (the springs ref. 2 must not stop against other parts)
- bring the scraper ref. 1 to rest in its lowest position (photo G)
- hook the springs ref. 2 onto their respective pins ref. 3 (photos B - A)

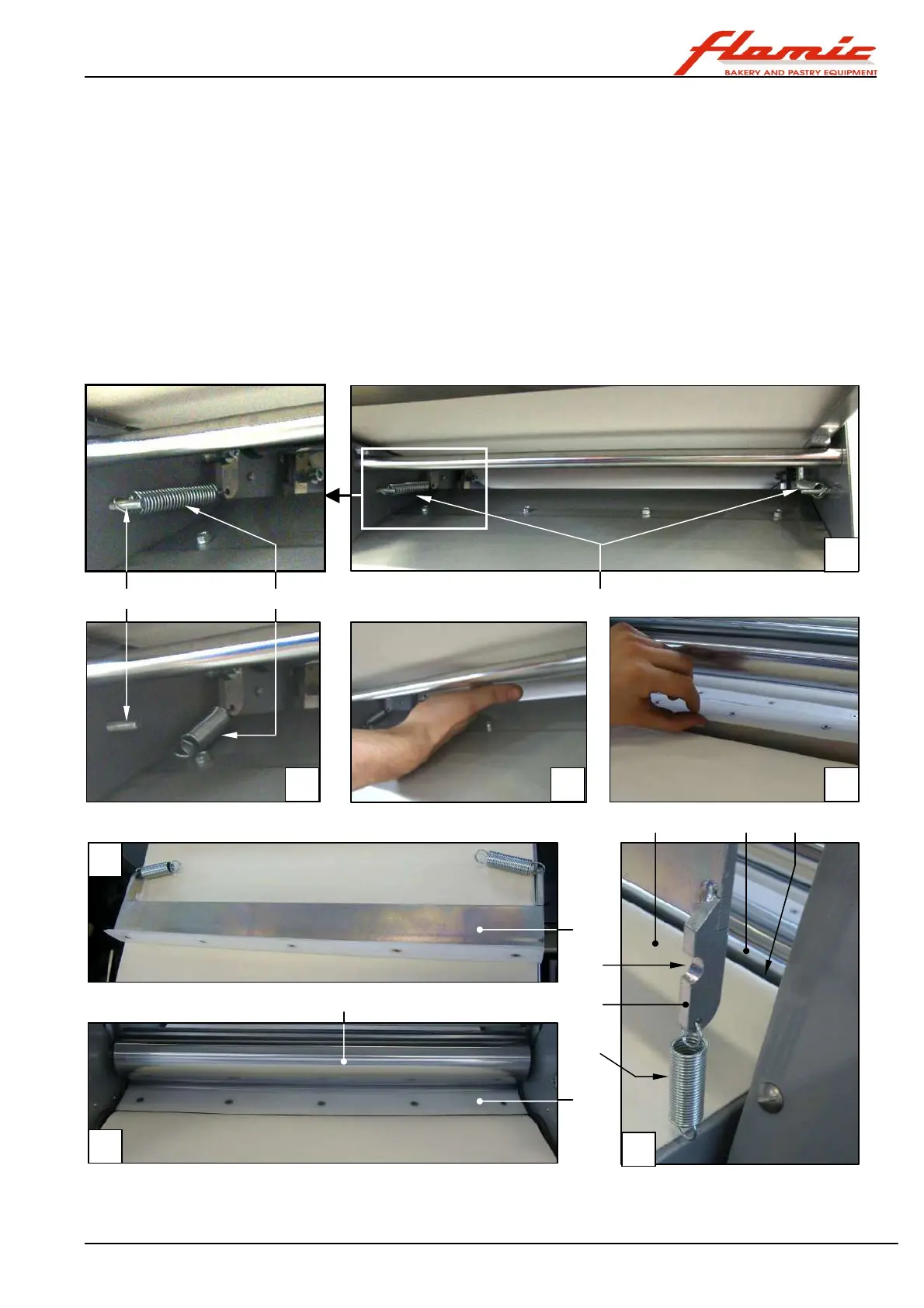

Figure 34 - Mod. SF450: removing/installing the lower roller scrapers
A
B C D
E
F
G
1
2 2
3
4
2
7 5
7
9
8
6
