Flexim FLUXUS F801 User Manual

FLUXUS ADM 8027, F801, ADM 8127B 7 Installation of FLUXUS F801
42 UMFLUXUS_F8V4-6-1EN, 2018-10-10
• Insert the extension cable into the junction box.
• Prepare the extension cable.
• Cut the outer shield to length and brush it back.
• Pull the extension cable back until the brushed back external shield is below the shield terminal (see Fig. 7.7). The ex-
tension cable has to remain completely insulated up to the shield terminal.
• Screw the gasket ring side of the basic part into the junction box.
• Fix the cable gland by screwing the cap nut onto the basic part.
• Fix the extension cable and the external shield to the shield terminal.
• Connect the extension cable to the terminals of the transmitter (see Fig. 7.7 and Tab. 7.4).

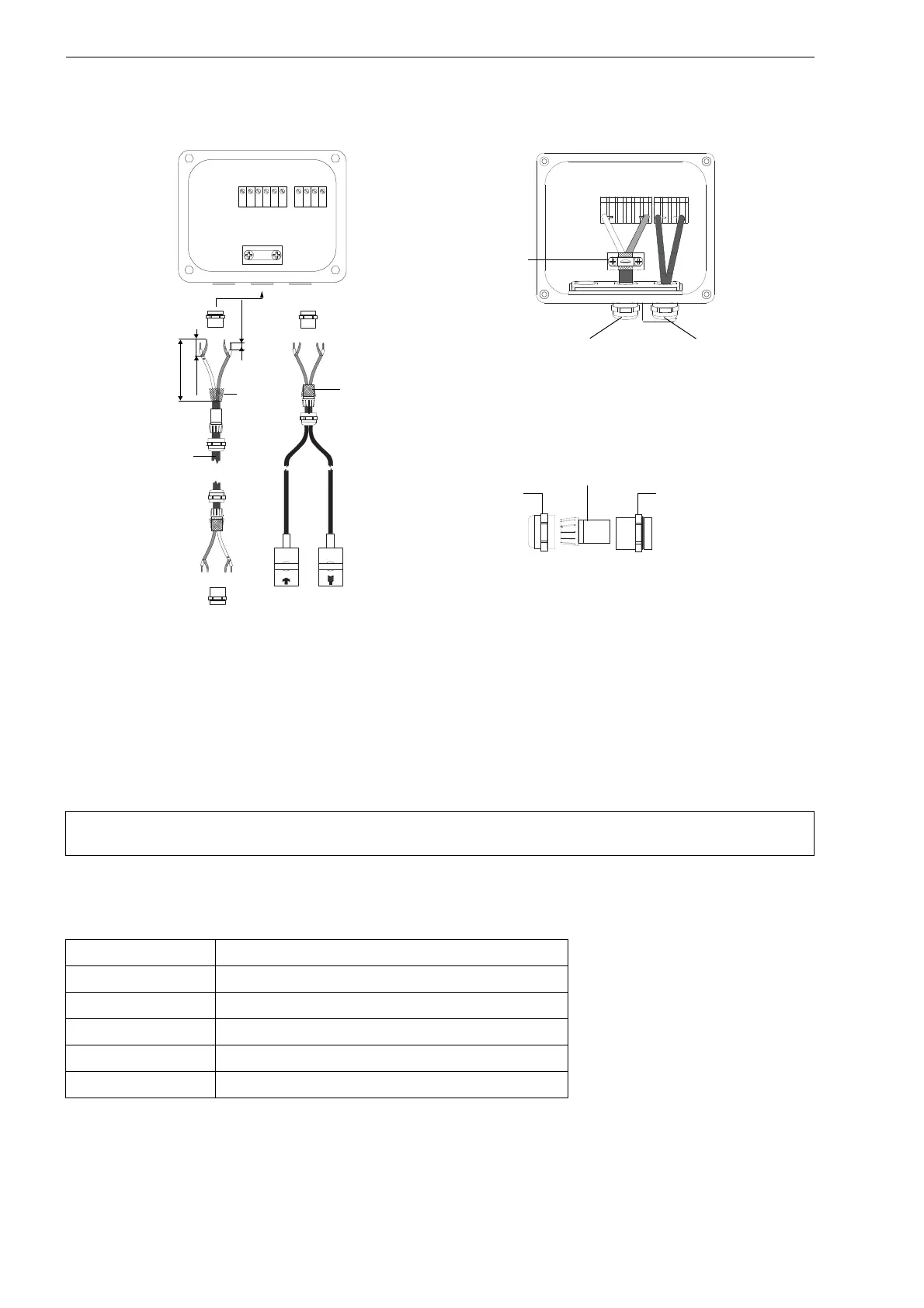

Fig. 7.7: Connection of the extension and transducer cable to the junction box JB01
Attention! The external shield of the extension cable must not have electrical contact to the junction box. There-
fore, the extension cable has to remain completely insulated up to the shield terminal.
Tab. 7.4: Terminal assignment (extension cable, KL2)
terminal connection
TV white or marked cable (core)
TVS white or marked cable (internal shield)
TRS brown cable (internal shield)
TR brown cable (core)
shield terminal external shield
T V
T V S
T G T G
T R S
T R
K L 2 K L 1
V
V S
R S
R
100 mm
20 mm
10 mm
external shield,
brushed back
extension cable
V
V S
R S
R
T V
T V S
T G
T G
T R S
T R
shield terminal
extension cable
transducer cable
external
shield
cap nut
compression part
basic part
cable gland
