Flexim FLUXUS F801 User Manual

FLUXUS ADM 8027, F801, ADM 8127B 8 Installation of FLUXUS ADM 8127B
52 UMFLUXUS_F8V4-6-1EN, 2018-10-10
Tab. 8.1: Terminal assignment (transducer cable)
terminal connection
AVS marked cable (internal shield)
AV marked cable (core)
AR unmarked cable (core)
ARS unmarked cable (internal shield)
shield marked cable and unmarked shield (external shield)

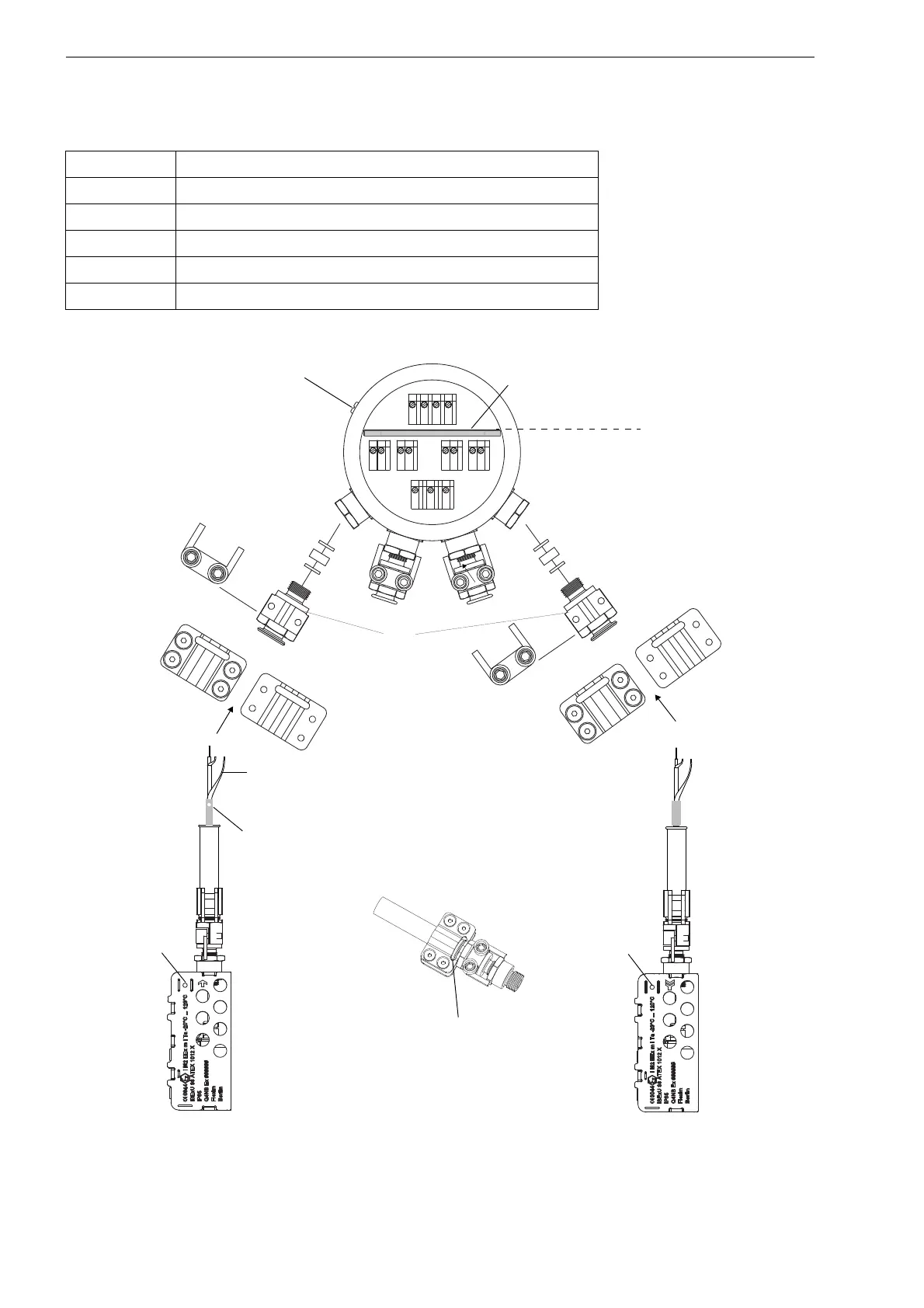

Fig. 8.6: Connection of the transducers for mines to the transmitter
AR
2
Schirm Schirm
3 13 14
AV
AVS
ARS
PE
L-
L+
equipotential bonding
terminal
external shield
marked cable
not intrinsically
safe area
intrinsically safe
area
dividing wall
M16
equipotential
bonding
terminal
cable gland for mines:
The flanges have to be anchored in the
slot of the hose clamp.
equipotential
bonding
terminal
