8 Installation of FLUXUS ADM 8127B FLUXUS ADM 8027, F801, ADM 8127B
UMFLUXUS_F8V4-6-1EN, 2018-10-10 51
It is recommended to run the cables from the measuring point to the transmitter before connecting the transducers to
avoid load on the connectors.
Remove the cable gland for mines M16 for the connection of the transducers (see Fig. 8.2).
Open the cable gland for mines (see Fig. 8.4).
Prepare the transducer cable if necessary.
Remove as little of the insulation as possible when stripping the cable. After the connection has been established, the in-
sulation has to cover the lead up to the terminal.
Push the end of the transducer cable with the stripped leads through the hose flange (2), screwed socket (5), compres-
sion rings (6), sealing ring (7) and gland body (8) into the housing (see Fig. 8.4).
Push the hose flange (2) into the cable protection hose (1).
Screw the gland body (8) into the housing.
Fix the screwed socket (5) and the gland body (8) with the clamp by firmly tightening the screws of the clamp.
Fix the cable protection hose (1) at the cable gland for mines with the hose clamp (4) by tightening the screws firmly (see
Fig. 8.4).
Insert the cables via the beveled edges of the dividing wall into the not intrinsically safe area of the connection compart-
ment (see Fig. 8.5).
Connect the leads to the terminals of the transmitter. The stripped twisted end of the external shield that is to be connect-
ed to the terminal has to be as short as possible (see Fig. 8.3, Fig. 8.5 and Tab. 8.1).

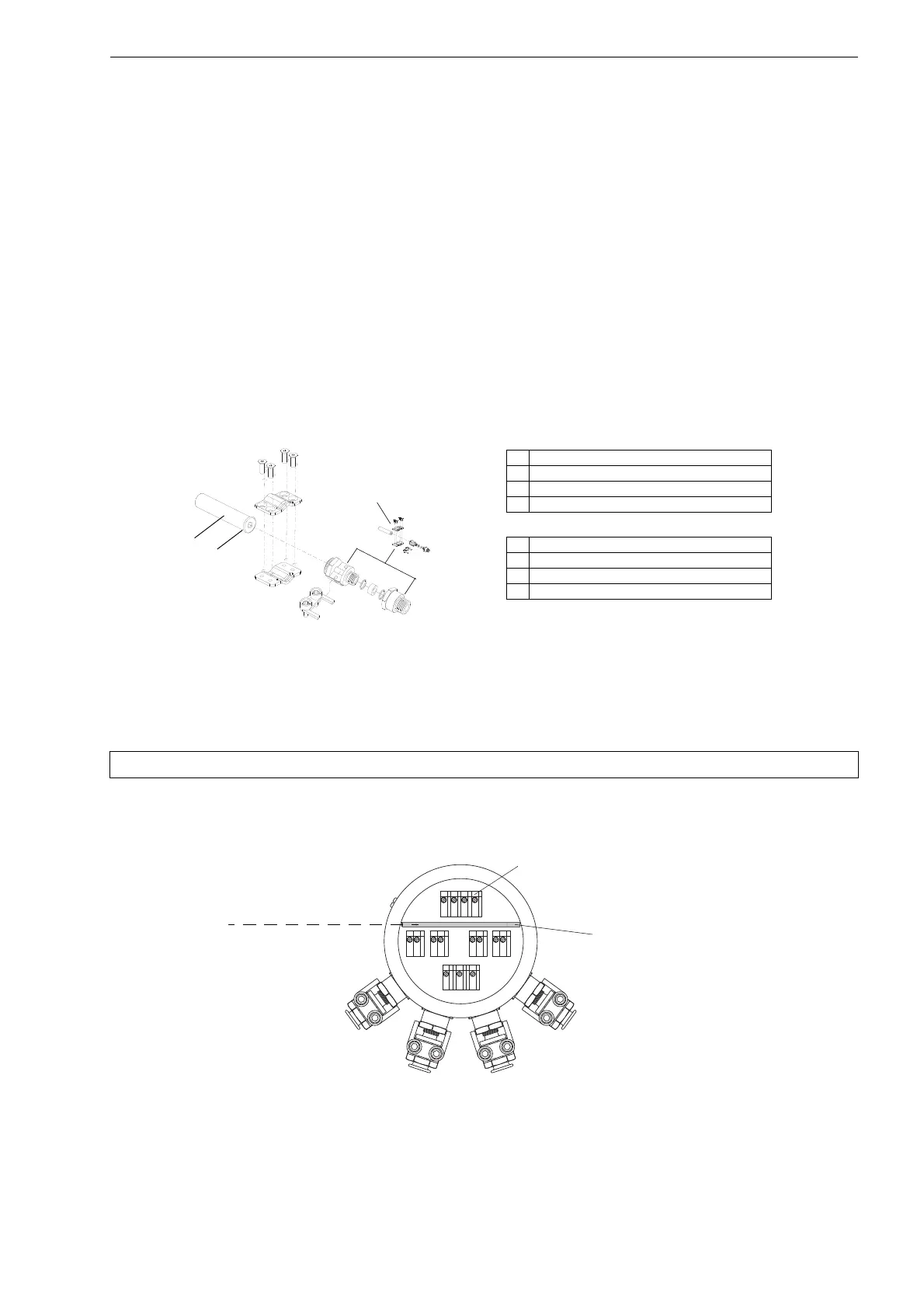

Fig. 8.4: Cable gland for mines M16
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).
Fig. 8.5: Terminals for the connection of the transducer for mines
1
3
2
4
4
5
6
7
8
6
1 cable protection hose
2 hose flange
3 screw
4 hose clamp
cable gland for mines consisting of:
5 screwed socket with clamp
6 compression ring
7 sealing ring
8 gland body
cable gland for
mines
AR
2
Schirm
Schirm
3
13
14
AV
AVS
ARS
PE
L-
L+
dividing wall with
beveled edges
not intrinsically
safe area
intrinsically safe
area
transducer for mines
