4 Description of the transmitter
4.1 FLUXUS F808
The transmitter consists of 1 housing (see Fig. 4.1). The command panel is on the front side of the housing. The keys are
operated by a magnetic pen with closed housing.
The terminals for the connection of transducers, outputs and power supply are on the back side of the housing.
4.2 FLUXUS F809
The transmitter consists of 2 housings. The command panel is on the front side of the upper housing. The keys are oper-
ated by a magnetic pen with closed housing.
The terminals for the connection of the transducers are in the lower housing, the terminals for the connection of the out-
puts and the power supply are on the back side of the upper housing (see Fig. 4.2).

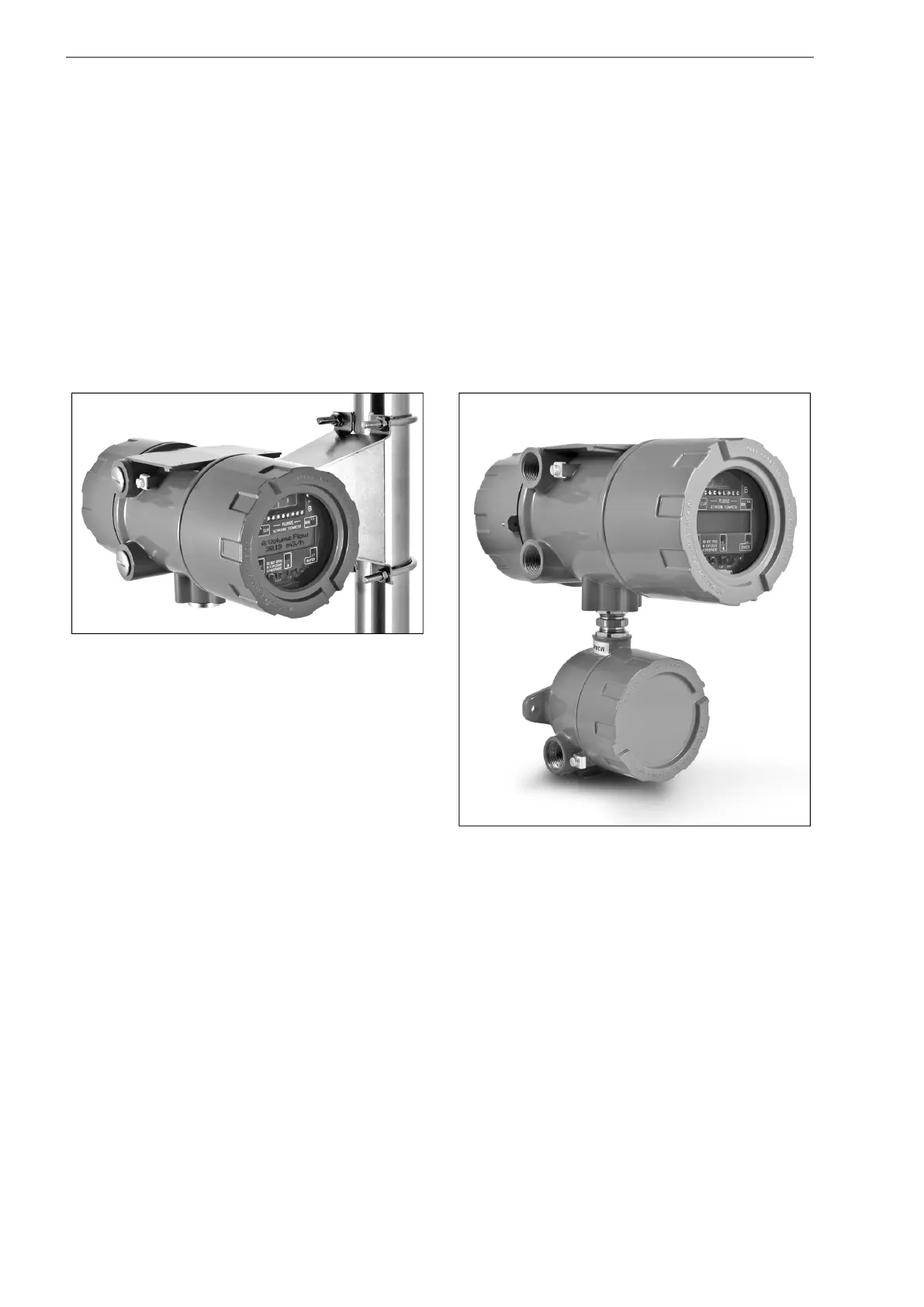

Fig. 4.1: FLUXUS F808
Fig. 4.2: FLUXUS F809
