7 Installation of FLUXUS F809 FLUXUS F808, F809
UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23 69
7Installation of FLUXUS F809
7.7 Power supply
7.7.1 FLUXUS F809**-A1, F809**-A1A
The external protective earth is connected to the equipotential bonding terminal on the housing of the transmitter. It must
always be connected (see Fig. 7.17).
For the connection of the power cable to the transmitter, see box "Cable connection", Fig. 7.17 and Tab. 7.12
.
Attention! According to IEC 61010-1:2010, a switch must be provided near the measuring instrument, easily ac-
cessible and marked as a disconnection device for the measuring instrument.
If the measuring instrument is used in an explosive atmosphere, the switch should be installed out-
side the explosive atmosphere. If this is not possible, the switch should be installed in the least haz-
ardous area.
Attention! The degree of protection of the transmitter will only be guaranteed if the power cable fits firmly and
tightly in the cable gland.
Attention! Observe the "Safety instructions for the use in explosive atmospheres" (see document SIFLUXUS).
Cable connection
• Remove the blind plug from the transmitter for the connection of
the cable (if present).
• Prepare the cable with an M20 cable gland.
• Push the cable through the cap nut, the compression part and the
basic part of the cable gland.
• Insert the cable into the housing of the transmitter.
• Screw the gasket ring side of the basic part into the housing of the
transmitter.
• Fix the cable gland by screwing the cap nut onto the basic part.
• Connect the cable to the terminals of the transmitter.

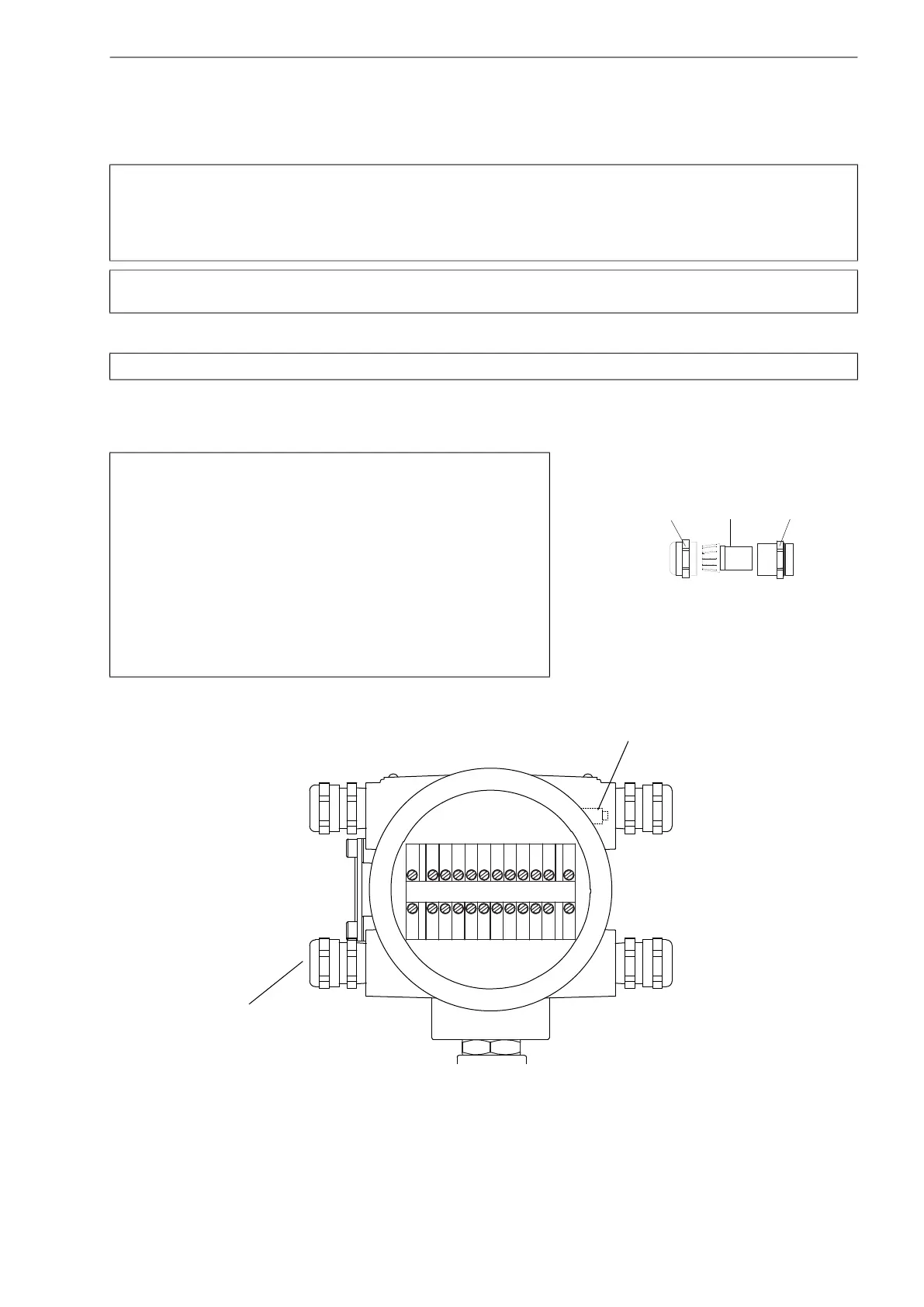

Fig. 7.17: Connection of the power supply
Fig. 7.16: Cable gland
cap nut
compression part
basic part
I1 I1 I2 I2 B1 B1 B2 B2
B4 B4 B3 B3
6(+) 5(-) 8(+) 7(-)
12(+) 11(-) 10(+) 9(-)
SAB
(+)
(-)
LNPE
power supply
equipotential bonding
terminal
