FLUXUS F808, F809 8 Installation of the Transducers
86 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
8Installation of the Transducers
8.4 Transducer mounting fixture Variofix C
When measuring in reflection arrangement, 1 transducer mounting fixture is mounted on the side of the pipe (see Fig.
8.27).
When measuring in diagonal arrangement, 2 transducer mounting fixtures are mounted on the opposite sides of the pipe
(see Fig. 8.28).
In the following, the installation of a transducer mounting fixture is described (transducers in reflection arrangement).
Overview of the mounting steps
• step 1
disassemble the transducer mounting fixture Variofix C
• step 2
mount the tension straps (with or without clasp) and fix the rail to the tension straps with screws
• step 3
insert the transducers into the rail and fix them
• step 4
screw the cover onto the rail

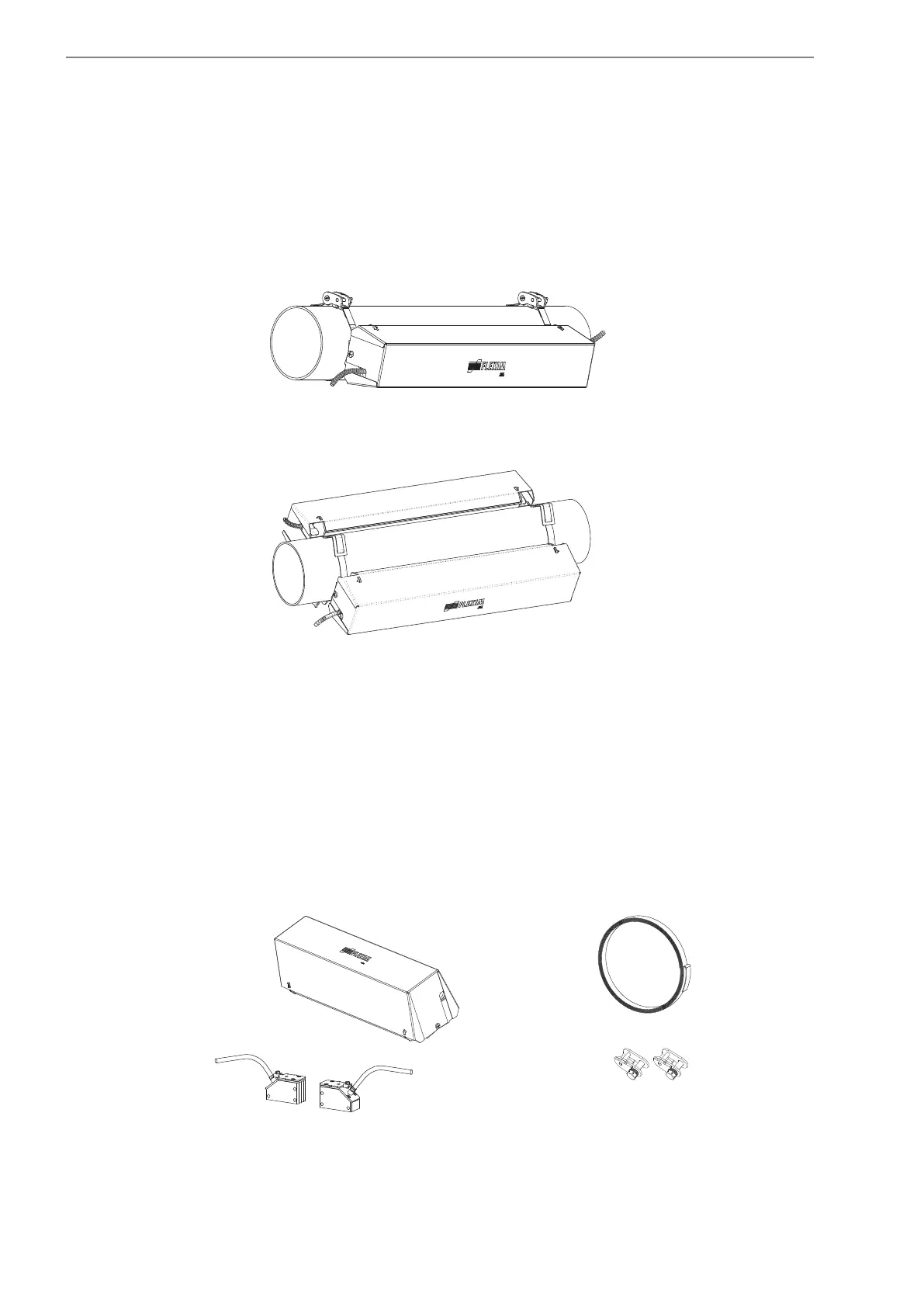

Fig. 8.27: Transducer mounting fixture Variofix C (reflection arrangement)
Fig. 8.28: Transducer mounting fixture Variofix C (diagonal arrangement)
Fig. 8.29: Scope of delivery
1 x Variofix C
1 x transducer pair
1 x tension strap coil
2 x ratchet clasp
(optional)
