7 Installation of FLUXUS F809 FLUXUS F808, F809
UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23 57
7.4 Connection of the transmitter
Attention! Observe the "Safety instructions for the use in explosive atmospheres" (see document SIFLUXUS,
SIFLUXUS_808_FM and SIFLUXUS_1N62).
Attention! The degree of protection of the transmitter will only be ensured if the cable glands are firmly tightened
and the housing covers are tightly screwed to the housing.

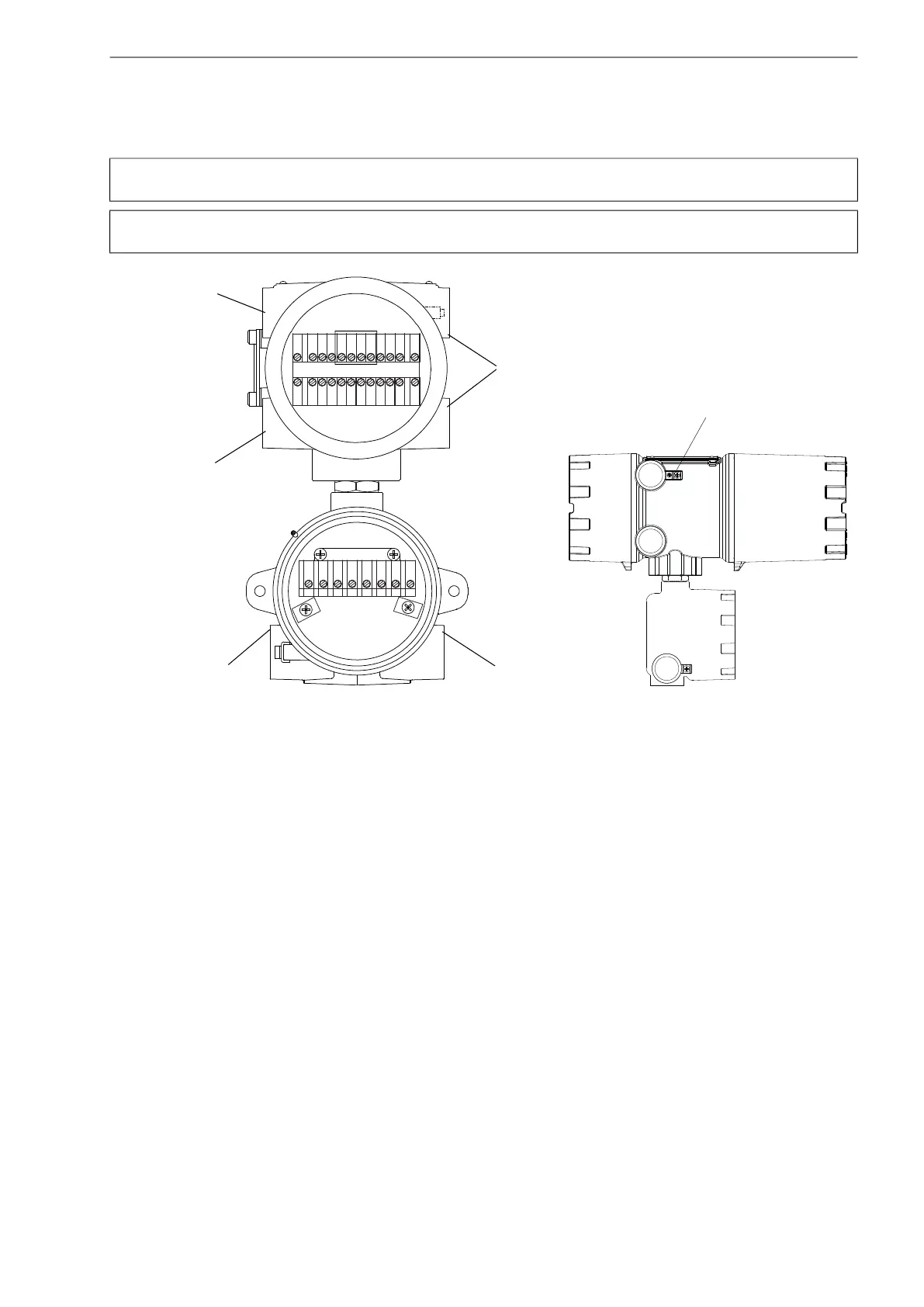

Fig. 7.4: Connections of the transmitter
(+) (-)
LNPE
AR
ARS
AVS
AV B V
BVS
BRS BR
transducers
equipotential
bonding terminal
power supply
outputs
transducers
output
upper housing,
back view
lower housing,
front view
