7.10 Sensor module (SENSPROM)
The sensor module contains important transducer data for the operation of the transmitter with the transducers. It is con--
nected to the connector strips above the display of the transmitter.
If transducers are replaced or added, the sensor module also has to be replaced or added.
Attention! Observe the "Safety instructions for the use in explosive atmospheres" (see document SIFLUXUS,
SIFLUXUS_808_FM and SIFLUXUS_1N62).
Note! The serial number of sensor module and transducer have to be identical. A wrong or incorrectly con-
nected sensor module will lead to incorrect measured values or to a measurement failure.

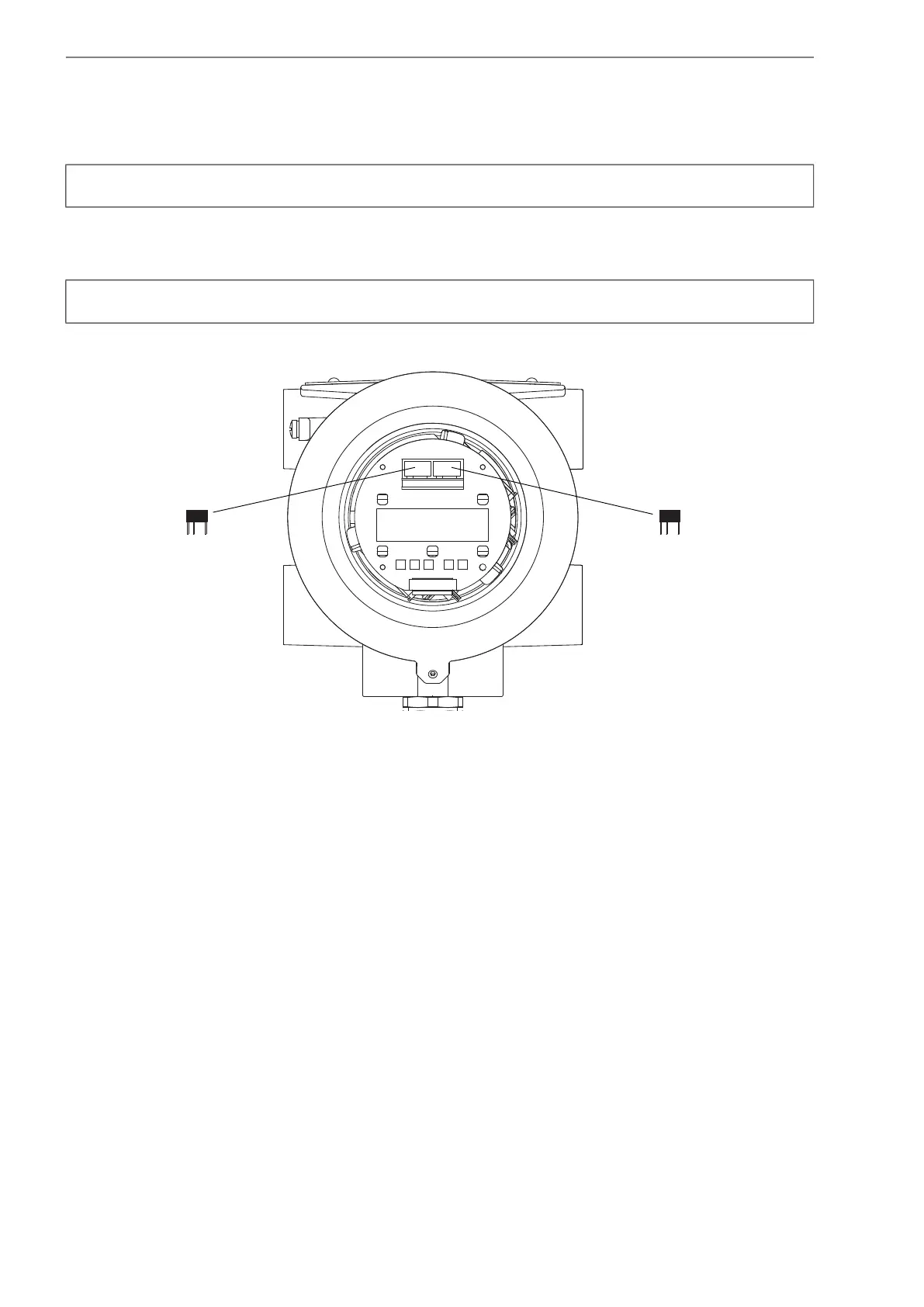

Fig. 7.22: Sensor module
sensor module
measuring channel A
sensor module
measuring channel B
