Flexim FLUXUS F808 A1 Series User Manual

7 Installation of FLUXUS F809 FLUXUS F808, F809
UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23 71
7Installation of FLUXUS F809
7.8 Outputs
For the connection of the output cable to the transmitter, see box "Cable connection", p. 69 and Tab. 7.14 .
Attention! Observe the "Safety instructions for the use in explosive atmospheres" (see document SIFLUXUS,
SIFLUXUS_808_FM and SIFLUXUS_1N62).
Attention! The outputs may only be connected to a low voltage circuit (max. 30 V AC or 42 V DC against earth).

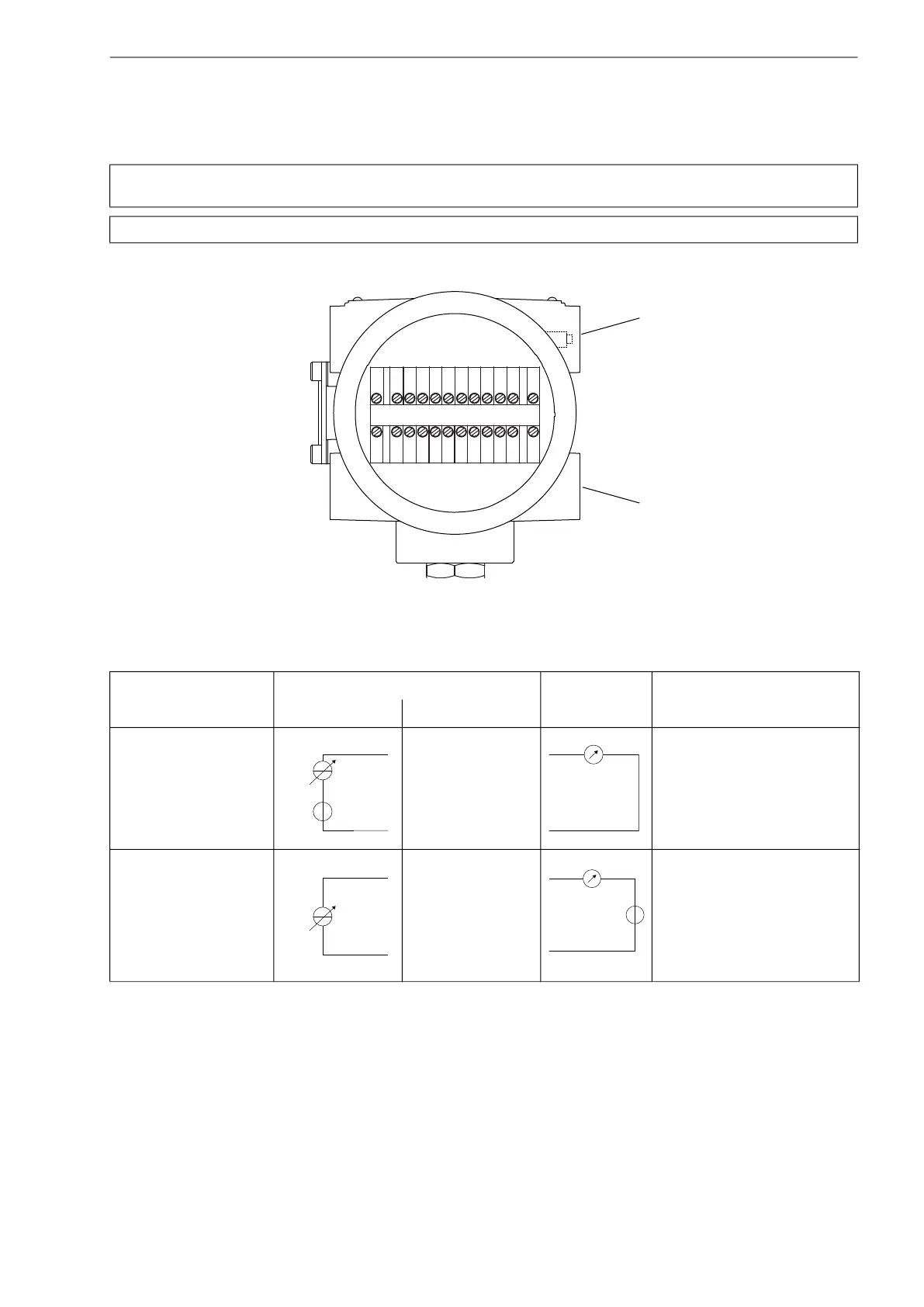

Fig. 7.19: Connection of the outputs
Tab. 7.14: Circuits of the outputs
output transmitter external circuit remark
internal circuit connection
active current loop
F809**-A1
F809**-F1
I1/I2: 2/4 (+)
I1/I2: 1/3 (-)
R
ext
< 500 Ω
passive current loop
F809**-A1
F809**-F1
I1/I2: 1/3 (-)
I1/I2: 2/4 (+)
U
ext
= 4…24 V
U
ext
> 0.021 A · R
ext
[Ω] + 4 V
example:
U
ext
= 12 V
R
ext
≤ 380 Ω
The number, type and connections of the outputs are customized.
R
ext
is the sum of all ohmic resistances in the circuit (e.g. resistance of the conductors, resistance of the amperemeter/voltmeter).
(+) (-)
LNPE
outputs
outputs
+
-
mA
+
-
mA
U
ext
-
+
