FLUXUS F808, F809 8 Installation of the Transducers
78 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
8Installation of the Transducers
8.3 Transducer mounting fixture Variofix L (PermaRail)
When measuring in reflection arrangement, the transducer mounting fixtures are mounted on the same side of the pipe
(see Fig. 8.2).
When measuring in diagonal arrangement, the transducer mounting fixtures are mounted on the opposite sides of the pipe
(see Fig. 8.3).
In the following, the installation of 2 transducer mounting fixtures in reflection arrangement is described (one transducer
mounting fixture for each transducer).
Overview of the mounting steps
• step 1
disassemble the transducer mounting fixture Variofix L
• step 2
fix the clasps to the tension straps
• step 3
fix one tension strap to the pipe
• step 4
screw the rail to the tension strap and fix it with the second tension strap
• step 5
insert the transducer in the cover, screw the cover with the transducer to the rail
If the transducer distance is small and when measuring in reflection arrangement, only one transducer mounting fixture
has to be mounted (see Tab. 8.1).

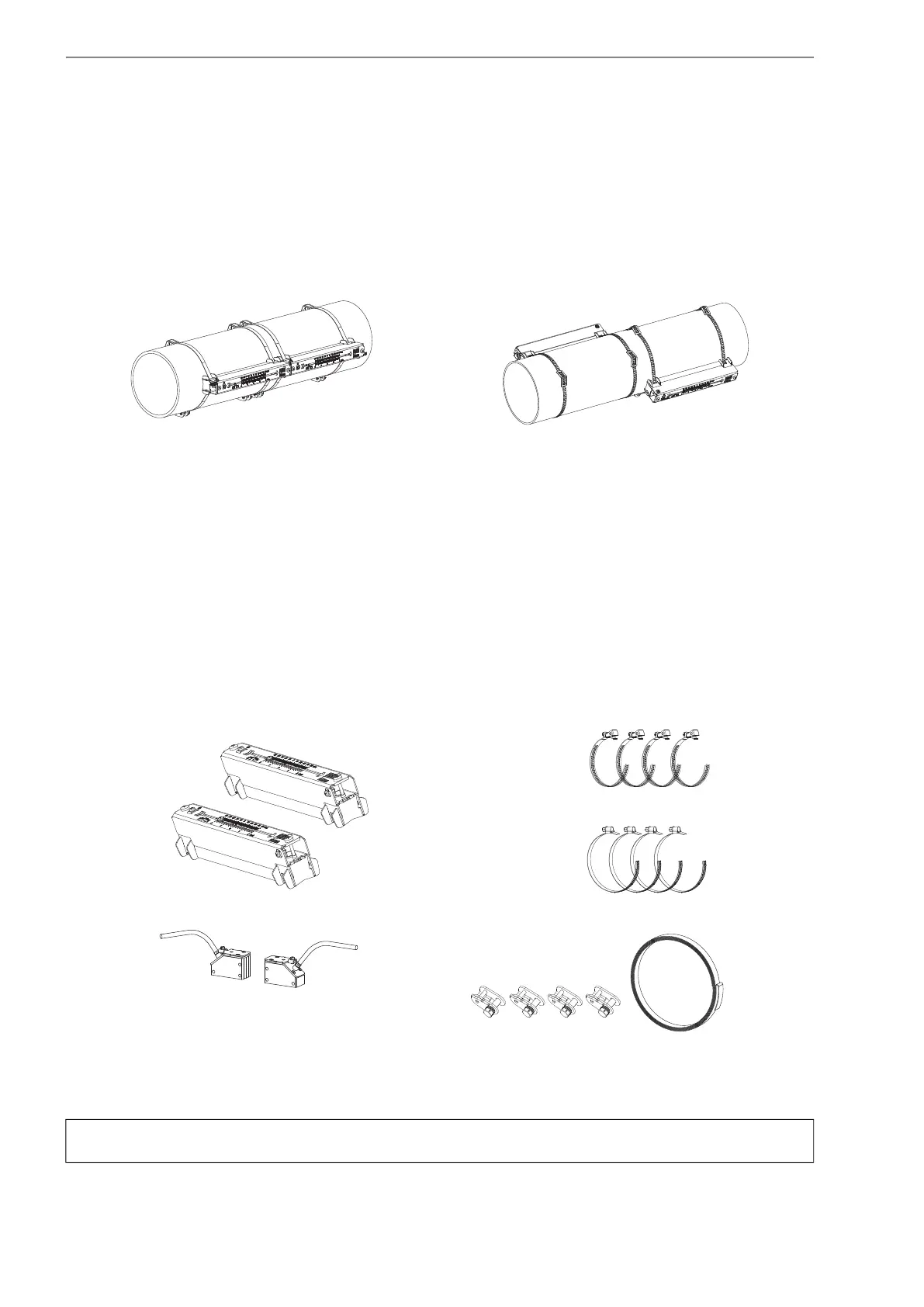

Fig. 8.2: Transducer mounting fixture Variofix L
(reflection arrangement)
Fig. 8.3: Transducer mounting fixture Variofix L
(diagonal arrangement)
Fig. 8.4: Scope of delivery
Note! When measuring in diagonal arrangement with 2 beams in X arrangement (see section 5.3), 4 trans-
ducer mounting fixtures have to be mounted.
2 x Variofix L
4 x band clamp clasp
with tension strap
4 x quick release clasp
with tension strap
4 x ratchet clasp and
tension strap coil
1 x transducer pair
or
or
