6 Installation of FLUXUS F808 FLUXUS F808, F809
UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23 37
6Installation of FLUXUS F808
6.6 Connection of the transducers to the transmitter F808**-F1
It is recommended to run the cables from the measuring point to the transmitter before connecting the transducers to
avoid load on the connectors.
For the connection of the transducer cable to the transmitter see section 6.6.1.
For the connection of the extension cable to the transmitter see section 6.6.2.
For the connection to a junction box, see section 6.6.3.
6.6.1 Connection of the transducer cable to the transmitter
• The transmitter has an opening for the connection of the transducers.
• Remove the blind plug for the connection of the transducer cable (see Fig. 6.13).
• Insert the transducer cable through the cable conduit (approved for FM Class I, Division 1) into the housing.
• Connect the transducer cable to the terminals of the transmitter (see Fig. 6.13 and Tab. 6.8).
6.6.2 Connection of the extension cable to the transmitter
• The extension cable is connected to the transmitter via the transducer connection.
• Remove the blind plug for the connection of the transducer cable (see Fig. 6.13).
• Insert the extension cable through the cable conduit (approved for FM Class I, Division 1) into the housing.
• Prepare the extension cable.
• Connect the extension cable to the terminals of the transmitter (see Fig. 6.14 and Tab. 6.9).
Note!
If transducers are replaced or added, the sensor module also has to be replaced or added (see section 6.11).
Attention! Observe the safety and installation instructions for the use in explosive atmospheres (see documents
SIFLUXUS_808_FM and SIFLUXUS_1N62).

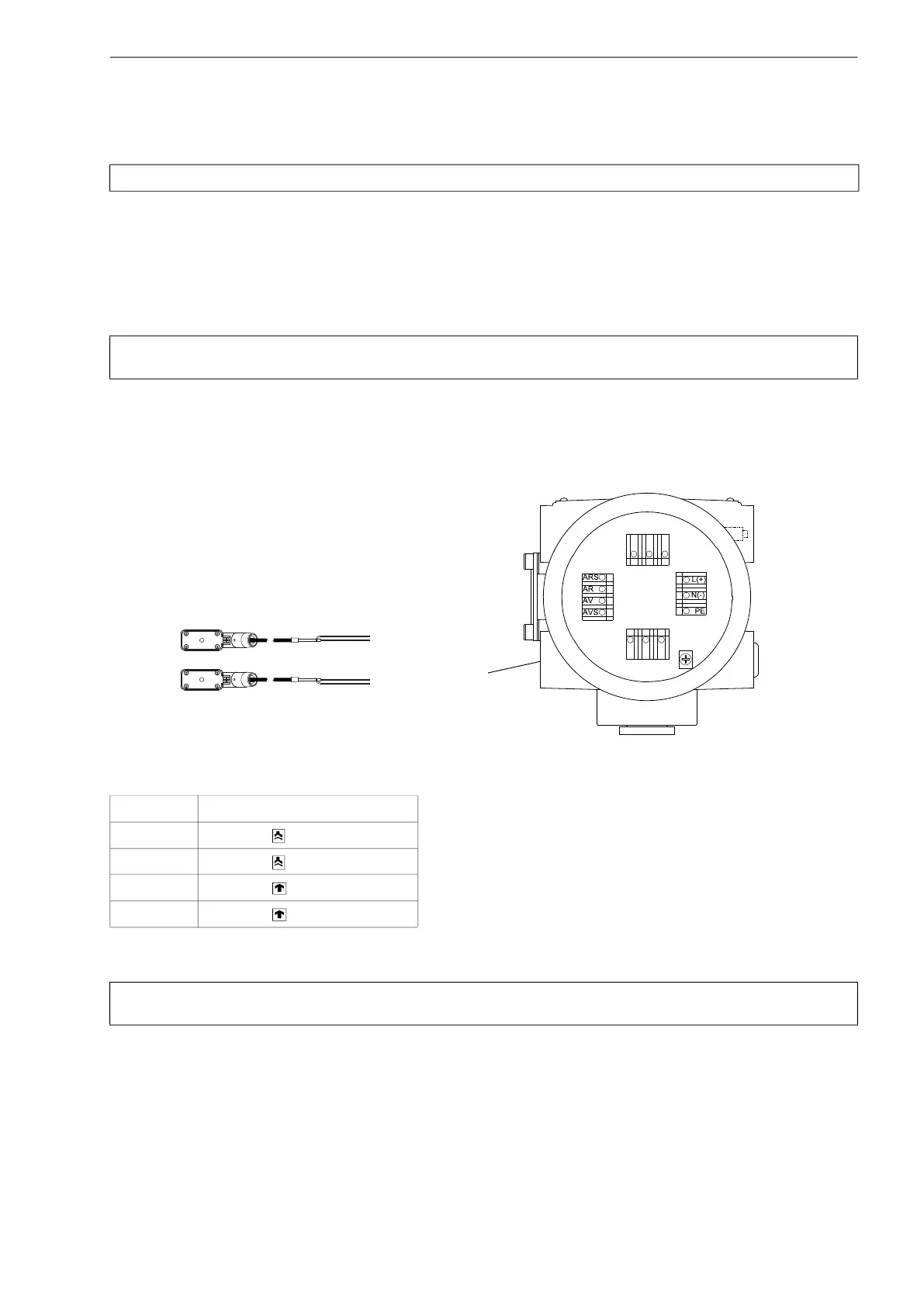

Fig. 6.13: Connection of the transducer cable
Tab. 6.8: Terminal assignment (transmitter, KL 4)
terminal connection (transducer cable)
AR transducer (signal)
ARS transducer (inner shield)
AVS transducer (inner shield)
AV transducer (signal)
Attention! Observe the safety and installation instructions for the use in explosive atmospheres (see documents
SIFLUXUS_808_FM and SIFLUXUS_1N62).
transducers
KL1
KL3
KL4 KL2
transducer cable
