FLUXUS F808, F809 7 Installation of FLUXUS F809
70 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
7.7.2 FLUXUS F809**-F1
The external protective earth is connected to the equipotential bonding terminal on the housing of the transmitter. It must
always be connected (see Fig. 7.18).
For the connection of the power cable to the transmitter, see Fig. 7.18 and Tab. 7.12 .
Tab. 7.12: Connection of the power supply
AC (F809**-A1) DC
terminal connection terminal connection
L phase L+ +
N neutral N- -
PE earth PE earth
Attention! Observe the "Safety instructions for the use in explosive atmospheres" (see document
SIFLUXUS_808_FM and SIFLUXUS_1N62).

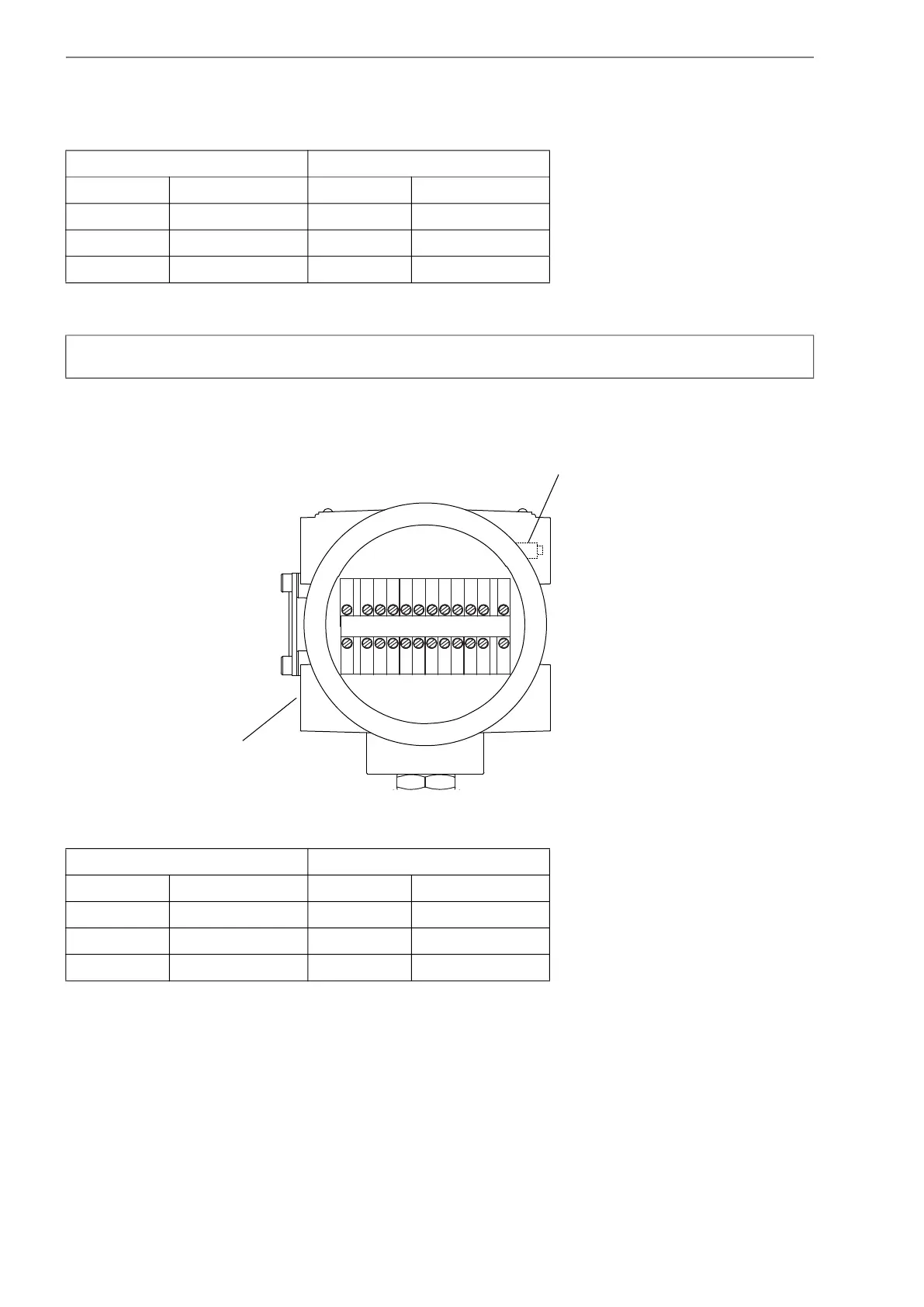

Fig. 7.18: Connection of the power supply
Tab. 7.13: Connection of the power supply (KL2)
AC DC
terminal connection terminal connection
L phase L+ +
N neutral N- -
PE earth PE earth
(+) (-)
LNPE
power supply
equipotential bonding
terminal
