FLUXUS F808, F809 7 Installation of FLUXUS F809
56 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
7.3.2 Pipe Installation
Installation on a 2" pipe
The instrument mounting plate (2) is fixed to the pipe using a shackle (1) (see Fig. 7.3).
• Fix the transmitter to the instrument mounting plate.
• Tighten the nuts (3) to fix the transmitter with the shackle to the pipe.
Installation on a pipe > 2"
The instrument mounting plate (2) is fixed to the pipe using tension straps (see Fig. 7.3).
• Fix the transmitter to the instrument mounting plate.
• Fix the instrument mounting plate (2) to the pipe using tension straps (4) instead of shackles (1).

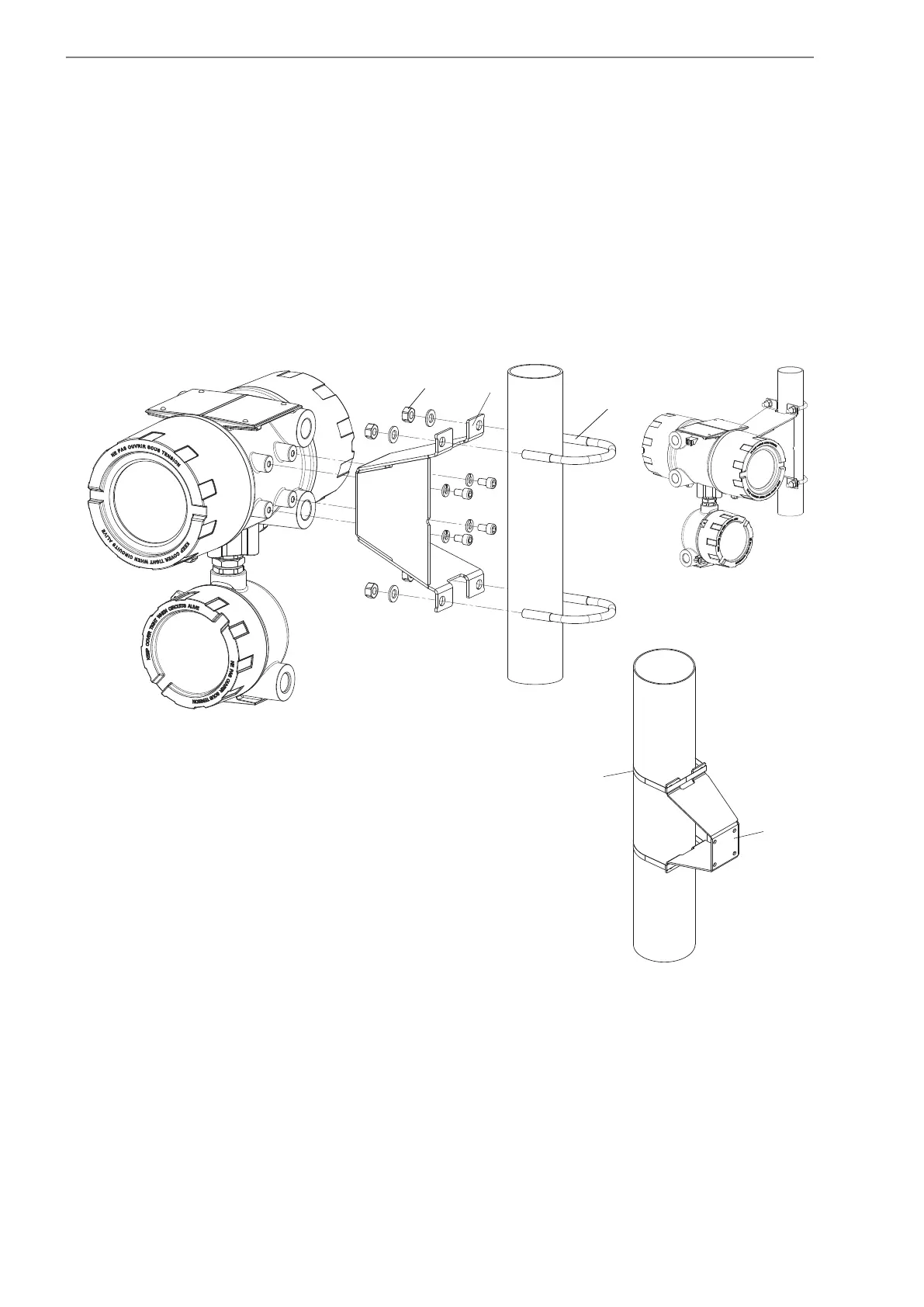

Fig. 7.3: Pipe installation
1
2
3
4
2
