6 Installation of FLUXUS F808 FLUXUS F808, F809
UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23 27
6.3.2 Pipe installation
Installation on a 2" pipe
The instrument mounting plate (2) is fixed to the pipe using a shackle (1) (see Fig. 6.3).
Fix the transmitter to the instrument mounting plate.
Tighten the nuts (3) to fix the transmitter with the shackle to the pipe.
Installation on a pipe > 2"
Fix the transmitter to the instrument mounting plate.
Fix the instrument mounting plate (2) to the pipe using tension straps instead of shackles (1).

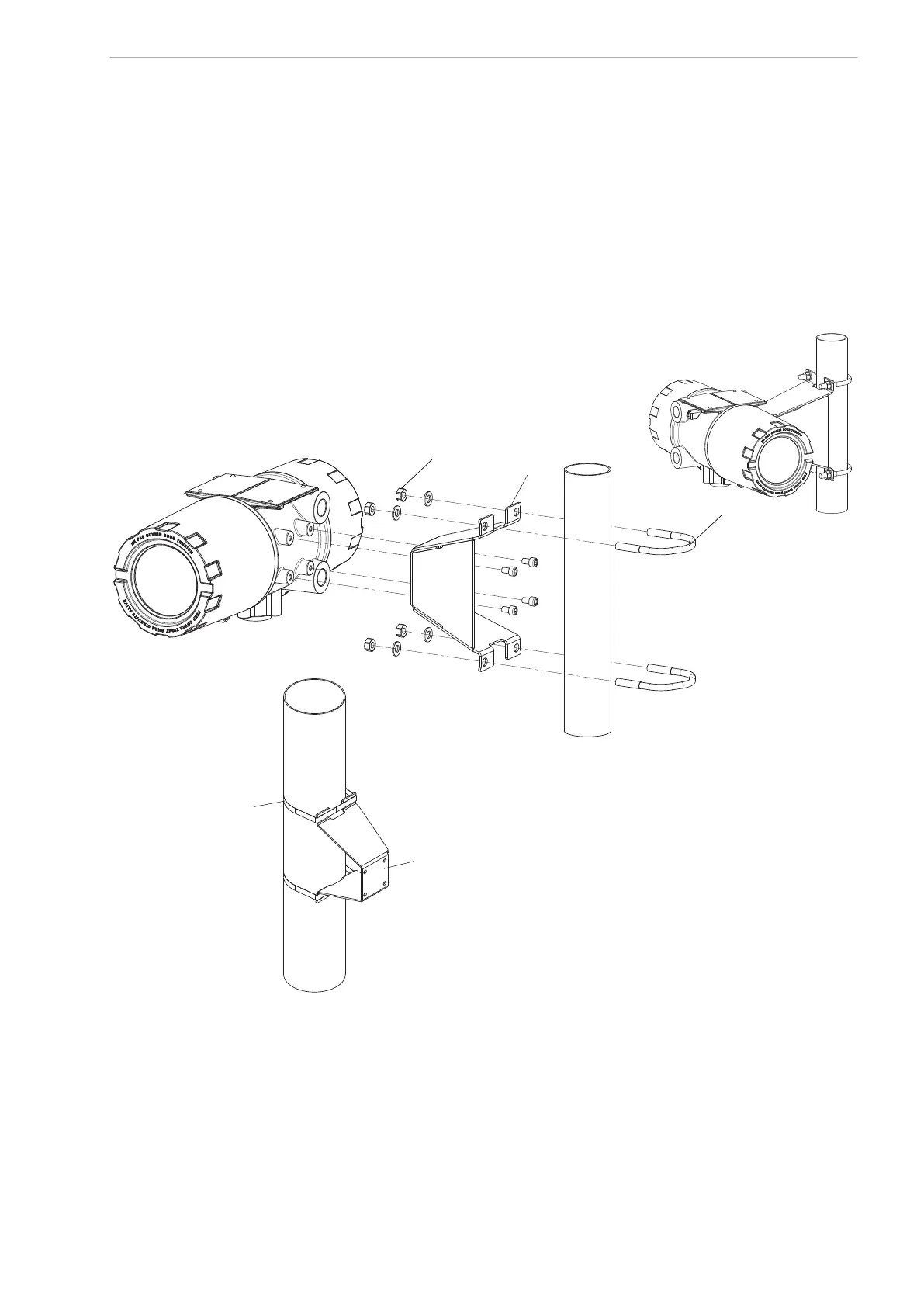

Fig. 6.3: Pipe installation
1
2
3
4
2
