Flexim FLUXUS F808 A1 Series User Manual

FLUXUS F808, F809 6 Installation of FLUXUS F808
46 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23

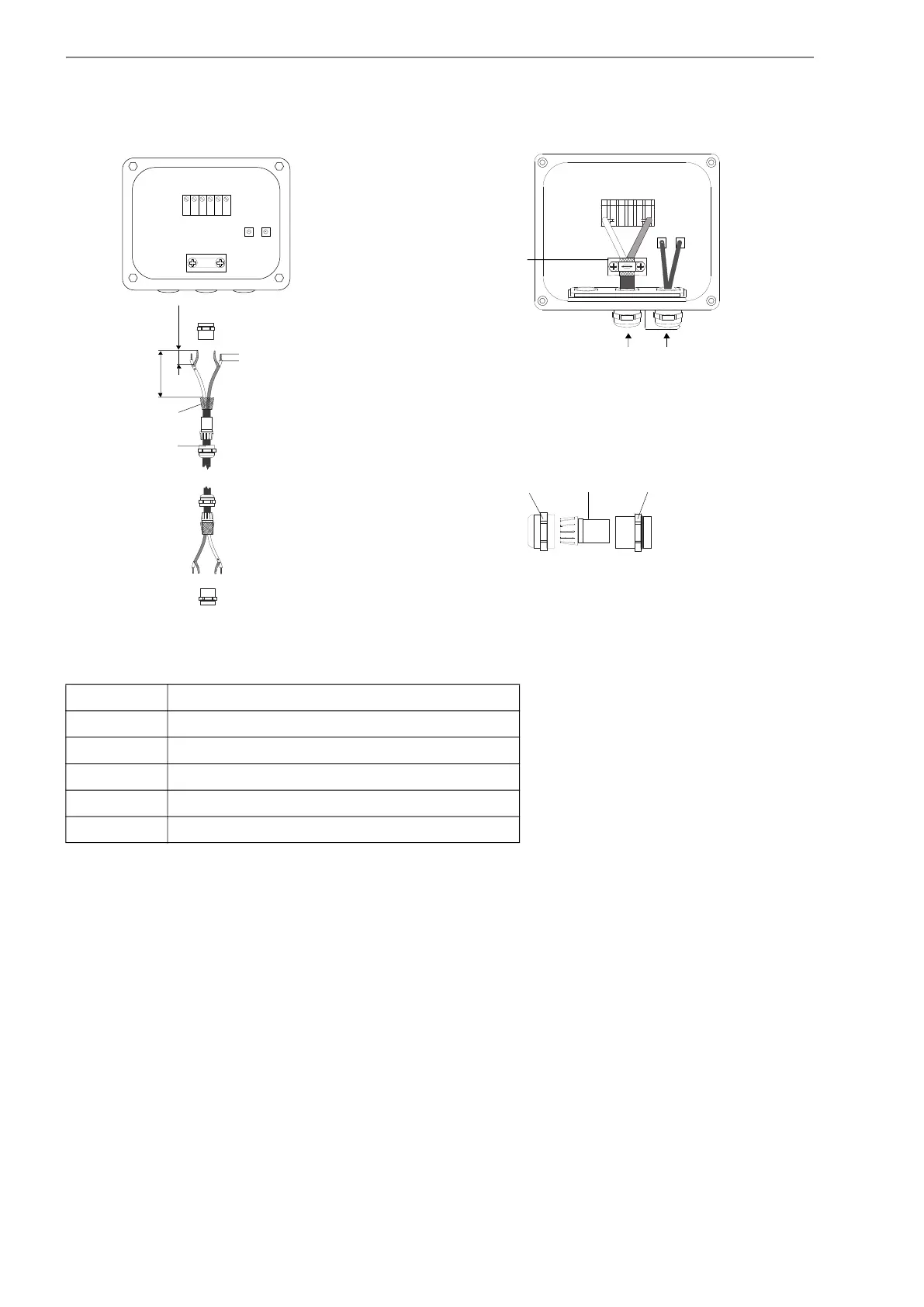

Fig. 6.21: Connection of the extension cable to the junction box
Tab. 6.17: Terminal assignment (junction box JB04, KL2)
terminal connection (extension cable)
TV white or marked cable (core)
TVS white or marked cable (internal shield)
TRS brown cable (internal shield)
TR brown cable (core)
shield terminal external shield
T V
T V S
T G
T
G
T R S
T R
X V X R
cable gland
extension cable
cap nut
compression part basic part
shield terminal
extension cable transducer cable
external shield
X V X R
K L 2
T V T V S
T G
T G
T R S T R
100 mm
20 mm
10 mm
