Flexim FLUXUS F808 A1 Series User Manual

7 Installation of FLUXUS F809 FLUXUS F808, F809
UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23 65

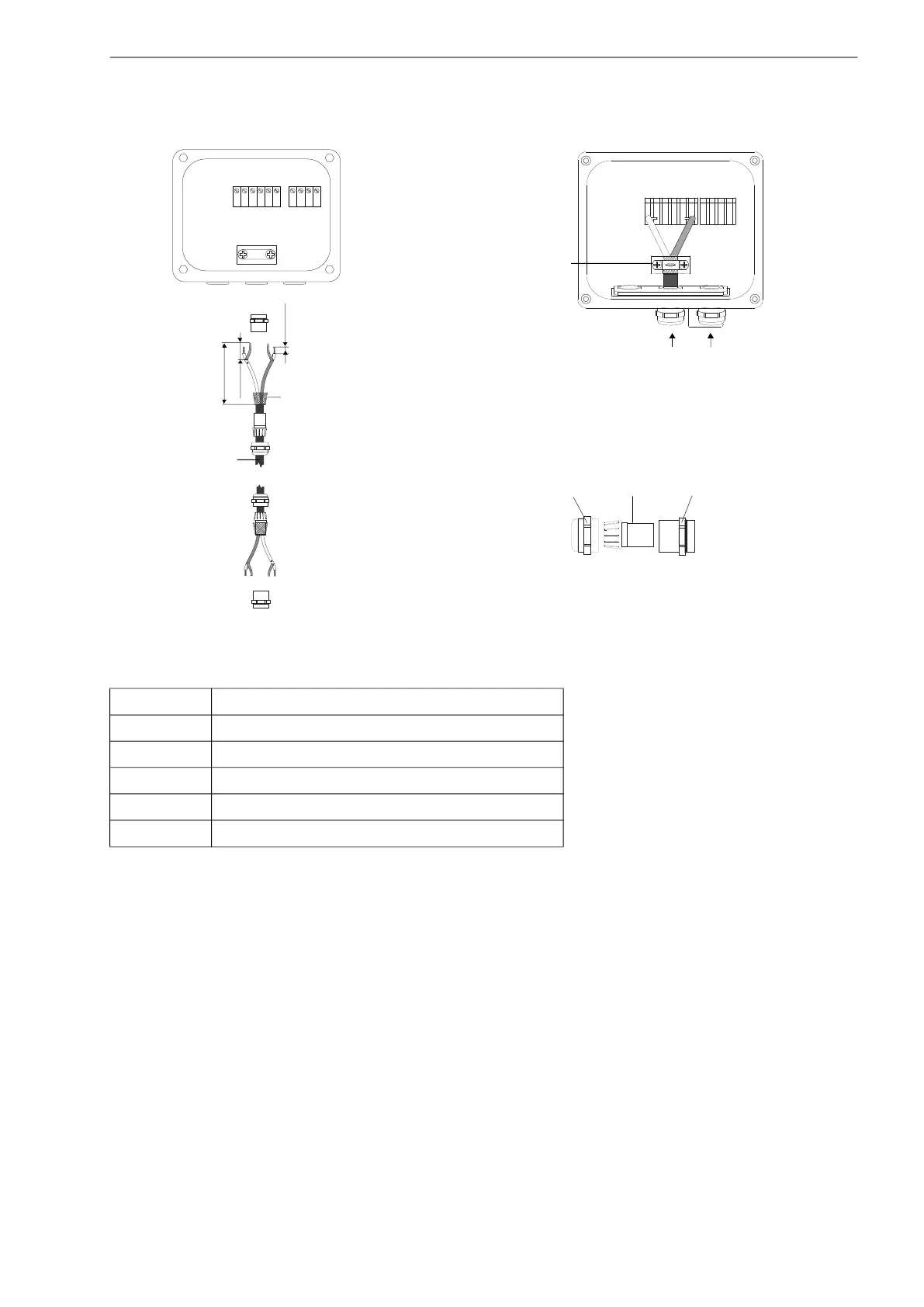

Fig. 7.12: Connection of the extension cable to the junction box
Tab. 7.7: Terminal assignment (junction box, KL2)
terminal connection (extension cable)
TV white or marked cable (core)
TVS white or marked cable (internal shield)
TRS brown cable (internal shield)
TR brown cable (core)
shield terminal external shield
V
V S
R S
R
T V
T V S
T G
T G
T R S
T R
T V
T V S
T G T G
T R S
T R
V
V S
R S
R
K L 2 K L 1
100 mm
20 mm
10 mm
cable gland
extension cable
cap nut
compression part basic part
shield terminal
extension cable transducer cable
external
shield
