FLUXUS F808, F809 8 Installation of the Transducers
92 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
The cover can be removed from the mounted transducer mounting Variofix C fixture as follows:
• Use a lever tool to remove the cover.
• Insert the lever tool in one of the 4 openings of the cover (see Fig. 8.44).
• Press the lever tool against the fixture.
• Bend the cover outwards and release it from the anchoring.
• Repeat the steps for the other 3 openings.
• Remove the cover from the rail.

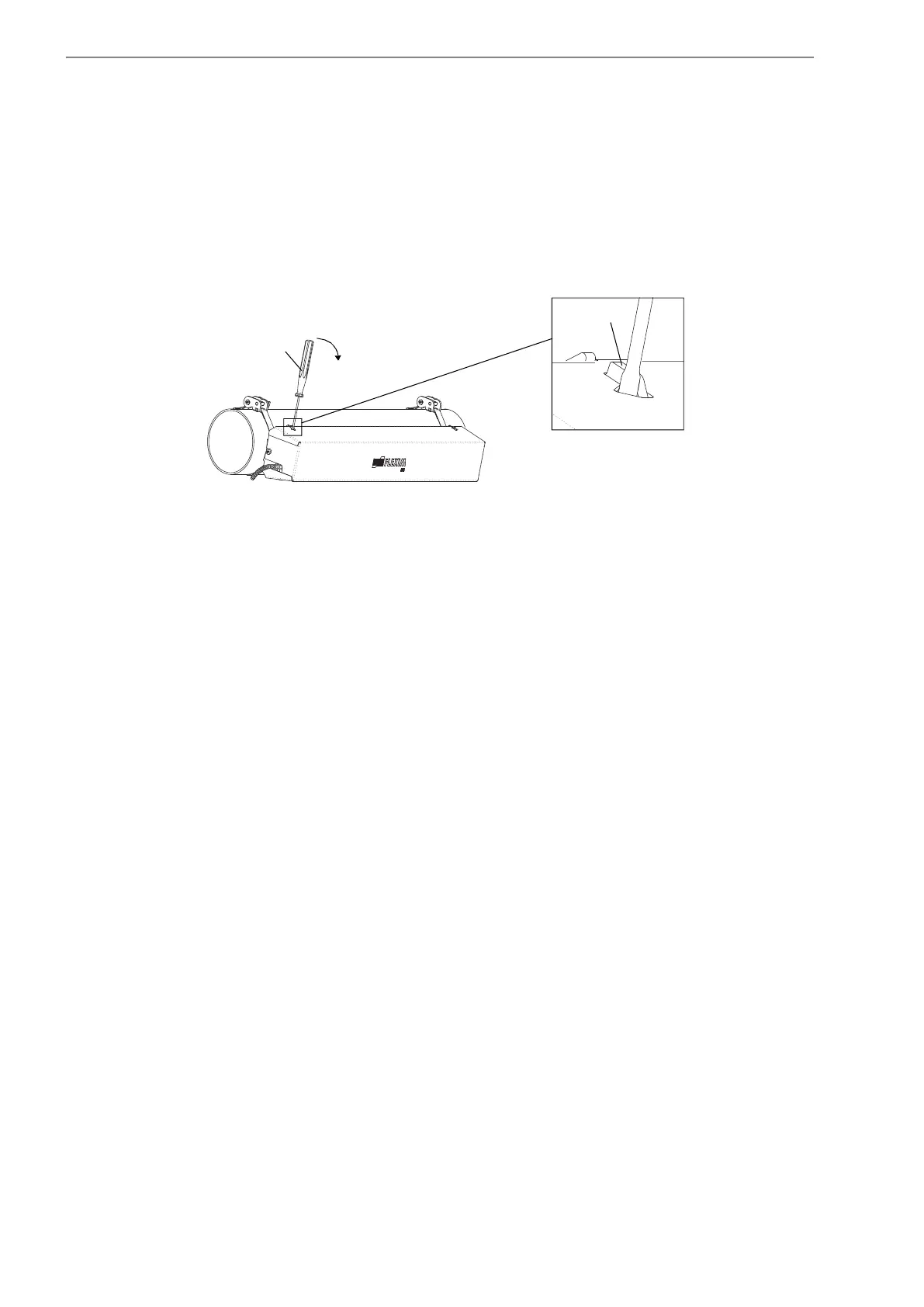

Fig. 8.44: Removal of the cover
lever tool
fixture
