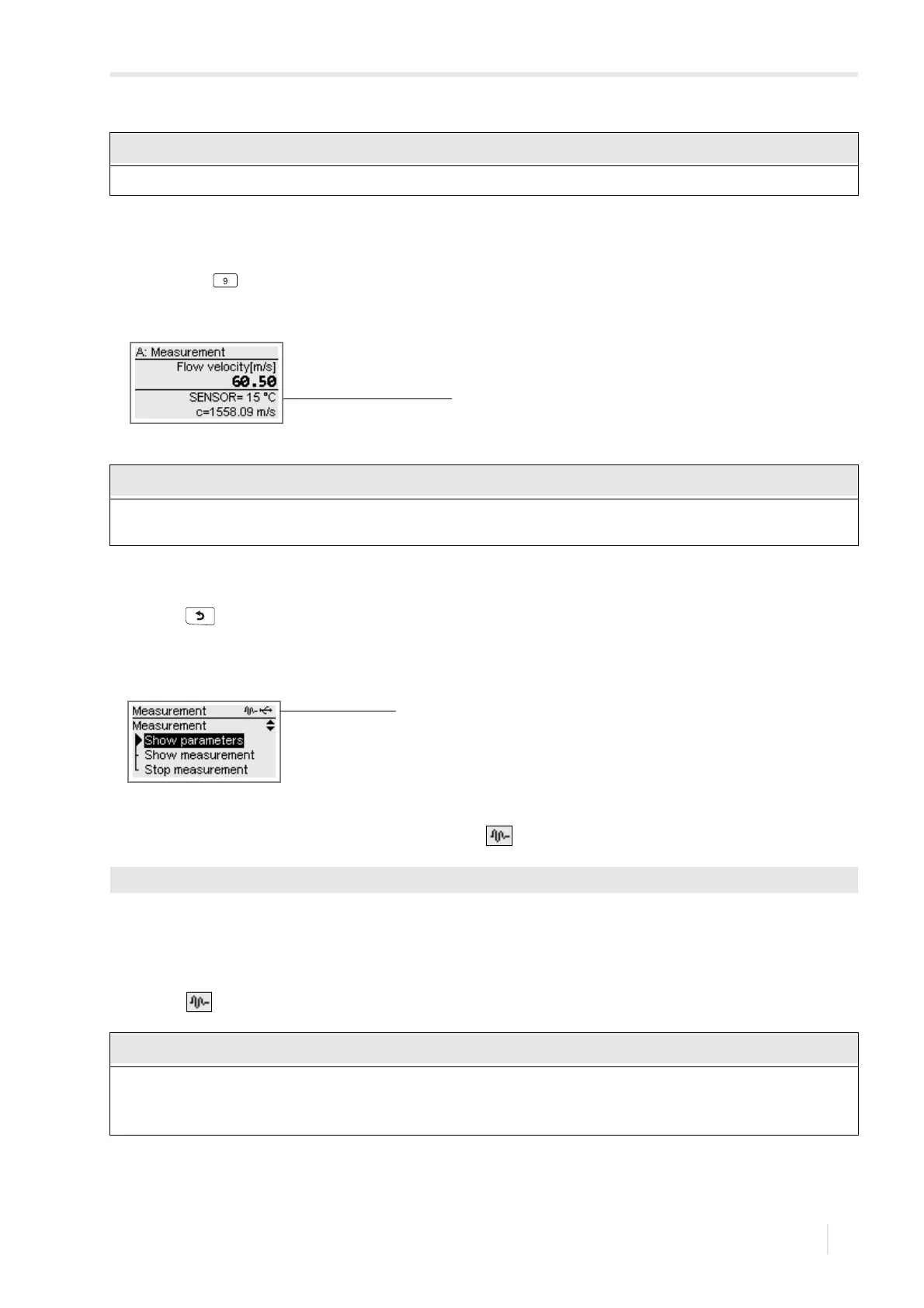

9 Measurement
FLUXUS WD 9.5 Display of parameters
91
UMFLUXUS_WDV1-3EN, 2018-07-16
Transducer temperature
If the transmitter is operating in the SuperUser or SuperUser ext. mode, the transducer temperature can be displayed
during the measurement.
By pressing key during the measurement, it is possible to scroll to the transducer temperature display.
9.5 Display of parameters
The parameters can be displayed during the measurement.
Press key during the measurement.
The following display appears:
The measurement is running in the background. The symbol is displayed in the status indication, see Fig. 9.6.
•Select Show parameters in the scroll list.
Press ENTER.
The program branch Measurement is displayed.
Select a program branch to display the parameters.
The symbol remains visible in all menus. All parameters and settings can be displayed.
Notice!
Never change the transducer distance during the measurement.
Fig. 9.5: Display of the transducer temperature
1 transducer temperature
Notice!
If the compliance of the specified transducer temperature has to be monitored, an event trigger can be set on the
temperature value.
Fig. 9.6: Scroll list in the program branch Measurement
1 status indication
Measurement\Show parameters
Notice!
The parameters cannot be changed during the measurement. When attempting to change the parameters, the mes-
sage Read-only mode will be displayed.
The measurement has to be stopped in order to change the parameters.
1
1
