Operation
Operators manual 29
FDS 400-301

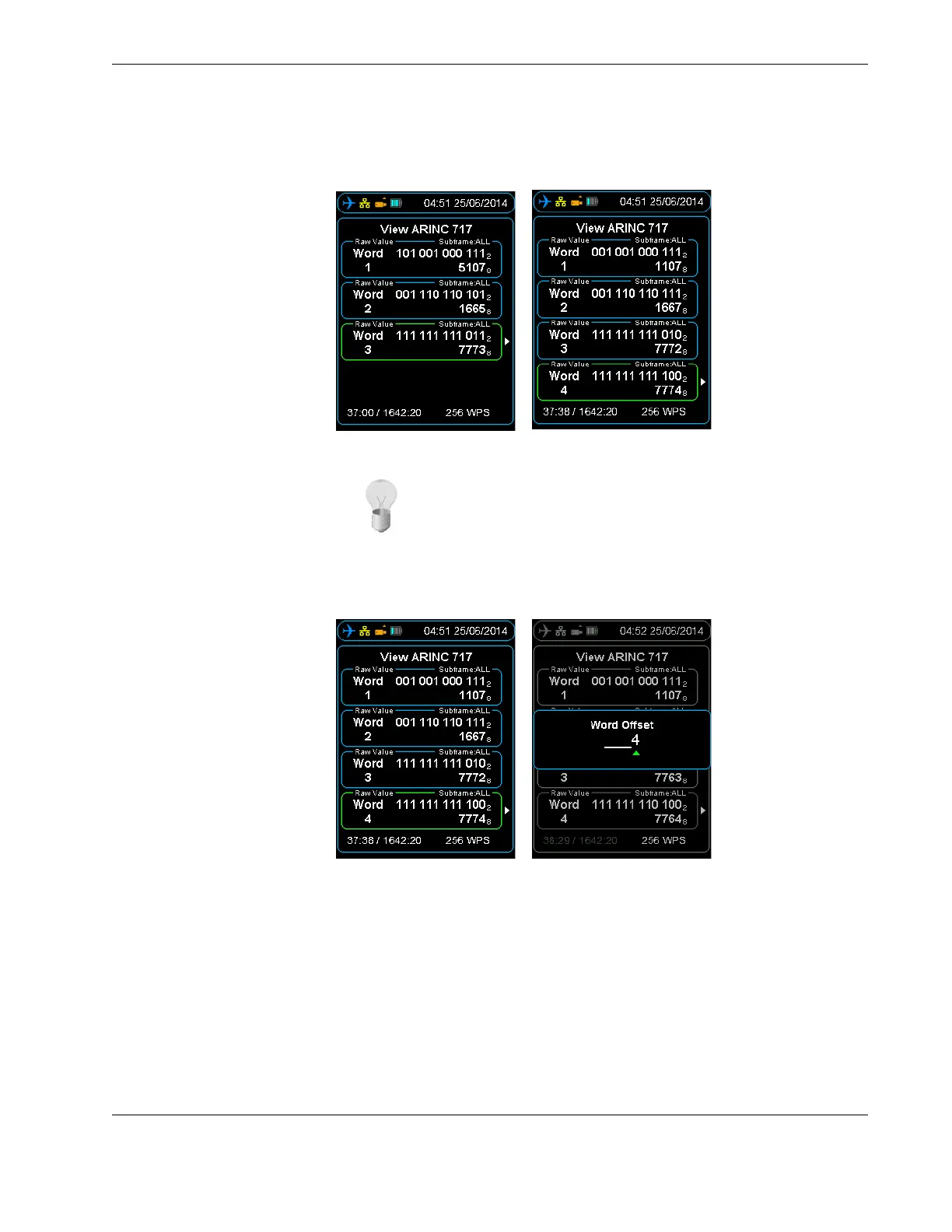

Figure 18.0 Multiple live data view
Figure 19.0 Word offset adjust
4.5 Viewing live flight
data in engineering
units
To view the live flight data in Engineering Units (EU Mode), you must associate an Aircraft
Definition file with an aircraft. The Aircraft Definition file is exported from STARS with the
extension .sdf. You will need to transfer this file to the HHMPI either through a direct USB
Tip Word Offset can be adjusted by the following:
Main Menu > Live Data View > View Live FDR Data > View ARINC 717
Data > Up | Down | Left | Right
