FA2100, FA2200 and FA2300 Interface Supplement
50 Operators manual
Handheld Multi-Purpose Interface (HHMPI)
8.11 Audio Operations The FA5000/FA5001 audio can be both monitored in real time, and also play back previ-
ously recorded data. To listen to audio, plug headphones into the audio jack on the bot-
tom of the HHMPI, see Figure 3.0, ”HHMPI bottom view”, on page 7.
Press the up and down buttons to select which channel you want to listen to. Shortcut
button 2 increases the volume and shortcut button 3 decreases the volume. In playback
mode, the left and right buttons rewind or fast forward the current playback position.
See Figure 38.0, ”CVR Live Audio volume control”, on page 50.

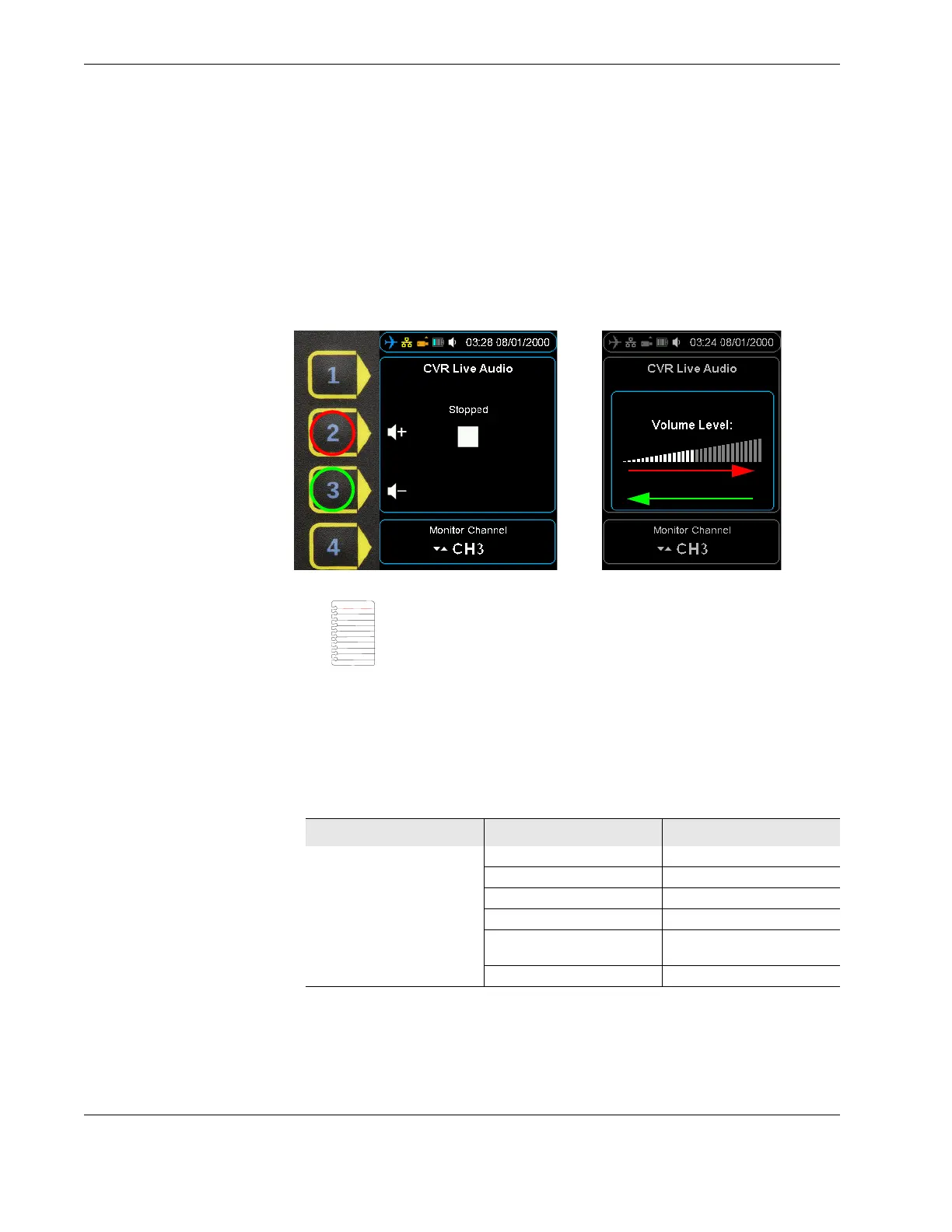

Figure 38.0 CVR Live Audio volume control
8.12 Live Data View Real time ARINC-717 data can be monitored from the FA2100. See Section 4.4, ”Viewing
live flight data” on page 26.
8.13 Menu Tree The following menu items are enabled on connection to a FA5000/FA5001 recorder.
Note The CVFDR must be configured appropriately for playback,
that is, not currently recording. Refer to the component maintenance
manual for instructions.
Table 9.0 Additional menu items for FA2100 CVFDR
Main Menu Menu Level 1 Menu Level 2
Download Operations
(Section 4.3, ”Downloading
flight data” on page 23)
FDR All
FDR Since Last
FDR Mark
FDR Time
CVR All CVR Decompression (OK/Can-
cel)
CVR Time
