10.4 Profibus DP
In Profibus DPV1 interface, baud rate is detected automatically. Supported baud rates are 9.6 kbps, 19.2 kbps, 45.45 kbps,
93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps and 12 Mbps. No ‘baud rate’ instance exists. Refer to
Profibus parameters, sub-block 19-,
GSD file is available on internet www.flintec.com.
There are two LEDs near the Profibus connector;
(A) Operation mode LED
State
Indication
Comment
Off
Not online /No power
Check power and cable
Green
On-line, data exchange
-
Flashing Green
On-line, clear
-
Flashing Red
(2 flash)
PROFIBUS configuration error
Check GSD file configuration.
(B) Status LED
State
Indication
Comment
Off
Not power or not initialized
No power or Profibus module is in
initialization state
Green
Initialized
Flashing Green
Initialized, diagnostic event(s)
present
Diagnostic is active
Red
Exception error
There is an exception error
Data Format
Data format of weight value can be programmable for Floating point (IEEE 754) or Integer.
Refer to parameter 191.

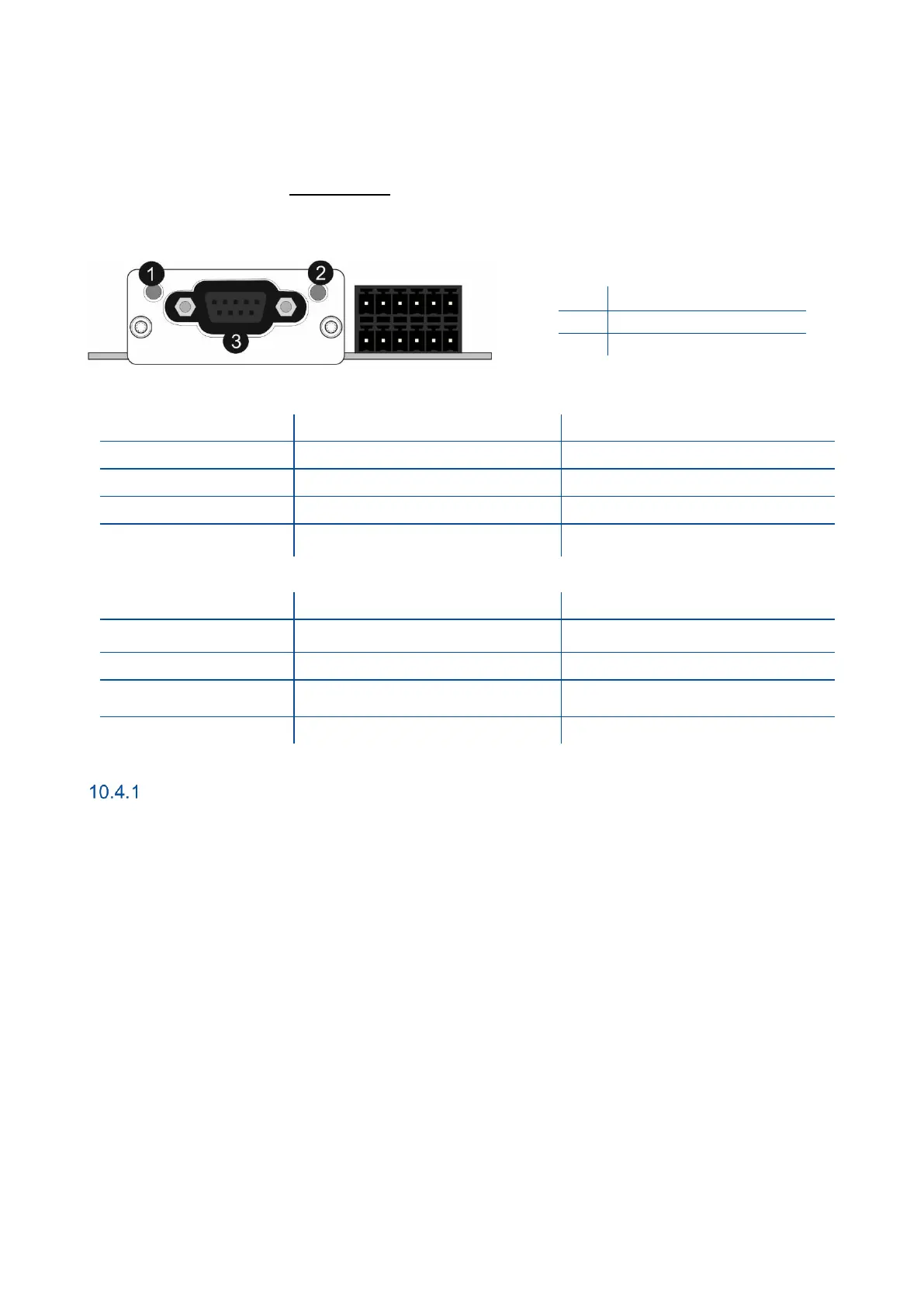

1
(A) Operation mode LED
2
(B) Status LED
3
Profibus Connector
